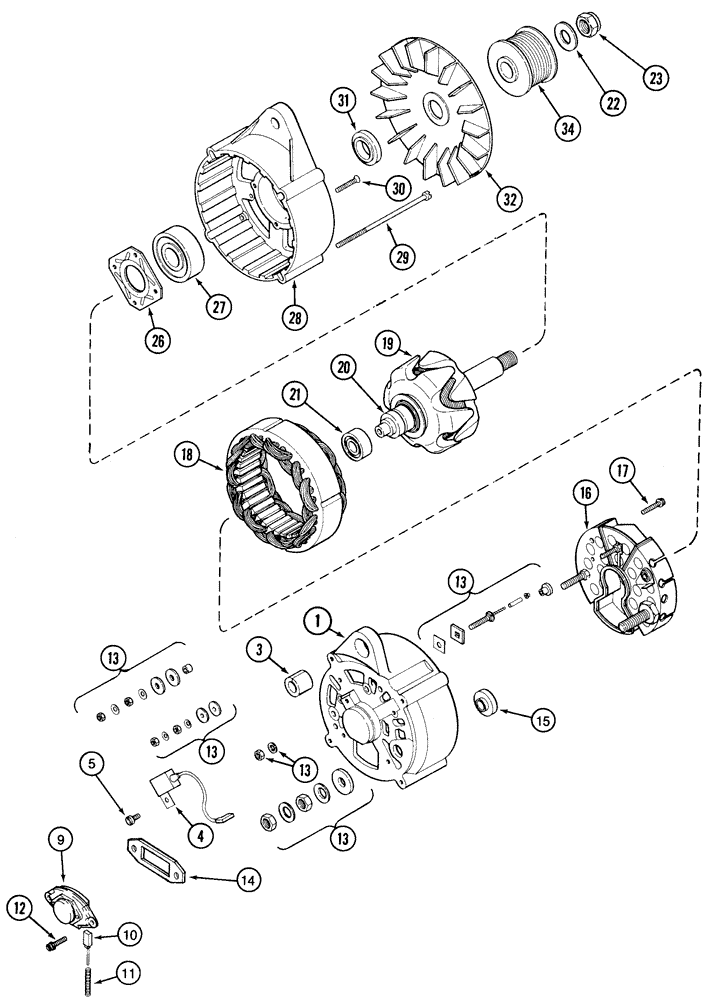

Запчасти Case IH 2155 (4-36) - ALTERNATOR ASSEMBLY (06) - ELECTRICAL SYSTEMS

125849A1

ALTERNATOR,12V, 135A, W/ Pulley

ALTERNATOR ASSEMBLY - engine, 135 ampere, Robert Bosch No. 0 120 468 055, type N114V-25/135A

1шт.

125849A1R

REMAN-ALTERNATOR

Remanufactured ALTERNATOR, 12 volt 135 ampere

1шт.

125849A1C

CORE-ALTERNATOR

Return Part Number

1шт.

125849A1GV

ALTERNATOR

Value, 135 Amp

1шт.

91448C2

ALTERNATOR

ALTERNATOR N114V-40/110A

1шт.

91448C2R

REMAN-ALTERNATOR

Reman for New PN 91448C2

1шт.

91448C2C

CORE-ALTERNATOR

Return Part Number

1шт.

91448C2GV

ALTERNATOR

Value, 12 volt 110 A

1шт.

1

1964731C1

HOUSING

HOUSING - collector ring end

1шт.

3

1964737C1

BUSHING,13.5mm ID x 20mm OD x 20mm L

BUSHING - expansion

1шт.

4

3079389R1

CAPACITOR

CAPACITOR - suppression

1шт.

5

1964969C1

SCREW

SCREW - special, capacitor retaining

1шт.

9

111899A1

REGULATOR

REGULATOR - voltage

1шт.

10

3079394R91

BRUSH SET

SET - brush

1шт.

11

1964734C1

SPRING

SPRING - compression

2шт.

12

1530431C1

BOLT,Hex, 1 1/4" - 7 x 7", Gr 8, W/ Wshr

BOLT - with washer, regulator retaining

2шт.

13

1964738C1

REPAIR KIT

KIT, REPAIR, Terminal hardware

1шт.

14

140546A1

GASKET

GASKET - regulator

1шт.

15

140545A1

RING

RING - fitting

1шт.

16

1964732C1

RECTIFIER

RECTIFIER - alternator

1шт.

17

A187504

SCREW

BOLT - hex flange, special, rectifier bridge retaining

2шт.

18

140548A1

STATOR,12V, 135A

STATOR - alternator

1шт.

19

1964728C1

ROTOR

ROTOR - alternator

1шт.

20

140543A1

RING

RING - collector

1шт.

21

140544A1

BALL BEARING

BEARING - ball

1шт.

22

495-51066

WASHER,9/16" x 1 1/4" x .1"

WASHER - flat, 21/32 x 1-1/4 x 3/32 inch

1шт.

23

231-46110

LOCK NUT,5/8"-18, GB

NUT - hex, self-locking, 5/8 inch NF

1шт.

26

1964727C1

PLATE

PLATE - bearing retaining

1шт.

27

1964726C1

BALL BEARING,22.2mm ID x 56mm OD x 21mm W

BEARING - ball

1шт.

28

1964725C1

HOUSING

HOUSING - drive end

1шт.

29

140549A1

SCREW,Oval Hd, M5 x 132mm

BOLT - special, alternator retaining

4шт.

30

140541A1

SCREW,Phil Flat Hd, Csk, M4 x 30mm, Cl 8.8

SCREW - flat head, special

4шт.

31

1964729C1

SPACER

SPACER - ring

1шт.

32

1964736C1

FAN

FAN - alternator

1шт.

34

A189616

PULLEY

PULLEY - alternator

1шт.
