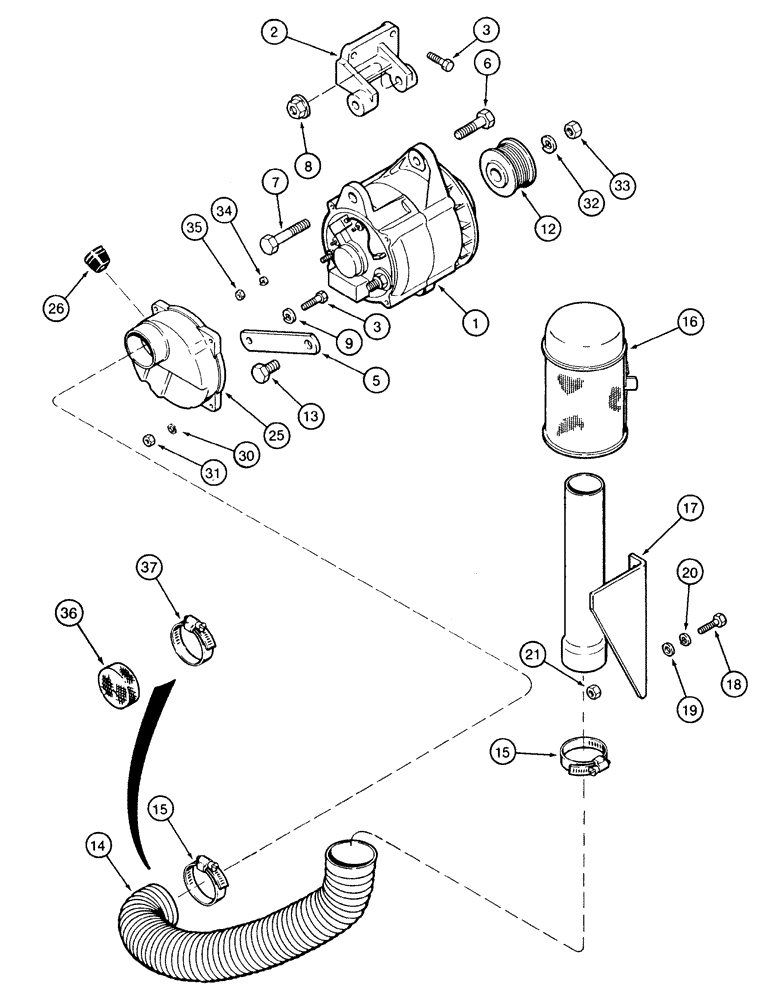

Запчасти Case IH 2155 (4-32) - ALTERNATOR MOUNTING AND FILTER (06) - ELECTRICAL SYSTEMS

1

125849A1

ALTERNATOR,12V, 135A, W/ Pulley

ASSEMBLY - engine, 135 ampere, parts list page 4-37

1шт.

1

125849A1GV

ALTERNATOR

Value, 12 volt 135 ampere

1шт.

2

J918544

SUPPORT

- mounting, alternator

1шт.

3

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

HH, CL 8.8, M8 x 1.25 x 30

1шт.

5

J911485

SUPPORT

BRACE - alternator

1шт.

6

854-12050

BOLT,Hvy Hex, M12 x 50mm, Cl 10.9

1шт.

7

854-12065

BOLT,Hvy Hex, M12 x 65mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 65 mm, class 10.9

1шт.

8

829-2312

FLANGE NUT,M12 x 1.75, Flg, Cl 10

- hex flange, 12 mm - 1.75, class 10

2шт.

9

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

12

A189616

PULLEY

- alternator

1шт.

13

360-820

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

- hex flange, 1/2 NC x 1-1/4 inch, grade 8

1шт.

14

1982288C1

AIR HOSE

HOSE - 20 inch (508 mm) long, cut from 1338157CX bulk hose, see below

1шт.

15

214-1444

HOSE CLAMP,58.6mm - 82.5mm

CLAMP, HOSE, , Adj. #44, 2.31/3.25 Type F Worm

2шт.

16

353411R92

FILTER ASSY

FILTER ASSEMBLY - air, precleaner, alternator

1шт.

17

1338707C1

SUPPORT

BRACKET - alternator

1шт.

18

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

2шт.

19

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

20

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

21

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

25

1338890C1

COVER

- alternator

1шт.

26

1964826C1

GROMMET

- alternator

1шт.

30

892-11005

LOCK WASHER,M5

WASHER, LOCK, M5

4шт.

31

825-1405

NUT,M5, Cl 8

4шт.

32

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

33

425-147

JAM NUT,Jam, 7/16"-14, G5

- hex, jam, 7/16 inch NC

1шт.

34

892-11004

LOCK WASHER,M4

WASHER, LOCK, M4

1шт.

35

825-1404

NUT,M4, Cl 8

1шт.

36

1979627C1

COVER

SCREEN - alternator dust cover

1шт.

Item numbers 36, 1979627C1 screen, and 37, 214-1532 clamp, are used only when a spark arrester muffler is installed on a machine. They are used in place of items 14, 15, 16, 17, 18, 19, 20 and 21.

1шт.

37

214-1532

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm, W/ Liner

Adj. #32, 1.56/2.50 Type F Worm, W/liner

1шт.

Item numbers 36, 1979627C1 screen, and 37, 214-1532 clamp, are used only when a spark arrester muffler is installed on a machine. They are used in place of items 14, 15, 16, 17, 18, 19, 20 and 21.

1шт.

1338157CX

LARGE HOSE

HOSE air, bulk, 300 inch, 7620 mm, long, used for Ref 14

1шт.
