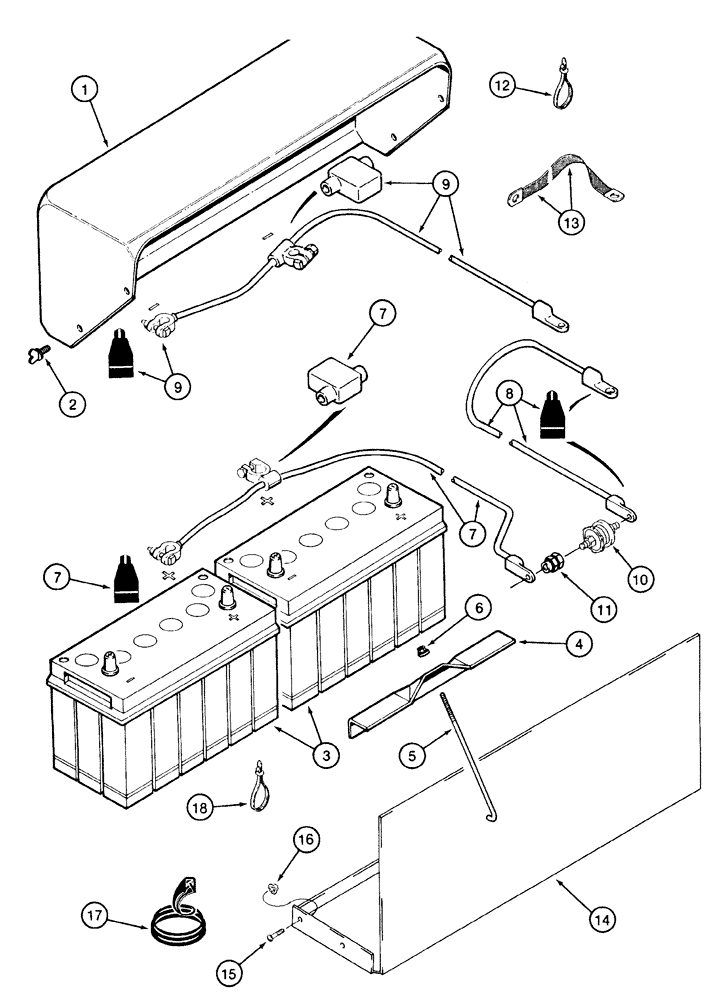

Запчасти Case IH 2155 (4-30) - BATTERY COVER, BATTERY AND CABLES (06) - ELECTRICAL SYSTEMS

1

1338635C2

LID

COVER - battery

1шт.

2

183-135

SCREW

- shoulder wing, 3/8 NC x 3/4 inch

4шт.

3

BMF31E

DRY BATTERY

BATTERY - dry, 12 volt, replaces A180406 battery

2шт.

4

A162337

CLAMP

- hold down

1шт.

5

A147915

BOLT

- hook

1шт.

6

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

7

137636A4

CABLE

- positive, battery to battery to junction block, with two red boots, replaces 137636A2 cable

1шт.

8

137638A1

CABLE

- positive, junction block to starter, with two red boots

1шт.

9

137637A1

CABLE

- negative, battery to battery to ground, with two black boots and conduit

1шт.

10

190158A1

BLOCK

- cable junction, positive cable

1шт.

11

190794A1

NUT

- special, jump start

1шт.

12

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP, CABLE, 3/16" x 7 1/4"

3шт.

13

190567A1

CABLE

- engine ground, 8 inch (203 mm) long

1шт.

14

137291A2

SUPPORT

- battery box bottom, replaces 137291A1 support

1шт.

15

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

4шт.

16

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

17

1989613C1

SEAL

TRIM - edge, 20-1/2 inch (521 mm) long, cut from 1330108CX bulk trim, battery box support, see below

1шт.

18

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

1330108CX

SEAL,304.8mm L

TRIM - edge, bulk, 600 inch (15240 mm) long

1шт.
