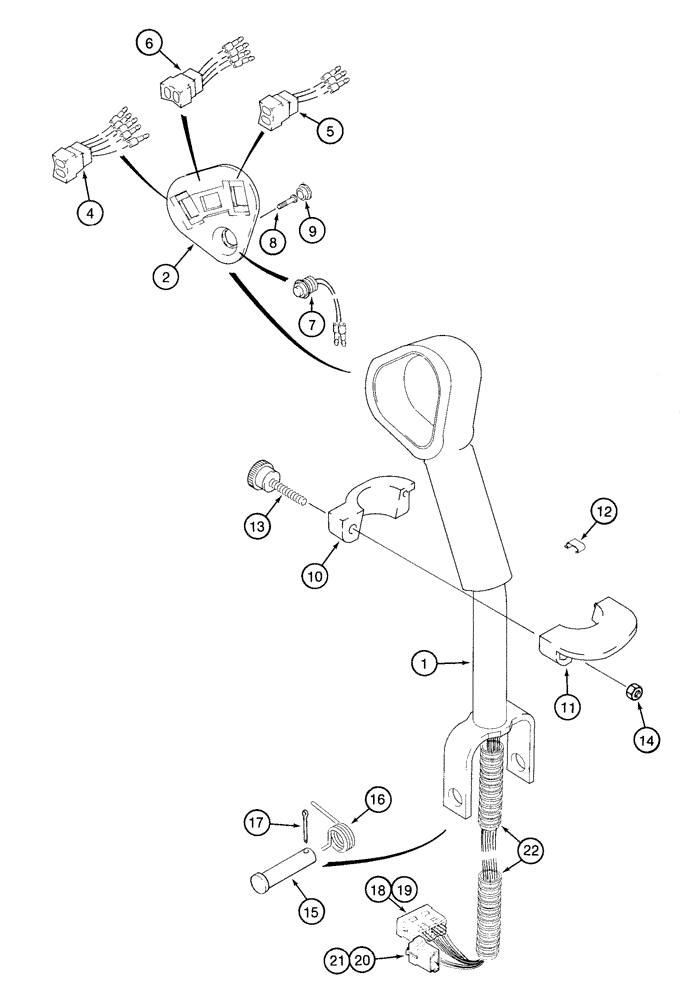

Запчасти Case IH 2155 (4-28) - PROPULSION CONTROL LEVER (06) - ELECTRICAL SYSTEMS

1

113314A1

LEVER

- propulsion control

1шт.

2

124670A1

COVER PLATE

1шт.

See Figure 9F-48 For Decal

1шт.

4

118686A1

SWITCH

- drum raise/lower

1шт.

the harness that runs the length of the handle is part of the switches (ref 4, 5 & 6), the wires are longer than they appear in the illustration. -lp-

1шт.

5

118685A1

SWITCH

- basket raise/lower

1шт.

6

118687A1

SWITCH

- basket door open/close

1шт.

7

127597A1

SWITCH

- unloader auger

1шт.

8

260-54310

SELF-TAP SCREW,Cross Pan Hd, #6 x 5/8"

SCREW - self-tapping, pan Phillips, No. 6-20 x 5/8 inch

1шт.

9

353-402

PLUG,Dome, .375" hole, Nylon

1шт.

10

116150A1

SUPPORT

- palm rest, left-hand

1шт.

11

116152A1

SUPPORT

- palm rest, right-hand

1шт.

12

1343962C1

CLIP,ELECTRICAL

CLIP - palm rest

1шт.

13

96860C1

KNOB

- palm rest

1шт.

14

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

15

27-8343

CLEVIS PIN,12.7mm OD x 87.33mm L

PIN - clevis, 1/2 x 3-7/16 inch, hardened

1шт.

16

128593A1

SPRING

- torsion

1шт.

17

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

18

225388C1

ELEC CONNECTOR,Male, 12 Pin

CONNECTOR - electrical, type NA

1шт.

19

225390C1

WEDGE

- electrical connector, type W12P

1шт.

20

225350C1

ELEC CONNECTOR,Male, 6 Pin

CONNECTOR - electrical, type LV

1шт.

21

225353C1

WEDGE,Lock, Black

- electrical connector, type W6P

1шт.

22

120344C1

CONDUIT

- convoluted insulation, 1 (26) x 1-17/64 (33) x 7-1/4 inch (184 mm) long

1шт.
