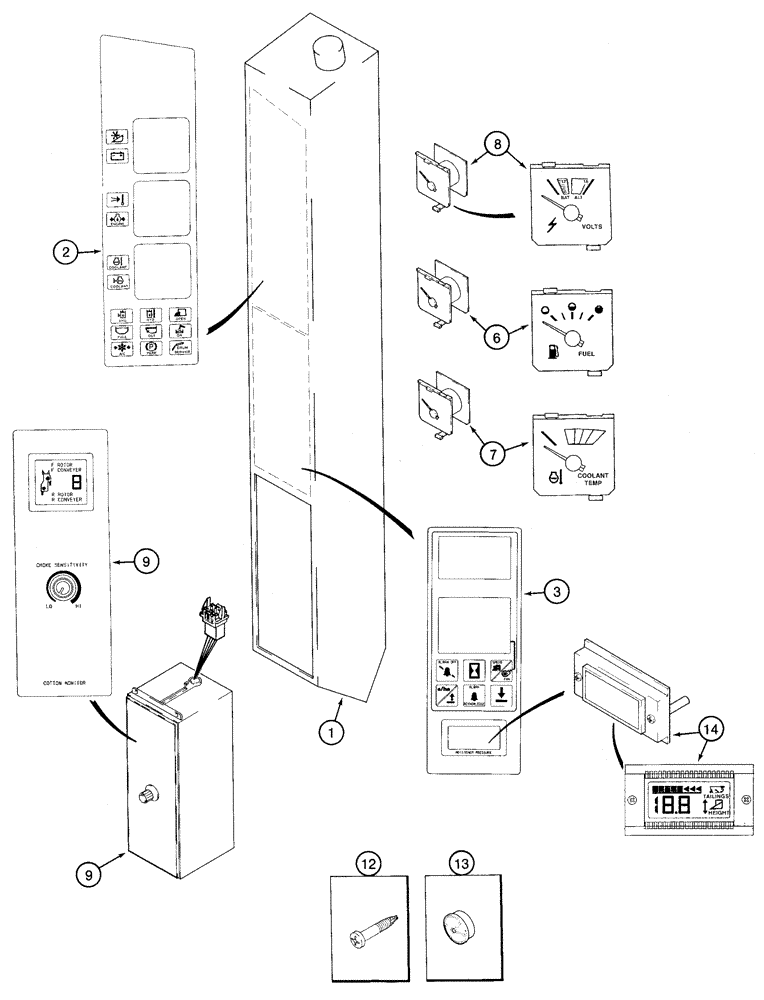

Запчасти Case IH 2155 (4-26) - INSTRUMENT PANEL ASSEMBLY (06) - ELECTRICAL SYSTEMS

123718A2

CLUSTER

PANEL ASSEMBLY - instrument, replaces 123718A1 panel

1шт.

REF 123718A2 - IF DEALER HAS CLUSTER WITH THE COTTON DISPLAY IN IT, PART IS 123719A2.

1шт.

1

NSS

NOT SOLD SEPARAT

PANEL - instrument mounting

1шт.

2

139084A2

DECAL

- gauge and warning

1шт.

3

123720A1

DECAL

- keypad

1шт.

4

A48888

BULB

- lamp, panel display, not shown

1шт.

5

121615A1

LAMP SOCKET

SOCKET - lamp, Inc. bulb, not shown

1шт.

6

121604C2

ELECTRICAL GAUGE

GAUGE - fuel, includes adapter

1шт.

7

121605C3

ELECTRICAL GAUGE

GAUGE - coolant temperature, includes adapter

1шт.

8

121607C2

ELECTRICAL GAUGE

GAUGE - voltmeter, includes adapter

1шт.

9

123808A1

CLUSTER, INSTR.

MONITOR ASSEMBLY - cotton display, replaced by 123808A2 monitor

1шт.

9

123808A2

CLUSTER, INSTR.

MONITOR ASSEMBLY - cotton display, replaces 123808A1 monitor

1шт.

10

A48888

BULB

- lamp, not shown

1шт.

11

R53000

GROMMET

RETAINER - screw, not shown

2шт.

12

260-13524

SELF-TAP SCREW,Phillips Drive, Pan HD, #10 - 16 x 1-1/2"

SCREW - self-tapping, pan Phillips, No. 10-16 x 1-1/2 inch

2шт.

13

195359A1

SHUTTER

- audible alarm

1шт.

14

123715A1

DISPLAY

Monitor Assy, Moistener Pressure

1шт.
