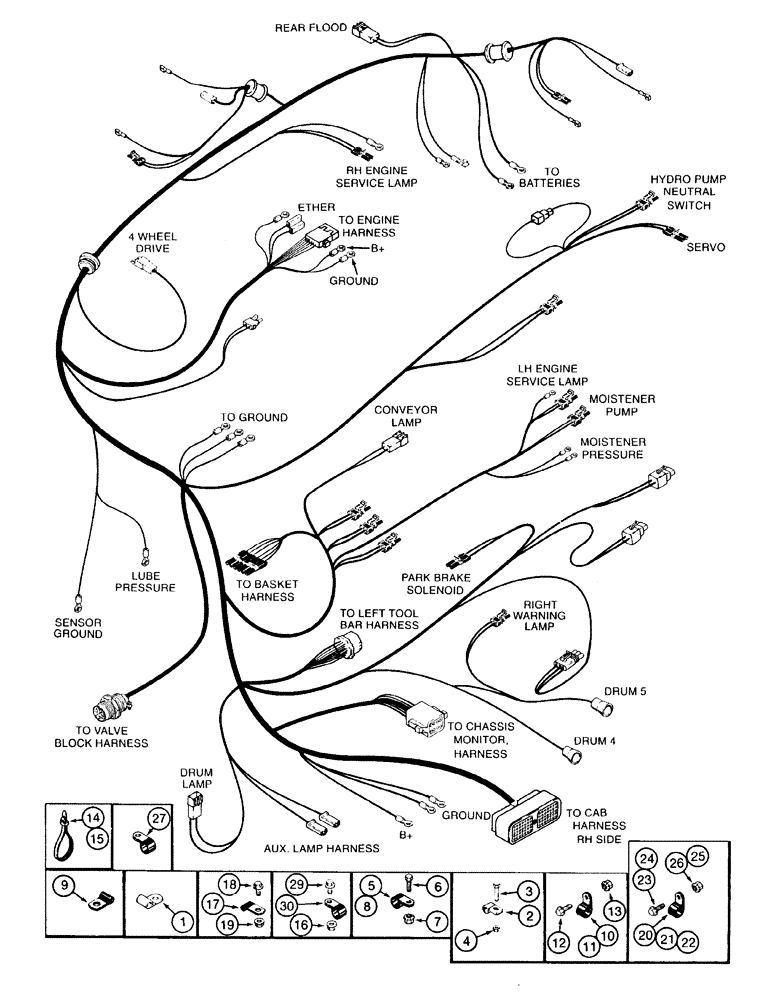

Запчасти Case IH 2155 (4-22) - CENTER TO REAR HARNESS (06) - ELECTRICAL SYSTEMS

1

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLAMP - P-type

1шт.

2

299268C91

CLAMP

CLIP - harness

1шт.

3

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

1шт.

4

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

5

515-25381

CLAMP,1 1/2", Insul, 1/2" Bolt

P-type 1 1/2", Insul, 1/2" Bolt

2шт.

6

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

7

231-5146

FLANGE NUT,3/8"-16

4шт.

8

515-25317

CLAMP,1 1/4", Insul, 1/2" Bolt

1шт.

9

F14858

CLAMP,J, 7/16" Insul, 3/8" Bolt

- J-type

3шт.

10

363444R1

CLAMP,J, 9/16" Insul, 3/8" Bolt

- retaining, front harness

1шт.

11

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

P-type 1/2", Insul, 5/16" Bolt

2шт.

12

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

2шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

15

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP, CABLE, 3/16" x 7 1/4"

1шт.

16

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC, hydraulic oil temperature

6шт.

17

299269C91

CLAMP

- retaining

1шт.

18

844-6025

BOLT,Hvy Hex, M6 x 25mm, Cl 8.8

- heavy hex flange, 6 - 1.0 x 25 mm, neutral, transmission

1шт.

19

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

1шт.

20

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type 5/8", Insul, 3/8" Bolt

1шт.

21

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type 1/2", Insul, 3/8" Bolt

4шт.

22

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type 1", Insul, 3/8" Bolt

2шт.

23

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

5шт.

24

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

2шт.

25

9804279

FLANGE NUT,Hex, M12, Cl 8

- hex flange, 12 mm - 1.75

2шт.

26

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

10шт.

27

515-25476

CLAMP,1 7/8", Insul, 1/2" Bolt

P-type 1 7/8", Insul, 1/2" Bolt

2шт.

28

122150A1

PROTECTION STRIP

TRIM - edge, 7 inch (179 mm) long, cut from 1330108CX bulk trim, not shown, see below

1шт.

29

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

6шт.

30

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type 3/4", Insul, 3/8" Bolt

6шт.

1330108CX

SEAL,304.8mm L

TRIM - edge, bulk, 600 inch (15240 mm) long

1шт.
