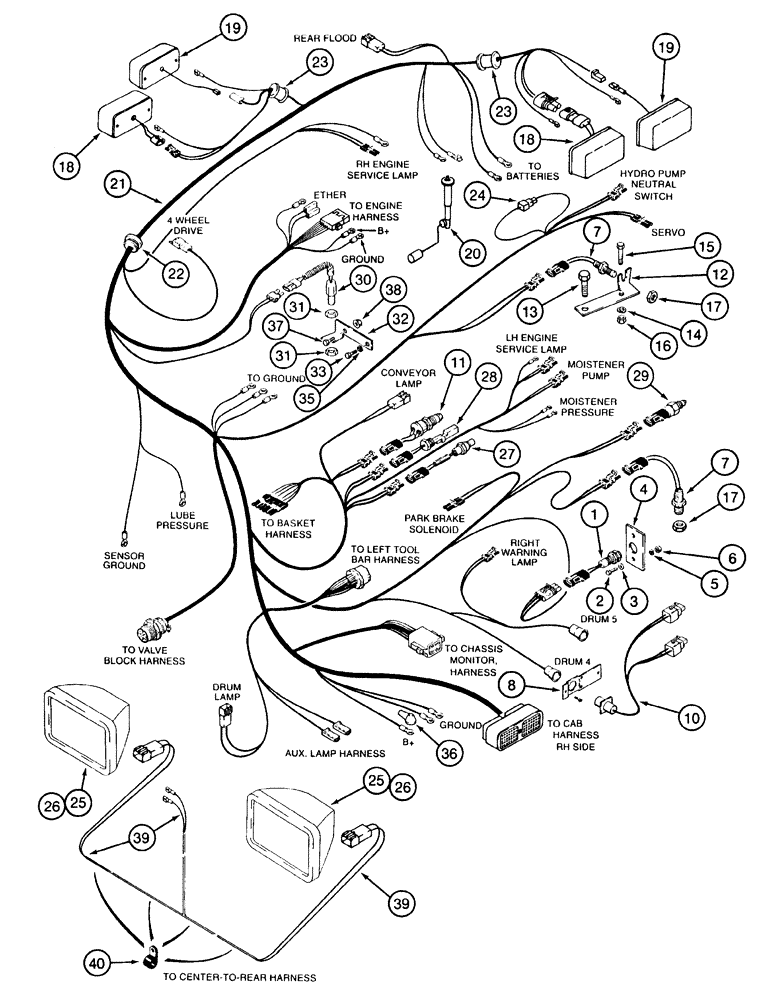

Запчасти Case IH 2155 (4-20) - CENTER TO REAR HARNESS (06) - ELECTRICAL SYSTEMS

1

1546498C1

SWITCH

- proximity, drum lift

1шт.

2

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

3

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

4

1546433C1

SUPPORT

BRACKET - proximity switch

1шт.

5

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

6

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

7

245193C2

SENSOR

- transducer, MPH and fan RPM

2шт.

8

1988723C1

SUPPORT

BRACKET - monitor

1-2шт.

9

281-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self-tapping, hex washer head, No. 10 NC x 1/2 inch, not shown

3-6шт.

10

1983613C1

HARNESS

- drum

1-2шт.

11

1983297C2

IGNITION SWITCH

SWITCH - limit, basket mast

1шт.

12

1546124C1

SUPPORT

BRACKET - RPM pickup

1шт.

13

413-1012

BOLT,Hex, 5/8" - 11 x 3/4", Gr 5

- hex, 5/8 NC x 3/4 inch

1шт.

14

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

15

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

16

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

- hex, self-locking, special, 1/2 inch NC, grade 8

1шт.

17

425-1512

JAM NUT,Jam, 3/4"-10, G5

- hex, jam, 3/4 inch NF

2шт.

18

92260C1

LAMP,12V, 27W, Red

ASSEMBLY - stop and tail, parts list page 4-45

2шт.

19

130882C91

LAMP

LAMP ASSEMBLY - warning, parts list page 4-45

2шт.

20

121810C1

ELECTRICAL GAUGE

SENDER - fuel level gauge

1шт.

21

184849A2

HARNESS

- center to rear, replaces 184849A1 harness

1шт.

REF#21 FOR CONDUIT NEEDS PART 1202956C1 WHICH HAS SINCE BEEN DISCONTINUED.CONDUIT IS 35.00 +/- .25 O.D. .830 ID.

1шт.

22

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

- rubber, center to rear harness

1шт.

23

1321767C1

GROMMET

- left side sheet

2шт.

24

113699A1

RECTIFIER

- locking, 2-5/8 inch long

1шт.

25

185117A1

HEADLIGHT,12V, 37.5W

LAMP ASSEMBLY - auxilliary option

2шт.

26

139120A1

BULB

- lamp, Type C-6, No. 894

1шт.

27

A187576

SWITCH

- hydraulic oil temperature

1шт.

28

122428A1

SWITCH

- hydraulic oil level

1шт.

29

1983575C1

SWITCH

- nuetral transmission

1шт.

30

1252494C2

TRANSMITTER

SENSOR - engine RPM

1шт.

31

425-1512

JAM NUT,Jam, 3/4"-10, G5

- hex, jam, 3/4 inch NF

2шт.

32

1546124C1

SUPPORT

BRACKET - RPM pickup

1шт.

33

413-1012

BOLT,Hex, 5/8" - 11 x 3/4", Gr 5

- hex, 5/8 NC x 3/4 inch

1шт.

35

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

36

399470R1

BOOT

- cable

1шт.

37

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

38

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

- hex, self-locking, special, 1/2 inch NC, grade 8

1шт.

39

184848A1

HARNESS

- platform, auxillary lamp

1шт.

40

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type, Platform harness 5/8", Insul, 3/8" Bolt

4шт.
