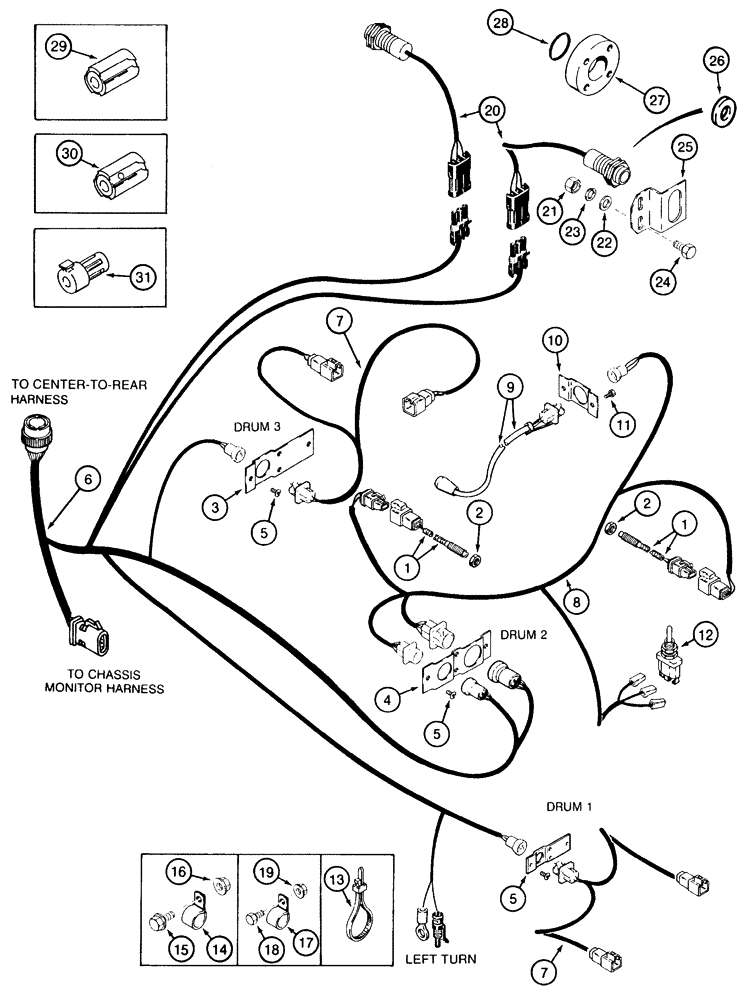

Запчасти Case IH 2155 (4-18) - LEFT-HAND TOOL BAR HARNESS (06) - ELECTRICAL SYSTEMS

1

1983681C1

SENSOR

- rotor speed

2шт.

2

84116C1

NUT

- hex, self-locking, 3/4 inch NC

1шт.

3

1988723C1

SUPPORT

BRACKET - harness mounting

4шт.

4

1988724C1

SUPPORT

BRACKET - harness mounting

1шт.

5

281-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self-tapping, hex washer head, No. 10 NC x 1/2 inch

5шт.

6

142836A1

HARNESS

- left-hand tool bar

1шт.

7

1983613C1

HARNESS

- drum

4шт.

8

1983614C1

HARNESS

- drum with tether

1шт.

9

1983416C2

SWITCH

- remote tether

1шт.

10

91795C1

SUPPORT

BRACKET - connector mounting

1шт.

11

463-1108

SCREW,Hex Hd, #10-24 x 1/2"

- machine, hex head, No. 10 NC x 1/2 inch

2шт.

12

1983686C1

SWITCH

- drum spread

1шт.

13

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP, CABLE, , Monitor harness 3/16" x 7 1/4"

3шт.

14

299608C1

CLAMP,1 1/4", Insul, 1/2" Bolt

- P-type, 1-1/4 inch, rubber cushioned

1шт.

15

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

1шт.

16

231-5146

FLANGE NUT,3/8"-16

1шт.

17

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type 1", Insul, 3/8" Bolt

2шт.

18

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

2шт.

19

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

20

1546498C1

SWITCH

- proximity, drum lift and drum tilt

2шт.

Part of Switch KIT, P/N 111669A1

1шт.

21

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

Part of Switch KIT, P/N 111669A1

1шт.

22

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

Part of Switch KIT, P/N 111669A1

1шт.

23

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

Part of Switch KIT, P/N 111669A1

1шт.

24

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

Part of Switch KIT, P/N 111669A1

1шт.

25

1546432C1

SUPPORT

BRACKET - switch mounting

2шт.

Part of Switch KIT, P/N 111669A1

1шт.

26

495-81202

WASHER,1 9/32" x 1 3/4" x .060"

- flat, 1-9/32 x 1-3/4 x 1/16 inch

4шт.

Part of Switch KIT, P/N 111669A1

1шт.

27

112291A1

COVER

- switch port, if used

2шт.

Part of Switch KIT, P/N 111669A1

1шт.

28

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

If used -018, 90 Duro, .739" ID x .070" Thk

2шт.

Part of Switch KIT, P/N 111669A1

1шт.

29

1987557C1

CONNECTOR, ELEC

PLUG - monitor conversion

1шт.

30

106212A1

CONNECTOR, ELEC

PLUG - monitor conversion

1шт.

31

106209A1

CONNECTOR, ELEC

PLUG - dust

2шт.

111669A1

PACKAGE

KIT - switch, Includes: Refs. 20 through 28

1шт.
