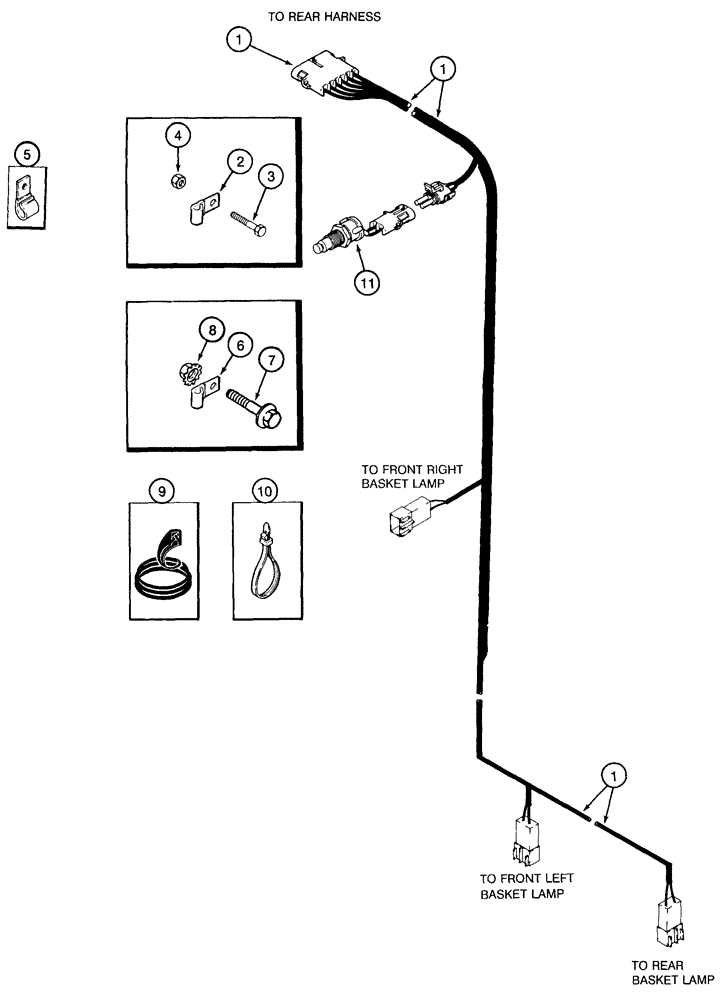

Запчасти Case IH 2155 (4-14) - BASKET HARNESS (06) - ELECTRICAL SYSTEMS

1

184851A1

HARNESS

- basket

1шт.

2

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLAMP - P-type, harness, rear

5шт.

3

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

2шт.

4

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

M8 x 1.25", Flg, Cl 8

2шт.

5

362123R1

CLIP

- trim, harness

9шт.

6

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type 1/2", Insul, 3/8" Bolt

2шт.

7

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

1шт.

8

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

M8 x 1.25", Flg, Cl 8

1шт.

9

1327979C1

MOLDING

TRIM - edge, 6 inch (152 mm) long, cut from 1330108CX bulk trim, support, see below

1шт.

10

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP, CABLE, 3/16" x 7 1/4"

1шт.

11

1983297C2

IGNITION SWITCH

SWITCH - basket door limit

1шт.

1330108CX

SEAL,304.8mm L

TRIM - edge, bulk, 600 inch (15240 mm) long

1шт.
