(4-12) - CAB HARNESS, TO PEDESTAL, RELAY AND FUSE BLOCK

Запчасти Case IH 2155 (4-12) - CAB HARNESS, TO PEDESTAL, RELAY AND FUSE BLOCK (06) - ELECTRICAL SYSTEMS

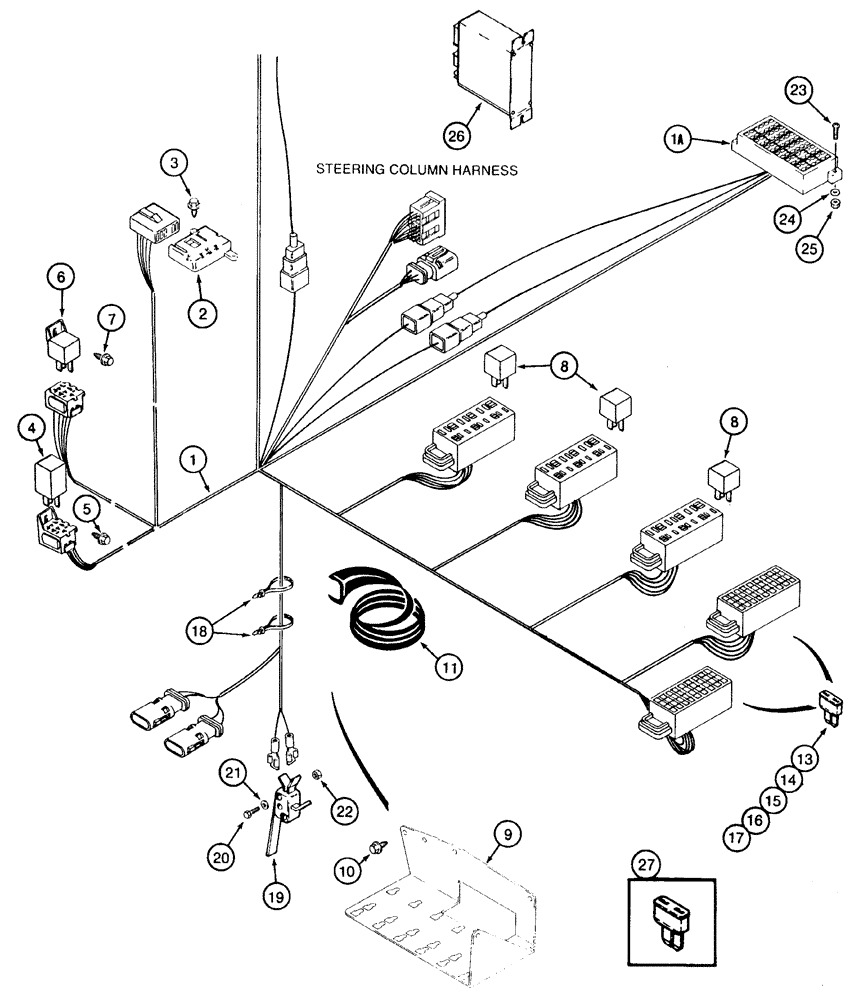

Схема запчастей Case IH 2155 - (4-12) - CAB HARNESS, TO PEDESTAL, RELAY AND FUSE BLOCK (06) - ELECTRICAL SYSTEMS
16
20
2
14
6
1a
24
26
5
3
18
13
21
9
7
19
23
10
4
17
27
8
15
25
11
1
8
22
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

184517A5

HARNESS

- cab, replaces 184517A2 harness

1шт.

See Figures 4-08 and 4-10 for continuation of the cab harness.

1шт.

1a

122845A1

JUNCTION BLOCK

MODULE - feedback

1шт.

2

A162294

CONNECTOR, ELEC

MODULE - low coolant

1шт.

3

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

SCREW, SELF TAP, Hex Wash Hd, #10-24 x 5/8"

2шт.

4

92389C2

FLASHER UNIT

FLASHER - hazard

1шт.

5

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

SCREW, SELF TAP, Hex Wash Hd, #10-24 x 5/8"

1шт.

6

1987452C1

RELAY

- 12 volt, 70 amp

1шт.

7

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

SCREW, SELF TAP, Hex Wash Hd, #10-24 x 5/8"

1шт.

8

105849A1

RELAY

- continuous duty, 20 amp

14шт.

9

123116A1

PANEL

BRACKET - support, fuse and relay

1шт.

10

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

SCREW, SELF TAP, Hex Wash Hd, #10-24 x 5/8"

3шт.

11

70-5848T1

SEAL

TRIM edge, 5-1/2 inch, 140 mm, long, cut from F64277X bulk trim, see below

2шт.

12

141229A5

DECAL

- lower fuse block, not shown, parts list page 9F-45, item11, replaces 141229A3 decal

1шт.

13

121850A1

FUSE,3A, Mini, Violet

- mini, 3 ampere

1шт.

14

121410A1

FUSE,5A, Mini, Tan

5шт.

15

121412A1

FUSE,10A, Mini, Red

10шт.

16

121413A1

FUSE,15A, Mini, Blue

4шт.

17

121414A1

FUSE,20A, Mini, Yellow

- mini, 20 ampere

2шт.

18

702093C1

CABLE TIE

STRAP, CABLE, 3 inch maximum, high range lockout switch wire

2шт.

19

60-6515T1

SWITCH

- high range lockout

1шт.

20

463-10412

SCREW,Hex Hd, #4-40 x 3/4"

- machine, hex head, No. 4 NC x 3/4 inch

2шт.

21

495-31012

WASHER,#4

- flat, 1/8 x 5/16 x 1/32 inch

2шт.

22

225-14104

NUT,#4-40

2шт.

23

440-10616

SCREW,Cross Pan Hd, #6-32 x 1"

2шт.

24

495-31012

WASHER,#4

- flat, 1/8 x 5/16 x 1/32 inch

2шт.

25

231-14106

NUT,#6-32, GB

NUT - hex, self-locking, No. 6 NC

2шт.

26

183969A1

CASE

MODULE - moistener and RPM control

1шт.

27

222699A1

FUSE KIT

KIT - fuse, includes (1) each of 3, 5, 7.5, 10, 15, 20, 25, and 30 amp fuses

1шт.

F64277X

SEAL

TRIM edge, bulk, 570 inch, 14478 mm, long, used for Ref. 11

1шт.
