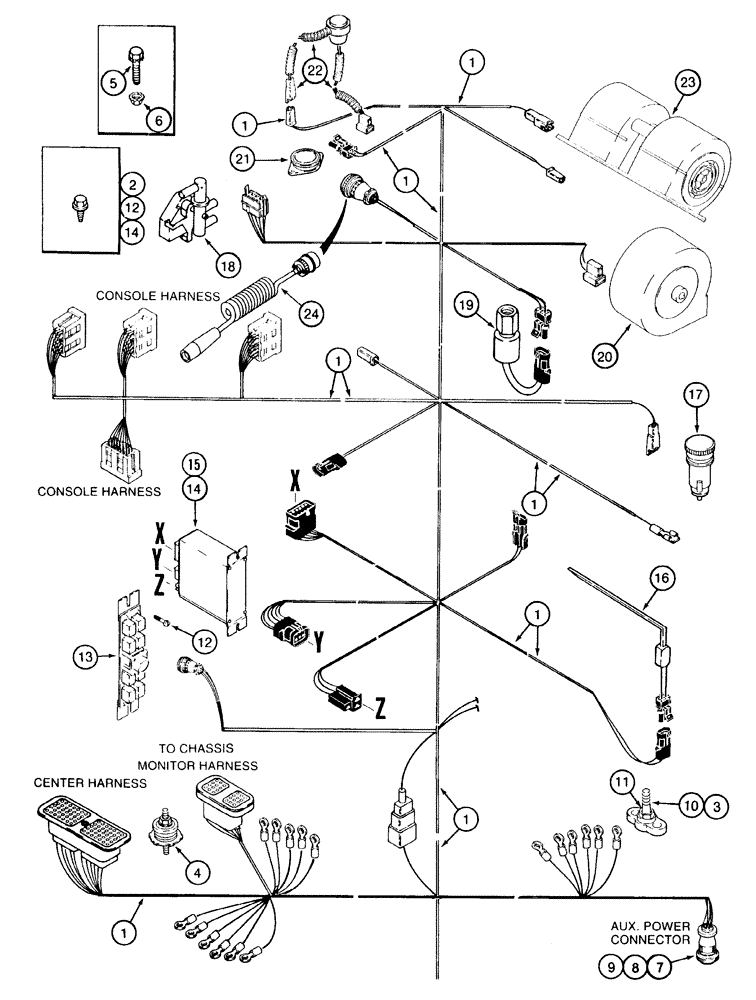

Запчасти Case IH 2155 (4-10) - CAB HARNESS, LOWER REAR (06) - ELECTRICAL SYSTEMS

1

184517A5

HARNESS

- cab, replaces 184517A2 harness

1шт.

See pages 4-9 and 4-13 for continuation of cab harness.

1шт.

2

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

SCREW, SELF TAP, , Bulkhead connector Hex Wash Hd, #10-24 x 5/8"

8шт.

3

262-15516

SELF-TAP SCREW,Hex Pan Hd, #10 x 1"

SCREW - self-tapping, pan Phillips, No. 10-16 x 1 inch, junction block mounting, not shown

2шт.

4

A187523

JUNCTION BLOCK

BLOCK - cable junction, unswitched B+

1шт.

5

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

- hex serrated flange, 3/8 NC x 1-1/4 inch, Ground

1шт.

6

231-5146

FLANGE NUT,3/8"-16

Ground Flg, USR, 3/8"-16

1шт.

7

440-10610

SCREW,Phillips Drive, Pan HD, #6 - 32 x 5/8"

- machine, pan Phillips, No. 6 NC x 5/8 inch, auxiliary power connector mounting

4шт.

8

231-14106

NUT,#6-32, GB

NUT - hex, self-locking, No. 6 NC, auxiliary power connector mounting

4шт.

9

187103A1

ELEC CONNECTOR

CONNECTOR - auxiliary power

1шт.

THIS IS THE CONNECTOR THAT PLUGS INTO THE HARNESS. SEE NTC SB 003 96

1шт.

10

20-1451T1

BLOCK

- junction, switched B+

1шт.

11

425-106

NUT,3/8"-16, Cl 5

1шт.

12

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

SCREW, SELF TAP, Hex Wash Hd, #10-24 x 5/8"

2шт.

13

1983419C3

CONTROL UNIT

MODULE - operator presence system

1шт.

14

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

SCREW, SELF TAP, Hex Wash Hd, #10-24 x 5/8"

2шт.

15

141178A4

CASE

MODULE - air conditioning control, replaces 141178A2 module

1шт.

16

184720A1

SENSOR

- temperature, evaporator

1шт.

17

245576C1

LIGHTER, CIGARETTE

LIGHTER - cigar

1шт.

18

141336A1

VALVE

- heater control

1шт.

19

122579A1

SWITCH, A/C LOW PRES

SWITCH - low pressure, air conditioning

1шт.

20

175435A1

VENTILATOR

BLOWER - pressurizer

1шт.

21

1983395C1

IGNITION SWITCH

SWITCH - seat

1шт.

22

180601A1

WIRE HARNESS

HARNESS - seat, operator present

1шт.

22a

180599A1

WIRE HARNESS

HARNESS - air suspension seat, not shown

1шт.

23

1977564C2

BLOWER

- cab

1шт.

23

355190A1R

REMAN-BLOWER,12V

Reman for New PN 1977564C2

1шт.

23

355190A1C

CORE-BLOWER,12V

Return Number

1шт.

24

187678A1

SWITCH

- remote tether, basket unload

1шт.
