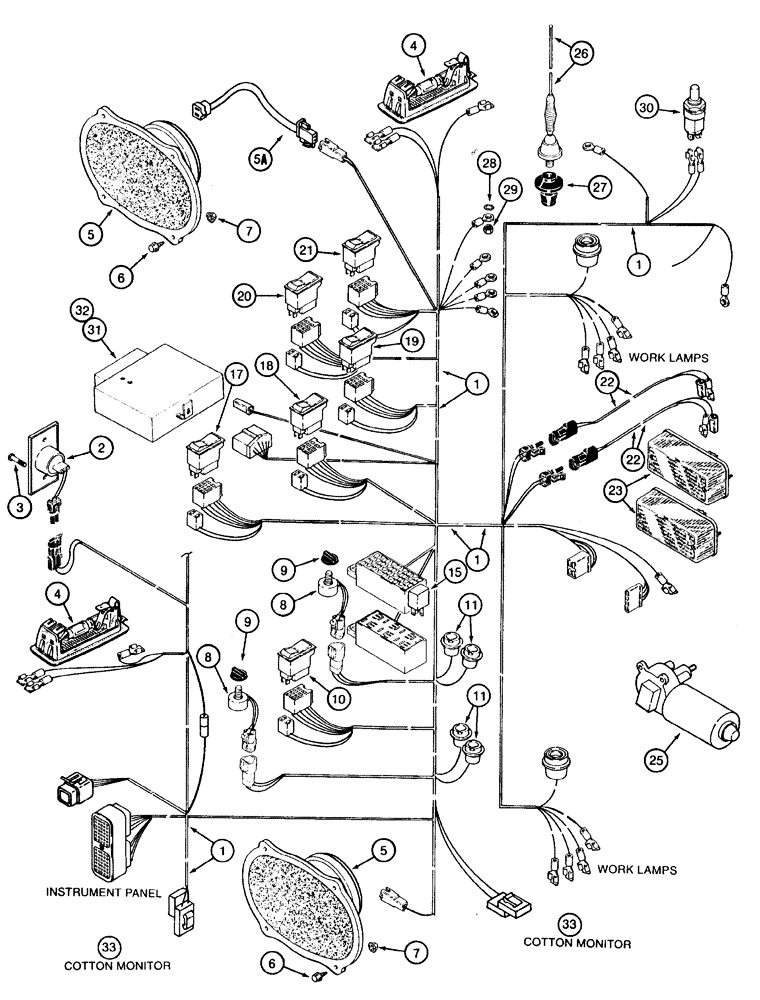

Запчасти Case IH 2155 (4-08) - CAB HARNESS, OVERHEAD (06) - ELECTRICAL SYSTEMS

1

184517A5

HARNESS

- cab, replaces 184517A3 harness

1шт.

See Figures 4-10 and 4-12 for continuation of the cab harness, Figure 4-26 for the instrument panel, and 4-46 for the work lamps.

1шт.

2

83882C91

LAMP

ASSEMBLY - console illumination, parts list page 4-45

1шт.

3

440-10812

SCREW,Cross Pan Hd, #8-32 x 3/4"

- machine, pan Phillips, No. 8 NC x 3/4 inch

2шт.

4

1983391C1

LAMP,12V, 10W

ASSEMBLY - dome, parts list page 4-45

2шт.

5

141924A1

SPEAKER

- radio

2шт.

5

182721A1

SPEAKER

- radio, 5-1/4 inch, round

1шт.

When sevicing Oxford speaker 141924A1, use 182721A1 speaker, item 5, and 195551A1 harness, item 5A.

1шт.

5a

195551A1

HARNESS

- adapter, speakers to headliner harness

1шт.

When sevicing Oxford speaker 141924A1, use 182721A1 speaker, item 5, and 195551A1 harness, item 5A.

1шт.

6

281-53516

SELF-TAP SCREW,Hex Wash Hd, #10 x 1"

SCREW - self-tapping, hex washer head, No. 10 NC x 1 inch

8шт.

7

231-51409

SERRATED NUT,Flg, USR, #10-24

8шт.

8

114551A1

POTENTIOMETER,2500 Ohm, 500V

Single, Air Conditioning Fan Speed and Temperature 2500 Ohm, 500V

2шт.

9

1977521C1

BUTTON

KNOB - includes screw, potentiometer

2шт.

10

124535A1

SWITCH

- rocker, air conditioning

1шт.

11

26069R1

BULB

- lamp, No. 192, not shown

4шт.

12

139718A1

CIRCUIT-BREAKER,10 Amp, Mini

CIRCUIT BREAKER, , Not shown, If used 10 Amp, Mini

1шт.

12

121412A1

FUSE,10A, Mini, Red

Not shown, If used 10 Amp, Mini

1шт.

13

139719A1

CIRCUIT BREAKER,15 Amp, Mini

15 Amp, Not shown, If used

3шт.

13

121413A1

FUSE,15A, Mini, Blue

Not shown, If used 15 Amp, Mini

3шт.

14

139721A1

CIRCUIT-BREAKER,25 Amp, Mini

CIRCUIT BREAKER, , Not shown, If used 25 Amp, Mini

2шт.

14

121416A1

FUSE,30A, Mini, Green

- mini, 30 ampere, Not shown, If used

2шт.

15

105849A1

RELAY

- continuous duty, 20 amp

4шт.

16

141230A2

DECAL

- overhead fuse block, not shown, see page 9F-45, item 10 for decal

1шт.

17

141488A1

WINDSHIELD WIPER SWI

SWITCH - rocker, wiper, standard

1шт.

18

144160A1

SWITCH

- rocker, basket/drum lamps

1шт.

19

124095A1

LIGHT SWITCH

SWITCH - rocker, lamp

1шт.

20

124094A1

SWITCH

- rocker, hazard lamp

1шт.

21

141430A1

SWITCH

- rocker, emergency unload

1шт.

22

143062A1

WIRE HARNESS

HARNESS - cab warning lamp

2шт.

23

130882C91

LAMP

LAMP ASSEMBLY - warning, parts list page 4-45

2шт.

25

137608A1

WIPER MOTOR

MOTOR ASSEMBLY - windshield wiper, includes mounting bracket, single blade, parts list page 4-49

1шт.

26

97080C1

ANTENNA

ASSEMBLY - radio, includes base, mast, cable, and hardware

1шт.

27

R54547

GROMMET

- 1-1/32 inch (26 mm) hole size

1шт.

28

893-11008

LOCK WASHER,Ext Tooth, M8

WASHER, LOCK, Ext Tooth, M8

1шт.

29

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

1шт.

30

1983341C1

SWITCH

- door jam

1шт.

31

141950A1

RADIO

- AM/FM/WB, order from ship direct

1шт.

32

141951A1

RADIO

- AM/FM/WB with cassette player, order from ship direct

1шт.

33

128361A1

CLUSTER, INSTR.

MONITOR - cotton

1шт.
