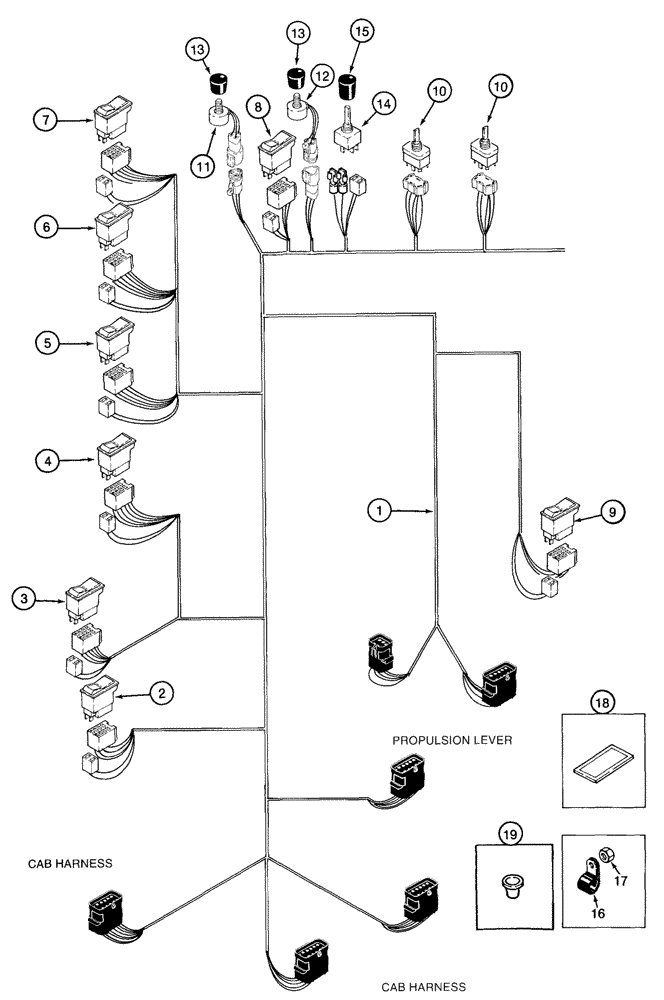

Запчасти Case IH 2155 (4-06) - CONSOLE HARNESS (06) - ELECTRICAL SYSTEMS

1

133592A4

HARNESS

- console, replaces 133592A3 harness

1шт.

2

124098A1

SWITCH

- rocker, parking brake

1шт.

3

124105A1

SWITCH

- rocker, power guide axle, 4WD

1шт.

4

124102A1

SWITCH

- rocker, drum lube

1шт.

5

124104A1

FAN SWITCH

SWITCH - rocker, fan engage

1шт.

6

124097A1

SWITCH

- rocker, hydraulic lockout

1шт.

7

144159A1

SWITCH

- rocker, basket/drum lock

1шт.

8

184865A1

SWITCH

- rocker, moistener

1шт.

9

187104A1

SWITCH

- rocker, OPS bypass

1шт.

10

121541C2

SWITCH

- toggle, drum lower, left-hand and right-hand

2шт.

11

114551A1

POTENTIOMETER,2500 Ohm, 500V

Single, Moistener Pressure Control 2500 Ohm, 500V

1шт.

12

114550A1

POTENTIOMETER,1000 Ohm, 500V

Single, Compactor Rate 1000 Ohm, 500V

1шт.

13

118780A1

KNOB

Potentiometer

2шт.

14

129238A1

SWITCH

- rotary compactor control

1шт.

15

144442A1

BUTTON

KNOB - rotary compactor switch

1шт.

16

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

P-type 7/8", Insul, 3/8" Bolt

1шт.

18

245918C1

LENS

PLUG - rectangular, rocker switch

1шт.

19

353-402

PLUG,Dome, .375" hole, Nylon

1шт.

17

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.
