(4-04) - STEERING CONSOLE AND AUXILIARY LAMP HARNESSES

Запчасти Case IH 2155 (4-04) - STEERING CONSOLE AND AUXILIARY LAMP HARNESSES (06) - ELECTRICAL SYSTEMS

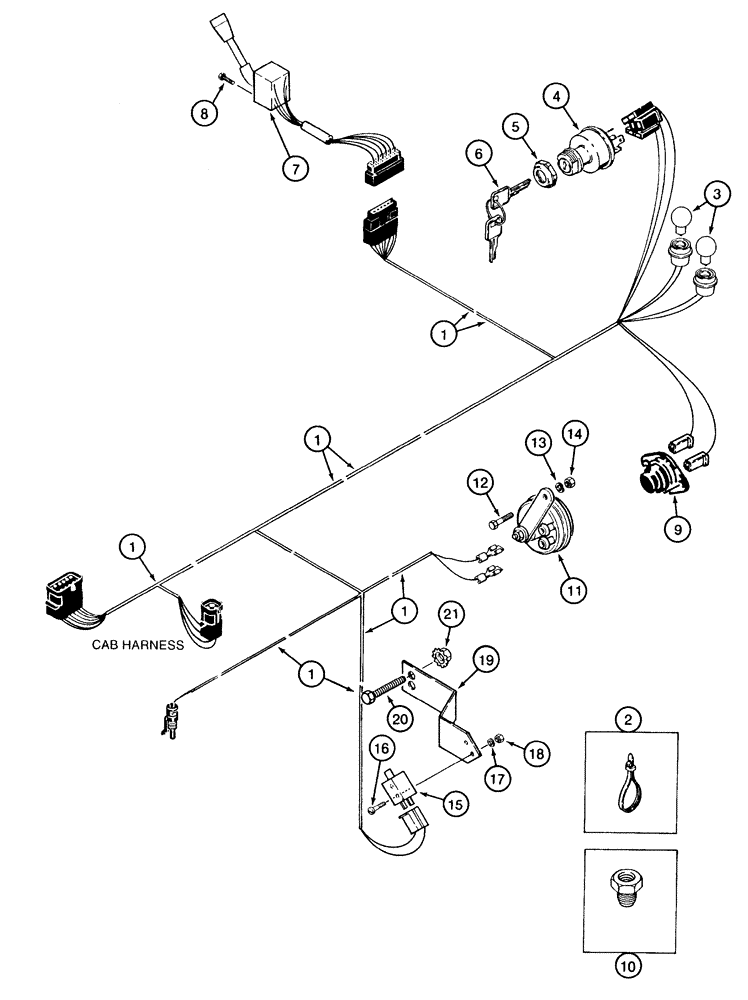

Схема запчастей Case IH 2155 - (4-04) - STEERING CONSOLE AND AUXILIARY LAMP HARNESSES (06) - ELECTRICAL SYSTEMS
19
18
20
17
3
7
12
1
8
14
10
11
1
1
5
9
21
1
6
16
13
1
15
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

184847A1

HARNESS

- steering console

1шт.

2

702093C1

CABLE TIE

STRAP, CABLE, 3 inch maximum

2шт.

3

26069R1

BULB

- lamp, No. 192

2шт.

4

D134737

IGNITION SWITCH

SWITCH ASSEMBLY - ignition, includes keys

1шт.

5

A77314

NUT

- hex, special

1шт.

6

A77313

SET OF 2 KEYS

KEY - set of two

1шт.

7

1500137C2

FLASHER SWITCH

SWITCH, FLASHER, Horn

1шт.

8

614-4008

BOLT,Hex, M4 x 0.7 x 8mm, Cl 8.8, Full Thd

- hex, full threads, 4 - 0.7 x 8 mm

2шт.

9

D67872

SWITCH

- push button, ether inject

1шт.

10

217-40

REDUCER,1/4"-18 NPTF x 1/8"-27 Fem NPTF

- 1/4 PT x 1/8 inch female PT, push button switch, if used

1шт.

11

3057542R91

HORN

- warning sound

1шт.

12

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

1шт.

13

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

14

829-1406

NUT,Hex, M6 x 1, Cl 10.9

1шт.

15

127286A1

SWITCH

- emergency brake

1шт.

16

840-1420

SCREW,Pan, M4 x 20mm, Cl 4.8

- machine, pan Phillips, 4 - 0.7 x 20 mm

2шт.

17

892-11004

LOCK WASHER,M4

WASHER, LOCK, M4

2шт.

18

824-1404

NUT,M4, Cl 5

- hex, 4 mm - 0.7, class 5

2шт.

19

180517A1

SUPPORT

BRACKET - mounting, emergency brake switch

1шт.

20

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm

2шт.

21

825-5148

SERRATED NUT,M8, Flg Ser

2шт.
