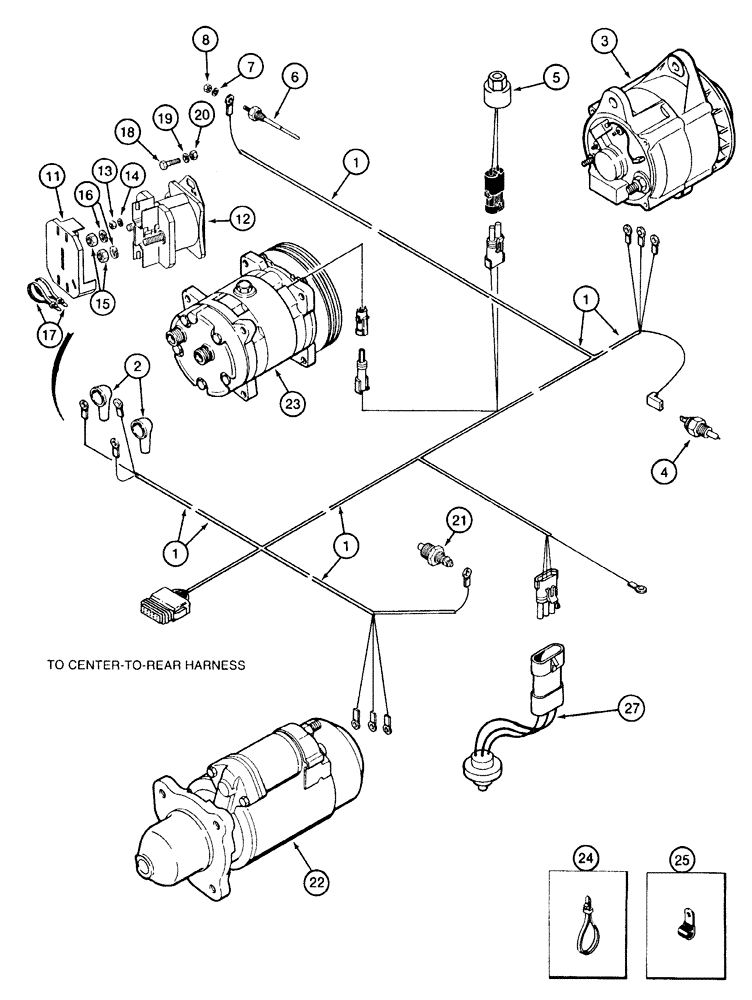

Запчасти Case IH 2155 (4-02) - ENGINE HARNESS (06) - ELECTRICAL SYSTEMS

1

184935A1

HARNESS

HARNESS - engine

1шт.

2

399470R1

BOOT

BOOT - cable, not used on 1996 production machines

2шт.

3

125849A1

ALTERNATOR,12V, 135A, W/ Pulley

ALTERNATOR ASSEMBLY - engine, 135 ampere, parts list page 4-37

1шт.

3

125849A1GV

ALTERNATOR

Value, 135 ampere

1шт.

4

1345488C2

PRESSURE SWITCH

SWITCH - coolant, high temperature

1шт.

5

1999925C1

INDICATOR

SWITCH - high pressure

1шт.

6

A145513

SENSOR

SENSOR - coolant level

1шт.

7

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

8

225-14210

NUT,#10-32

NUT, #10-32

1шт.

178149A1

SOLENOID SWITCH

KIT - solenoid switch, with barrier and cover

1шт.

11

178148A1

COVER

COVER - solenoid switch

1шт.

12

183038A1

SOLENOID

SWITCH - solenoid with barrier

1шт.

13

225-14210

NUT,#10-32

NUT, #10-32

1шт.

14

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

15

425-105

NUT,5/16"-18, G5

NUT - hex, 5/16 inch NC

2шт.

16

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

17

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP STRAP - tie, 15 inch, nylon

2шт.

18

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

BOLT - hex, 1/4 NC x 1 inch

2шт.

19

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

20

425-104

NUT,1/4"-20, Cl 5

NUT - hex, 1/4 inch NC

2шт.

21

121756C2

SENSOR

SENSOR - coolant temperature, coolant temperature

1шт.

22

A187728

STARTING MOTOR

STARTER ASSEMBLY - engine, parts list page 4-39 and 4-41

1шт.

22

AR187728

REMAN-STARTER

Remanufactured Starter

1шт.

22

AC187728

CORE-STARTER

Return Part Number

1шт.

23

1999755C2

COMPRESSOR

COMPRESSOR ASSEMBLY - air conditioning, parts list page 9E-53

1шт.

23

86993462R

REMAN-COMPRESSOR

2155 (2/95-); Reman For New P/N 1999755C2

1шт.

23

86993462C

CORE-COMPRESSOR

Return Part Number

1шт.

23

48017123R

REMAN-A/C COMP KIT

Reman AC Compressor Kit

1шт.

23

48017123C

REMAN-A/C COMP KIT

Return Part Number

1шт.

23

1999755C3R

REMAN-A/C COMPRESSOR

Inc.- 8 Mounting Holes, 2 Groove Pulley, For Use w/HFC134A Refrigerant

1шт.

23

1999755C3C

CORE-COMPRESSOR

Return Part Number

1шт.

24

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP STRAP, CABLE, 3/16" x 7 1/4"

1шт.

25

515-23175

CLAMP,11/16", Insul, 3/8" Bolt

CLAMP - P-type, 7/8 inch ID

1шт.

26

190567A1

CABLE

CABLE - engine ground, 8 inch (203 mm) long, not shown, see page 4-31, item 13, for correct part

1шт.

27

1964960C1

PRESSURE SWITCH

SWITCH - oil pressure and hydraulic lock

1шт.
