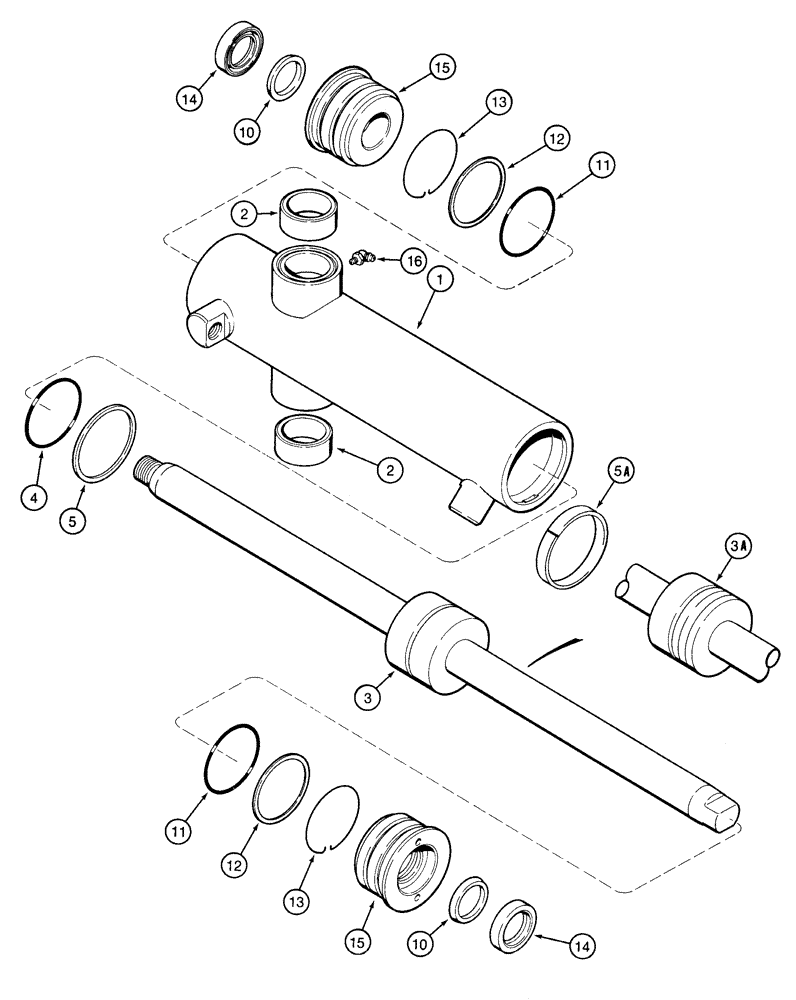

Запчасти Case IH 2155 (5-18) - STEERING CYLINDER (04) - STEERING

93194C8

STEERING CYLINDER

CYLINDER ASSEMBLY - 2-5/8 (67) ID x 9-3/4 inch (246 mm) stroke

1шт.

93194C9R

REMAN-HYD CYLINDER

2155 CASE IH COTTON EXPRESS COTTON PICKER, CYLINDER ASSEMBLY - 2-5/8 (67) ID x 9-3/4 inch (246 mm) stroke (2/95-), Reman For New PN 93194C8

1шт.

93194C9C

CORE-HYD CYLINDER

Return Number

1шт.

1

1954124C4

HYD CYL SLEEVE

TUBE - cylinder

1шт.

2

1255304C1

BUSHING

- tube

2шт.

3

1255306C4

PISTON ROD

ROD - piston, cylinder, single groove, if used

1шт.

3a

1255306C5

PISTON ROD

ROD - piston, cylinder, double groove, if used

1шт.

80448C2

SEAL KIT

KIT - seal

1шт.

4

238-5139

O-RING,0.103" Thk x 2.175" ID, -139, Cl 5, 75 Duro

1шт.

5

1255309C1

SEAL,61.19mm ID x 67.28mm OD x 2.92mm Thk

SEAL - piston, cylinder

1шт.

5a

111829A1

PISTON RING

RING - wear, piston, used with 1255306C5 rod only

1шт.

10

119188C1

SEAL,32.03mm ID x 37.84mm OD x 4.04mm Thk

- piston rod

2шт.

11

238-5143

O-RING,0.103" Thk x 2.425" ID, -143, Cl 5, 75 Duro

2шт.

12

1255311C1

WASHER

- backup

2шт.

13

1255312C1

RETAINING WIRE

WIRE - retaining, 8-1/16 inch (205 mm) long, cut from 140600C1 bulk wire, see below

2шт.

14

D95141

WIPER SEAL

WIPER - piston rod, piston rod

2шт.

15

1255310C1

HEAD (CYLINDER)

GLAND - cylinder

2шт.

16

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING - grease, 65 degree, 3/16 drive type x 23/32 inch

2шт.

140600C1

RETAINING WIRE

WIRE - retaining, bulk, 12-1/2 inch (319 mm) long

1шт.
