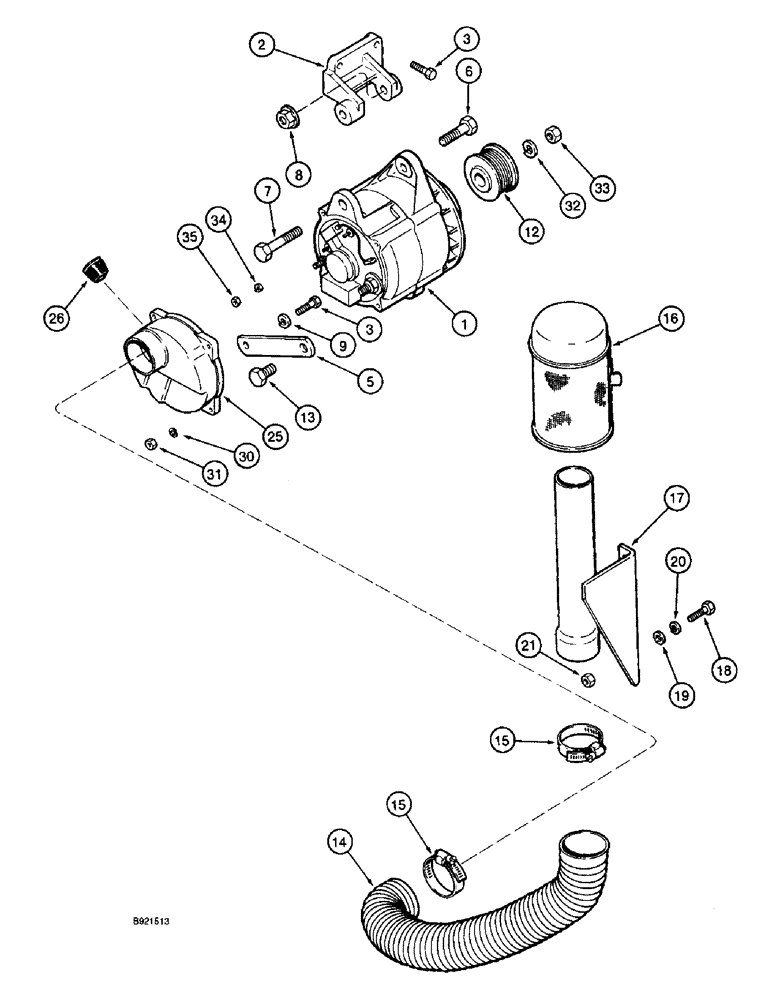

Запчасти Case IH 2055 (4-34) - ALTERNATOR MOUNTING AND FILTER (06) - ELECTRICAL SYSTEMS

1

91448C2

ALTERNATOR

ALTERNATOR ASSEMBLY - engine, 110 ampere, parts list page 4-38

1шт.

1

91448C2R

REMAN-ALTERNATOR

Reman for New PN 91448C2

1шт.

1

91448C2C

CORE-ALTERNATOR

Return number

1шт.

1

91448C2GV

ALTERNATOR

Value, 110 Amp

1шт.

2

J918544

SUPPORT

SUPPORT - mounting, alternator

1шт.

3

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

BOLT, HH, CL 8.8, M8 x 1.25 x 30

1шт.

5

J911485

SUPPORT

BRACE - alternator

1шт.

6

854-12050

BOLT,Hvy Hex, M12 x 50mm, Cl 10.9

BOLT, Hex Flg, M12 x 50, 10.9

1шт.

7

854-12065

BOLT,Hvy Hex, M12 x 65mm, Cl 10.9

BOLT - heavy hex flange, 12 - 1.75 x 65 mm, class 10.9

1шт.

8

829-2312

FLANGE NUT,M12 x 1.75, Flg, Cl 10

NUT - hex flange, 12 mm - 1.75, class 10

2шт.

9

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

12

A189616

PULLEY

PULLEY - alternator

1шт.

13

360-820

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

BOLT - hex flange, 1/2 NC x 1-1/4 inch, grade 8

1шт.

14

1982288C1

AIR HOSE

HOSE - air supply, 20 inch (508 mm) long, cut from 1338157CX bulk hose, see below

1шт.

15

214-1444

HOSE CLAMP,58.6mm - 82.5mm

CLAMP, HOSE, , Adj. #44, 2.31/3.25 Type F Worm

2шт.

16

353411R92

FILTER ASSY

FILTER - air, alternator

1шт.

17

1338707C1

SUPPORT

BRACKET - alternator filter

1шт.

18

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

BOLT - hex, 5/16 NC x 1-1/4 inch

2шт.

19

495-11034

WASHER,5/16", SAE

WASHER, 5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

20

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

21

425-105

NUT,5/16"-18, G5

NUT - hex, 5/16 inch NC

2шт.

25

1338890C1

COVER

COVER - end cover, alternator

1шт.

26

1964826C1

GROMMET

GROMMET - alternator

1шт.

30

892-11005

LOCK WASHER,M5

WASHER, LOCK, M5

4шт.

31

825-1405

NUT,M5, Cl 8

NUT, M5, Cl 8

4шт.

32

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

33

425-147

JAM NUT,Jam, 7/16"-14, G5

NUT - hex, jam, 7/16 inch NC

1шт.

34

892-11004

LOCK WASHER,M4

WASHER, LOCK, M4

1шт.

35

825-1404

NUT,M4, Cl 8

NUT, M4, Cl 8

1шт.

1338157CX

LARGE HOSE

HOSE,LARGE HOSE - air, bulk, 300 inch (7620 mm) long

1шт.
