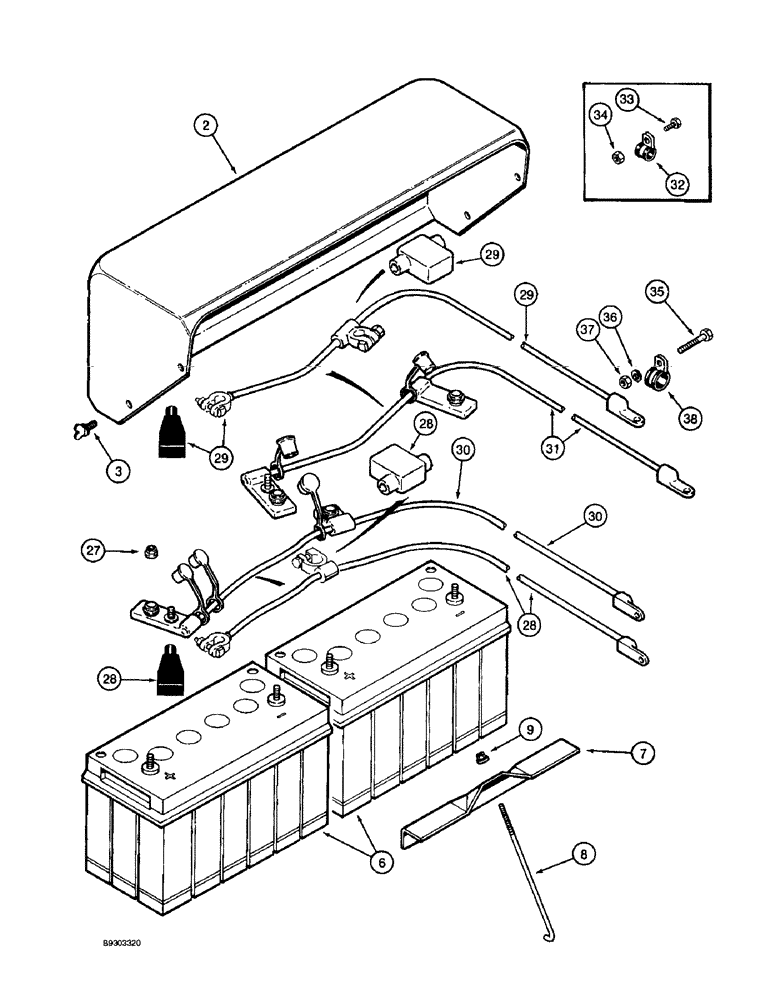

Запчасти Case IH 2055 (4-32) - BATTERY COVER, BATTERY AND CABLES (06) - ELECTRICAL SYSTEMS

2

1338635C2

LID

COVER - battery

1шт.

3

183-135

SCREW

- shoulder wing, 3/8 NC x 3/4 inch

4шт.

6

BMF31ES

BATTERY, DRY

BATTERY - 12 volt, with threaded stud terminals, if used (Replaces battery A186008)

2шт.

6a

BMF31E

DRY BATTERY

BATTERY - dry, 12 volt, with tapered post terminals, not shown, if used (Replaces battery A180406)

2шт.

7

A162337

CLAMP

- hold down, battery

1шт.

8

A147915

BOLT

- hook, clamp

1шт.

9

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

27

476074C1

NUT

- hex flange, 3/8 inch NC

6шт.

28

1345376C1

CABLE

- battery to starter, with two red boots, used with tapered post terminals

1шт.

29

1345377C1

CABLE

- battery to ground, with two black boots, used with tapered post terminals

1шт.

30

1983573C1

HARNESS

CABLE - battery to starter, used with threaded stud terminals

1шт.

31

1983574C1

HARNESS

CABLE - battery to ground, used with threaded stud terminals

1шт.

32

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

P-type, Closed 1/2", Insul, 1/2" Bolt

2шт.

33

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

34

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

35

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

36

492-11038

LOCK WASHER,3/8"

1шт.

37

425-106

NUT,3/8"-16, Cl 5

1шт.

38

299264C91

CLAMP

- P-type, cable retaining

1шт.
