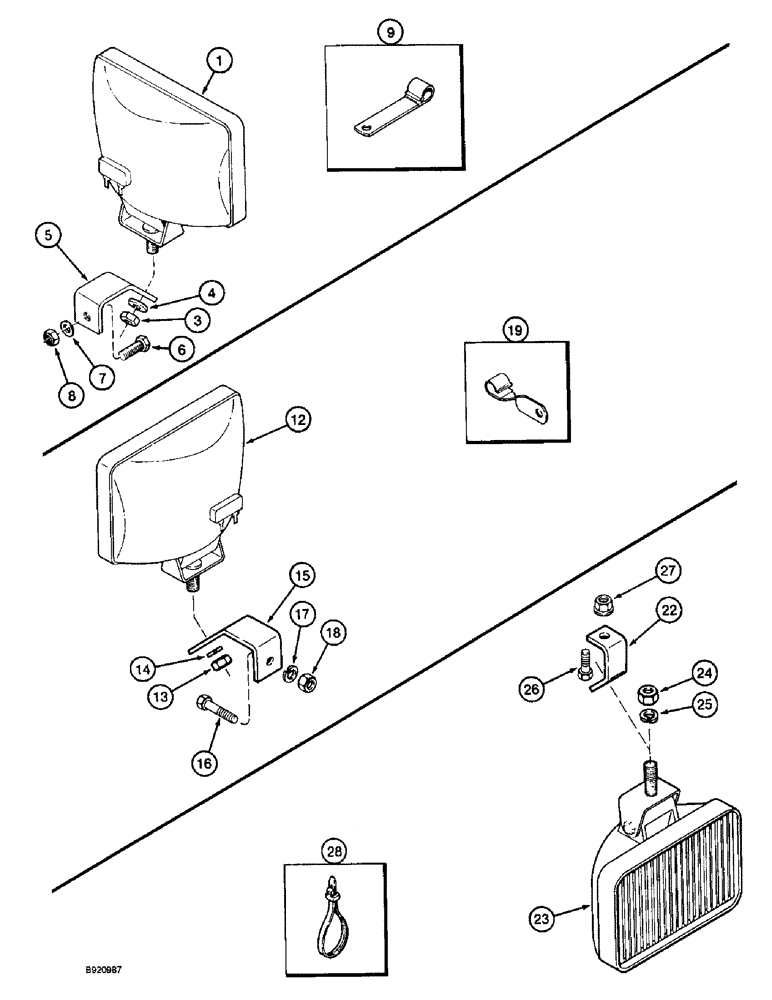

Запчасти Case IH 2055 (4-24) - LAMPS (06) - ELECTRICAL SYSTEMS

1

245897C91

LAMP, WORK

LAMP - basket, 80 x 30 Halogen

3шт.

3

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

5

561915R1

BRACKET

- lamp mounting

3шт.

6

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

3шт.

7

492-11038

LOCK WASHER,3/8"

3шт.

8

425-106

NUT,3/8"-16, Cl 5

3шт.

9

362126R1

CLIP

CLAMP - basket lamp harness

6шт.

12

245897C91

LAMP, WORK

LAMP - conveyor, 80 x 30 Halogen

1шт.

13

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, Conveyor lamp 1/2"-13, G5

1шт.

14

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Conveyor lamp 1/2"

1шт.

15

561915R1

BRACKET

- lamp CONVEYOR

1шт.

16

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch CONVEYOR LAMP

1шт.

17

492-11038

LOCK WASHER,3/8"

Conveyor Lamp 3/8"

1шт.

18

425-106

NUT,3/8"-16, Cl 5

Conveyor Lamp 3/8"-16, G5

1шт.

19

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLAMP - P-type, conveyor lamp harness

3шт.

22

561915R1

BRACKET

- lamp DRUM

1шт.

23

245897C91

LAMP, WORK

LAMP - drum, 80 x 30 Halogen

1шт.

24

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, Drum lamp 1/2"-13, G5

1шт.

25

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Drum lamp 1/2"

1шт.

26

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex, self-locking, special, 3/8 NC x 1 inch DRUM LAMP

1шт.

27

231-5146

FLANGE NUT,3/8"-16

Drum lamp Flg, USR, 3/8"-16

1шт.

28

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch long, Drum Lamp

2шт.
