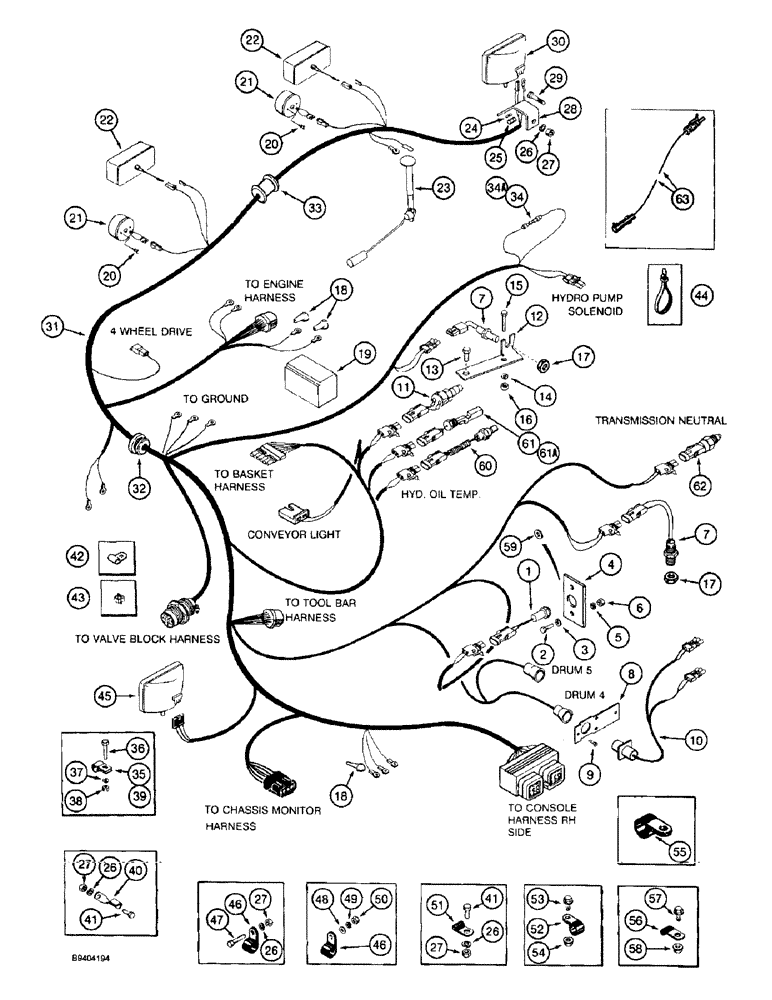

Запчасти Case IH 2055 (4-20) - CENTER TO REAR HARNESS (06) - ELECTRICAL SYSTEMS

1

1546498C1

SWITCH

- proximity, drum lift

1шт.

2

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

3

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

4

1546433C1

SUPPORT

BRACKET - proximity switch

1шт.

5

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

6

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

7

245193C2

SENSOR

TRANSMITTER - transducer, MPH and fan RPM

2шт.

8

1988723C1

SUPPORT

BRACKET - monitor

1-2шт.

9

281-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self-tapping, hex washer head, No. 10 NC x 1/2 inch

3-6шт.

10

1983613C1

HARNESS

- drum

1-2шт.

11

1983297C2

IGNITION SWITCH

SWITCH - limit, basket mast

1шт.

12

1546124C1

SUPPORT

BRACKET - RPM pickup

1шт.

13

413-1012

BOLT,Hex, 5/8" - 11 x 3/4", Gr 5

- hex, 5/8 NC x 3/4 inch

1шт.

14

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

15

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

16

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

- hex, self-locking, special, 1/2 inch NC, grade 8

1шт.

17

425-1512

JAM NUT,Jam, 3/4"-10, G5

- hex, jam, 3/4 inch NF

2шт.

18

399470R1

BOOT

- cable

3шт.

19

A186008

DRY BATTERY

- 12 volt, see page 4-32, item 6

1шт.

20

260-14512

SCREW,Cross Pan Hd, #10 x 3/4"

- self-tapping, pan Phillips, No. 10-16 x 3/4 inch

4шт.

21

131183C91

STOP LIGHT

LAMP ASSEMBLY - tail, parts list page 4-46

2шт.

22

130882C91

LAMP

LAMP ASSEMBLY - warning, parts list page 4-44

2шт.

23

121810C1

ELECTRICAL GAUGE

SENDER - fuel level gauge

1шт.

24

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

25

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

26

492-11038

LOCK WASHER,3/8"

7шт.

27

425-106

NUT,3/8"-16, Cl 5

7шт.

28

561915R1

BRACKET

- lamp mounting

1шт.

29

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

30

245897C91

LAMP, WORK

LAMP - flood lamp, 80 x 30 Halogen

1шт.

31

107753A2

HARNESS

-, Serial Range: center-rear

1шт.

32

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

- center to rear harness

1-3шт.

33

1321767C1

GROMMET

- 3/8 x 1-1/2 x 3/8 inch, tail lamp wire

1-3шт.

34

548239R2

RECTIFIER

DIODE - nonlocking, 2-31/64 inch long, console harness, if used

1шт.

34a

113699A1

RECTIFIER

- locking, 2-5/8 inch long, center harness, if used

1шт.

35

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type (Replaces A62209 clamp) (See Note) 1/2", Insul, 3/8" Bolt

1шт.

Used at frame cross member and right-hand side basket deck.

1шт.

36

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

37

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

38

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

39

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

P-type (See Note) 1/2", Insul, 1/2" Bolt

1шт.

Used at cross member behind fuel tank.

1шт.

40

363660R1

CLIP

CLAMP - harness

1шт.

41

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

42

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLAMP - P-type, 11/32 inch hole diameter, used at transmission

2шт.

43

862576R1

CLAMP

- tail lamp cables, if used

1шт.

44

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch, Ether cables to engine harness

20шт.

45

245897C91

LAMP, WORK

LAMP - drum lamp, 80 x 30 Halogen

1шт.

46

R50045

CLAMP

- top of right-hand side post and under hydraulic clamp

2шт.

47

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

48

495-21031

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

1шт.

49

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

50

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

51

229608C1

CLAMP - harness retaining, right-hand front (Replaces clamp 299269C91)

1шт.

52

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type, RH side post 3/4", Insul, 3/8" Bolt

2шт.

53

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

1шт.

54

231-5146

FLANGE NUT,3/8"-16

1шт.

55

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

P-type 3/8", Insul, 5/16" Bolt

1шт.

56

F14858

CLAMP,J, 7/16" Insul, 3/8" Bolt

- at drum hanger

2шт.

57

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

2шт.

58

231-5146

FLANGE NUT,3/8"-16

2шт.

59

495-81202

WASHER,1 9/32" x 1 3/4" x .060"

- flat, 1-9/32 x 1-3/4 x 1/16 inch

2шт.

61

A187576

SWITCH

- hdyraulic oil temperature

1шт.

61

A187668

SWITCH

- oil level, dot on threaded plug, if used

1шт.

61a

122428A1

SWITCH

- hydraulic oil level, arrow on threaded plug, if used

1шт.

62

1983575C1

SWITCH

- transmission neutral

1шт.

63

136058A1

HARNESS

- extension, turn signal, 5 Row Wide

2шт.
