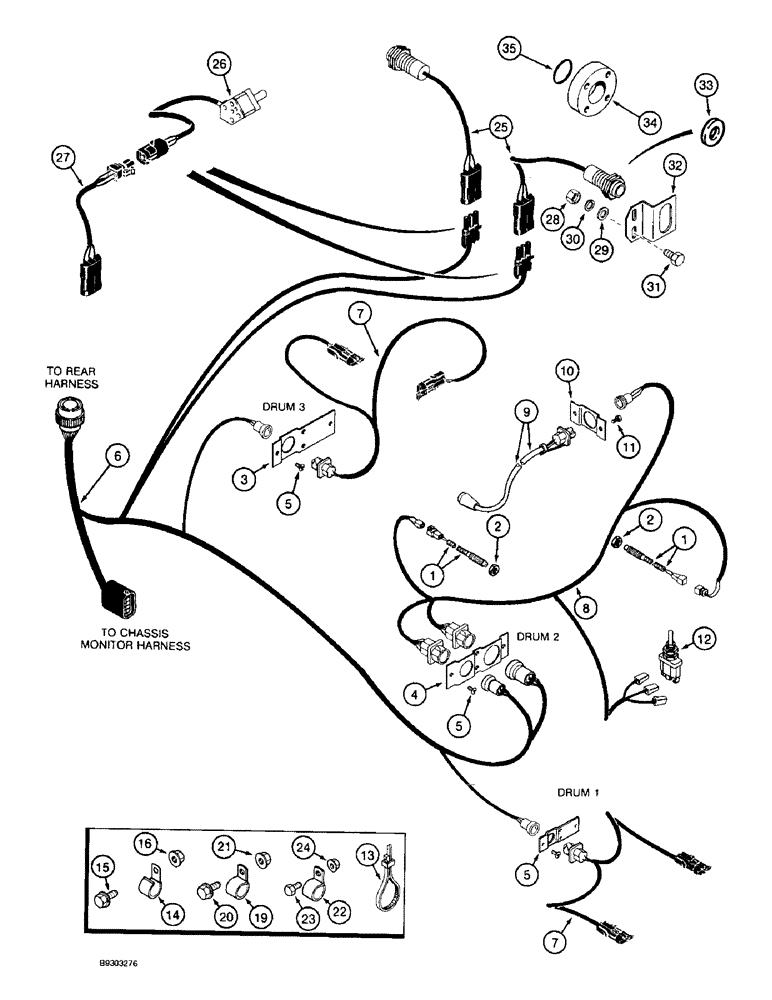

Запчасти Case IH 2055 (4-18) - LEFT-HAND TOOL BAR HARNESS (06) - ELECTRICAL SYSTEMS

1

1983681C1

SENSOR

GAUGE ASSEMBLY - rotor speed

10шт.

2

84116C1

NUT

- hex, self-locking, 3/4 inch NF

10шт.

3

1988723C1

SUPPORT

BRACKET - harness mounting

4шт.

4

1988724C1

SUPPORT

BRACKET - harness mounting

1шт.

5

281-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self-tapping, hex washer head, No. 10 NC x 1/2 inch

5шт.

6

107395A2

HARNESS

- left-hand tool bar

1шт.

7

1983613C1

HARNESS

- drum

4шт.

8

1983614C2

HARNESS

- drum with tether (Replaces harness 1983614C1)

1шт.

9

1983416C2

SWITCH

- remote tether

1шт.

10

91795C1

SUPPORT

BRACKET - connector mounting

1шт.

11

463-1108

SCREW,Hex Hd, #10-24 x 1/2"

- machine, hex head, No. 10 NC x 1/2 inch

2шт.

12

1983686C1

SWITCH

- drum spread

1шт.

13

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch, Monitor harness

8шт.

14

F14858

CLAMP,J, 7/16" Insul, 3/8" Bolt

- harness to drum hanger, if used

2шт.

15

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch, If used

2шт.

16

231-5146

FLANGE NUT,3/8"-16

If used Flg, USR, 3/8"-16

2шт.

17

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

P-type, Harness to conveyor pipe, Not shown 3/8", Insul, 5/16" Bolt

1шт.

18

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, if used, not shown

1шт.

19

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type, Harness to LH side support post 3/4", Insul, 3/8" Bolt

1шт.

20

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

1шт.

21

231-5146

FLANGE NUT,3/8"-16

1шт.

22

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

P-type 1 1/2", Insul, 3/8" Bolt

2шт.

23

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

2шт.

24

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

25

1546498C1

SWITCH

- proximity, drum lift and drum tilt

2шт.

26

1983691C2

SWITCH

- drum lift and drum tilt, no longer available, order 111669A1 kit, see below

2шт.

27

109066A3

HARNESS

- used with 1983691C2 switch only

2шт.

28

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

29

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

30

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

31

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

32

1546432C1

SUPPORT

BRACKET - switch mounting

2шт.

33

495-81202

WASHER,1 9/32" x 1 3/4" x .060"

- flat, 1-9/32 x 1-3/4 x 1/16 inch

4шт.

34

112291A1

COVER

- switch port, if used

2шт.

35

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

If used -018, 90 Duro, .739" ID x .070" Thk

2шт.

111669A1

PACKAGE

KIT - switch, includes items 25 and 28-35

1шт.
