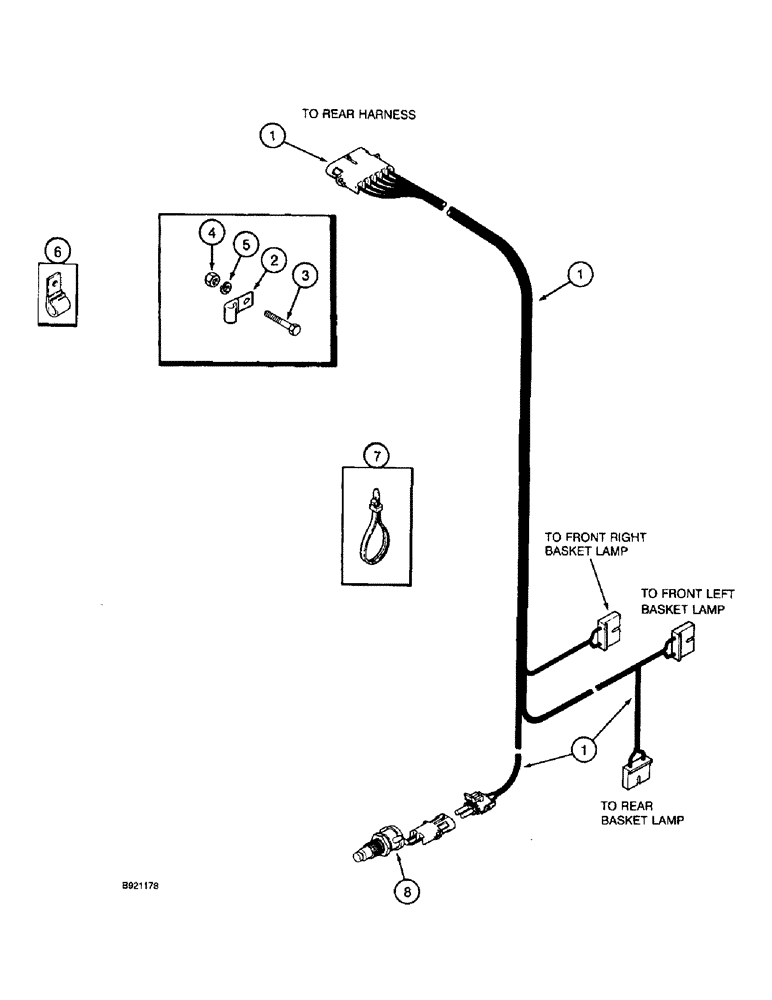

Запчасти Case IH 2055 (4-14) - BASKET HARNESS (06) - ELECTRICAL SYSTEMS

1

1987515C2

HARNESS

- basket

1шт.

2

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type 1/2", Insul, 3/8" Bolt

4шт.

3

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

4

425-106

NUT,3/8"-16, Cl 5

2шт.

5

492-11038

LOCK WASHER,3/8"

2шт.

6

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

9шт.

7

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

1шт.

8

1983297C2

IGNITION SWITCH

SWITCH - basket door limit

1шт.
