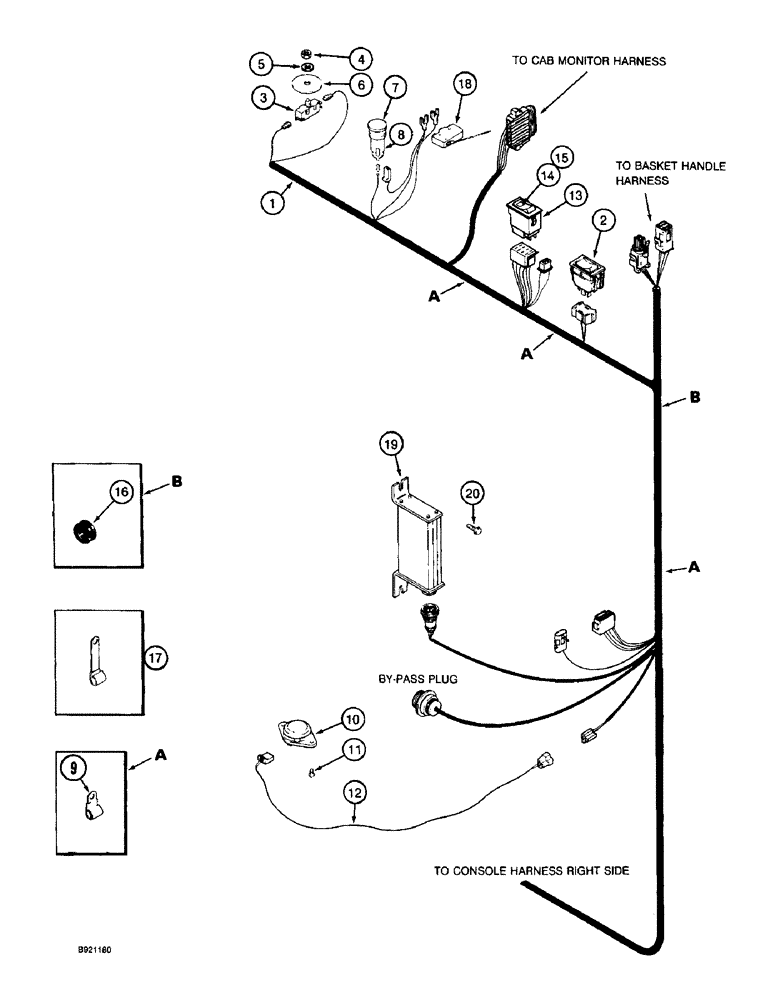

Запчасти Case IH 2055 (4-12) - CONSOLE HARNESS, LEFT-HAND SIDE (06) - ELECTRICAL SYSTEMS

1

108416A4

HARNESS

- console (Replaces harnesses 108416A2 and 108416A3)

1шт.

2

245012C1

SWITCH

- rocker, basket lamps

1шт.

3

1983341C1

SWITCH

- parking brake warning lamp

1шт.

4

A39888

NUT

- hex, special, 3/8-32, steel (Replaces nut 68107H)

1шт.

5

495-51041

WASHER,3/8"

- flat, 13/32 x 47/64 x 1/16 inch

1шт.

6

166817C2

WASHER

- flat, 9.0 x 51.0 x 1.6 mm, parking brake warning

1шт.

7

378781R1

LIGHTER, CIGARETTE

ELEMENT - pop up, lighter

1шт.

8

245576C1

LIGHTER, CIGARETTE

LIGHTER - cigar, includes item 7

1шт.

9

358986R1

CABLE CLIP

CLAMP - P-type, left-hand console harness

3шт.

10

1983395C1

IGNITION SWITCH

SWITCH - seat

1шт.

11

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

- machine, pan Phillips, 1/4 NC x 1/2 inch

2шт.

12

1345209C1

HARNESS

- seat switch

1шт.

13

1983417C1

TOGGLE SWITCH

SWITCH - operator presence bypass

1шт.

14

1983606C1

SYMBOLS

LENS - yellow

1шт.

15

3141107R1

BULB,W5/1.2, 12V, 1.2W

- 2 watt

1шт.

16

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

- lamp harness, left-hand console

1шт.

17

362126R1

CLIP

CLAMP - harness, under platform front edge

2шт.

18

1310827C2

SWITCH

- lockout, four wheel drive

1шт.

19

1983637C1

CASE

MODULE - engine R.P.M.

1шт.

20

281-1476

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/8"

SCREW - self-tapping, hex washer head, 1/4 NC x 3/8 inch

2шт.
