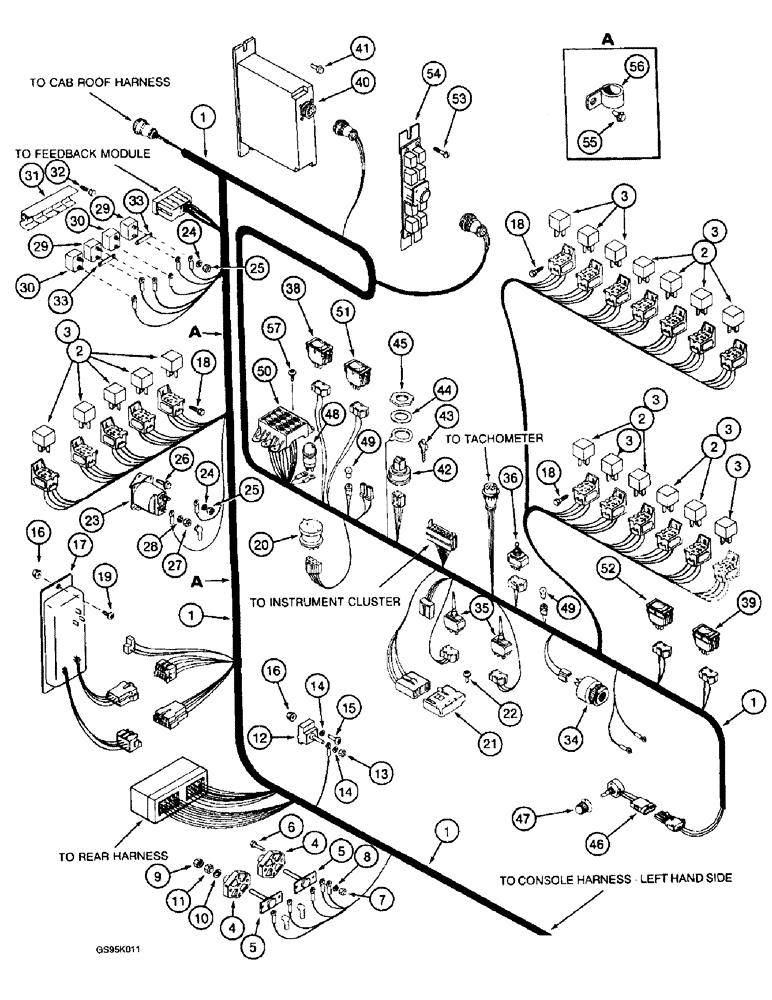

Запчасти Case IH 2055 (4-08) - CONSOLE HARNESS, RIGHT-HAND SIDE (06) - ELECTRICAL SYSTEMS

1

108416A4

HARNESS

- console (Replaces harnesses 108416A2 and 108416A3)

1шт.

2

146461C1

RELAY

- 12 volt, no longer used, order item 3

13шт.

3

1987409C2

RELAY

- electrical, with diode or use 1301458C1 (Qty. 5-18)

1шт.

4

468647C2

BLOCK ASSY.

BLOCK - junction, power and ground (Replaces junction block 468647C1)

2шт.

5

1964561C1

BAR

- junction block buss

2шт.

6

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

8шт.

7

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

12шт.

8

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

9

425-146

JAM NUT,3/8" - 16, Gr 5

- hex, jam, 3/8 inch NC

2шт.

10

492-11038

LOCK WASHER,3/8"

2шт.

11

425-106

NUT,3/8"-16, Cl 5

2шт.

12

245539C1

CONNECTION

BLOCK - junction, clean ground

1шт.

13

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

14

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

15

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

- machine, pan Phillips, No. 10 NC x 3/4 inch

1шт.

16

231-51409

SERRATED NUT,Flg, USR, #10-24

3шт.

17

1994871C1

GOVERNOR

RECTIFIER - load dump and diode logic

1шт.

18

276-2456

SELF-TAP SCREW,Hex Hd, #10 x 3/8"

SCREW - self-tapping, hex head, No. 10 NC x 3/8 inch, if used

6шт.

18

281-6456

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/8"

SCREW - self-tapping, hex washer head, No. 10 NF x 3/4 inch, if used

6шт.

19

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

- machine, pan Phillips, No. 10 NC x 3/4 inch

2шт.

20

107200C2

LIGHT SWITCH

SWITCH - lamp

1шт.

21

121770C2

TRANSMITTER

MODULE - low coolant, no longer available, order A162294 module

1шт.

21

A162294

CONNECTOR, ELEC

MODULE - low coolant (Replaces 121770C2 module)

1шт.

22

260-1448

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

SCREW - self-tapping, pan Phillips, No. 8-18 x 1/2 inch

2шт.

23

107655C1

SOLENOID SWITCH

SWITCH - magnetic, cab power

1шт.

24

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

9шт.

25

225-14210

NUT,#10-32

9шт.

26

281-1476

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/8"

SCREW - self-tapping, hex washer head, 1/4 NC x 3/8 inch

2шт.

27

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

28

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

29

245765C1

CIRCUIT-BREAKER,30A

BREAKER - circuit, 30 ampere

2шт.

30

245763C1

CIRCUIT-BREAKER,20A

BREAKER - circuit, 20 ampere

2шт.

31

245870C1

BRACKET

- circuit breaker

1шт.

32

276-2456

SELF-TAP SCREW,Hex Hd, #10 x 3/8"

SCREW - self-tapping, hex head, No. 10 NC x 3/8 inch, if used

2шт.

32

281-6456

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/8"

SCREW - self-tapping, hex washer head, No. 10 NF x 3/4 inch, if used

2шт.

33

1301157C1

BAR

- circuit breaker (Replaces bar 245860C1)

2шт.

34

245854C1

BUZZER

ALARM - audible, or use 1546441C1

1шт.

34

1546441C1

BUZZER

ALARM - audible, or use 245854C1

1шт.

35

121541C1

SWITCH

- drum control

2шт.

36

1301521C1

SWITCH

- drum lockout

1шт.

38

245219C1

SWITCH

- drum lube

1шт.

39

245855C1

SWITCH

- rocker, compactor

1шт.

40

1987595C2

CASE

MODULE - cotton compactor control (Replaces module 1987595C1)

1шт.

41

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW - self-tapping, hex washer head, 1/4 NC x 1/2 inch

2шт.

42

1252476C1

SWITCH

- ignition

1шт.

43

131313C1

KEY, IGNITION

KEY - ignition

1шт.

44

375431R1

LOCK WASHER

- flat, special, 19/32 x 1 inch x 11 gauge

1шт.

45

365502R1

NUT

- flat hex, special, switch mounting

2шт.

46

245385C1

POTENTIOMETER,1000 Ohm

Single, Compactor Rate Control 1000 Ohm

1шт.

47

1345235C1

BUTTON

KNOB - control

1шт.

48

453453C1

SWITCH

- push button, ether start

1шт.

49

A14553

BULB

- No. 57

6шт.

50

245435C1

FUSE HOLDER

BLOCK ASSEMBLY - fuse, parts list page 4-22

1шт.

51

245012C1

SWITCH

- rocker, 4 wheel drive

1шт.

52

92148C1

SWITCH

- fan

1шт.

53

470-11012

SCREW,Pan HD, #10 - 24 x 3/4"

- machine, pan head slotted, No. 10 NC x 3/4 inch

1шт.

54

1983419C3

CONTROL UNIT

MODULE - operator presence system

1шт.

55

281-1476

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/8"

SCREW - self-tapping, hex washer head, 1/4 NC x 3/8 inch

2шт.

56

D40471

CLAMP

- P-type, harness at rear wall

2шт.

57

261-1478

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1/2"

SCREW - self-tapping, pan Phillips, 1/4 NC x 1/2 inch

2шт.
