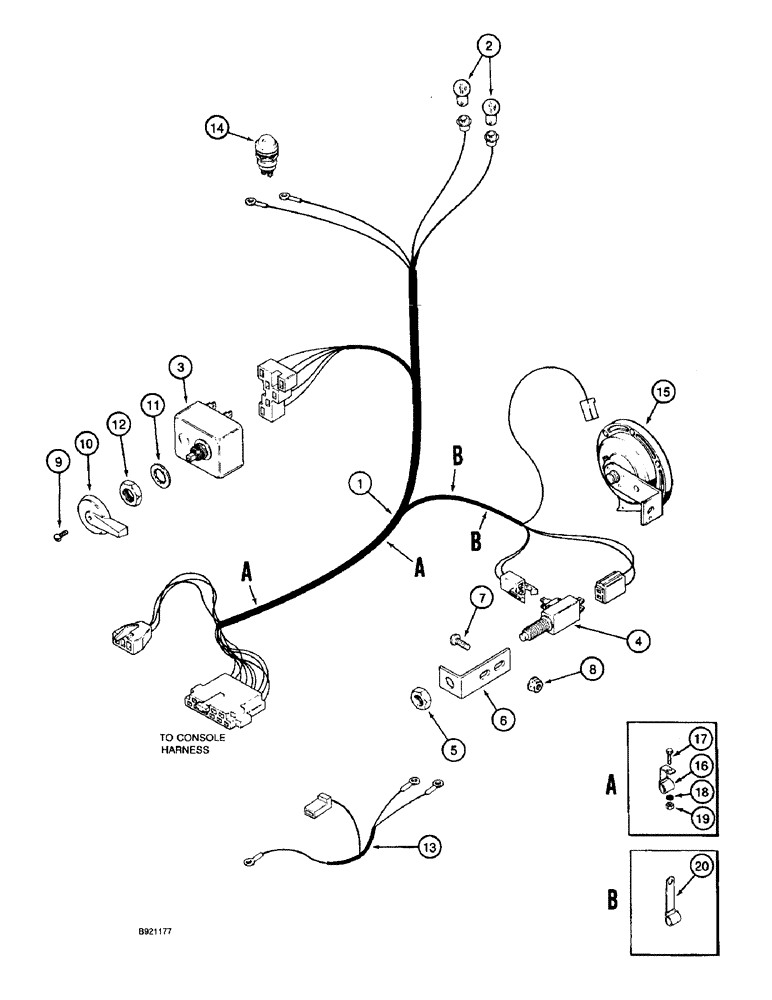

Запчасти Case IH 2055 (4-06) - STEERING COLUMN HARNESS (06) - ELECTRICAL SYSTEMS

1

1983685C1

HARNESS

- steering column

1шт.

2

200557H1

BULB,C2V, #1815, 14V

- lamp, No. 1815

2шт.

3

1987422C1

SWITCH

- turn signal, replaces 131209C91 switch, alternate with 131066C91 switch

1шт.

3

131066C91

SWITCH

- turn signal, alternate with 1987422C1 switch

1шт.

4

131107C1

SWITCH

- Foot-N-Inch pedal

1шт.

5

425-158

JAM NUT,Jam, 1/2"-20, G5

2шт.

6

1327674C1

BRACKET

ANGLE - switch, mounting

1шт.

7

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

2шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

A77185

KIT

- turn signal switch knob (Replaces kit 71485C1)

1шт.

9

NSS

NOT SOLD SEPARAT

SCREW - slotted

1шт.

10

NSS

NOT SOLD SEPARAT

KNOB - switch

1шт.

11

NSS

NOT SOLD SEPARAT

WASHER - lock

1шт.

12

NSS

NOT SOLD SEPARAT

NUT - hex

1шт.

13

1964933C1

HARNESS

- horn

1шт.

14

453453C1

SWITCH

- push button, horn

1шт.

15

411949C91

HORN

- warning, 12 volt (Replaces horn 166166R1)

1шт.

16

370383R1

CLIP

CLAMP - harness, under platform

4шт.

17

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

18

492-11038

LOCK WASHER,3/8"

1шт.

19

425-106

NUT,3/8"-16, Cl 5

1шт.

20

362126R1

CLIP

CLAMP - harness, under platform front edge

2шт.
