Запчасти Case IH 2055 (4-04) - ENGINE HARNESS (06) - ELECTRICAL SYSTEMS

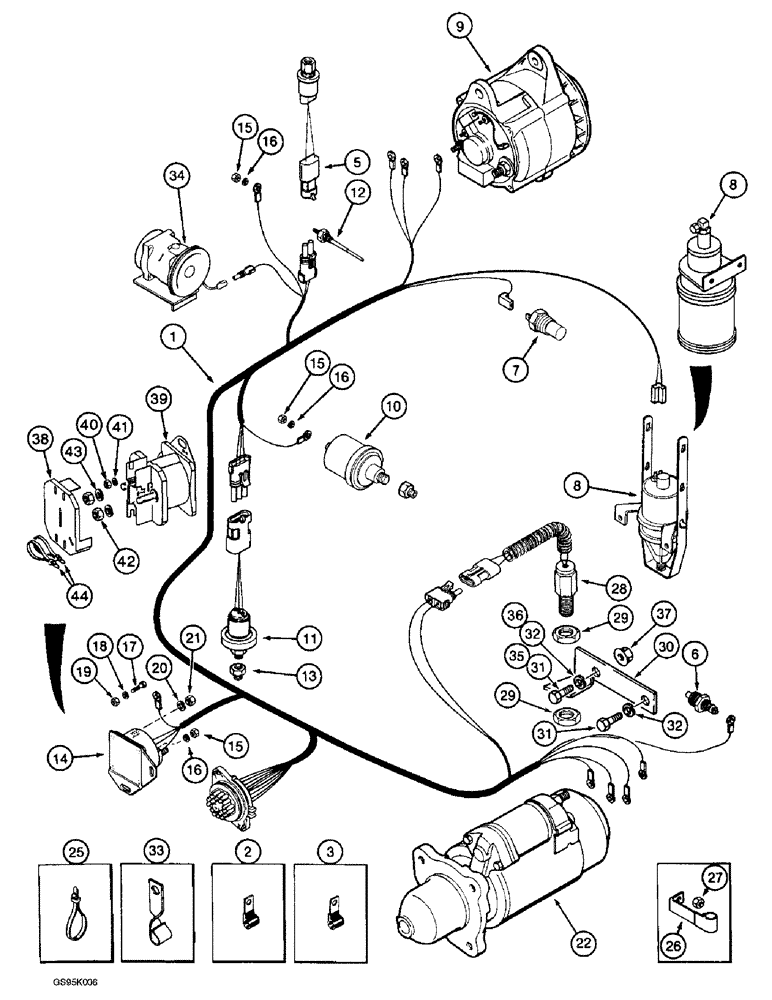

Схема запчастей Case IH 2055 - (4-04) - ENGINE HARNESS (06) - ELECTRICAL SYSTEMS
40
36
39
32
37
5
6
25
12
20
17
33
9
15
42
8
13
1
43
30
38
8
7
41
28
21
31
44
29
18
16
22
2
15
14
31
26
15
11
10
29
16
16
19
27
3
35
34
32

Артикул

Название

Примечание

Количество

1

1983648C1

HARNESS

HARNESS - engine

1шт.

2

515-30222

CLAMP,7/8", 1/2" Bolt

CLAMP, , P-type 7/8", 1/2" Bolt

1-2шт.

3

362123R1

CLIP

CLAMP - engine harness

3шт.

5

92038C1

SWITCH, A/C HIGH PRE

SWITCH - high pressure, air conditioner

1шт.

6

121756C2

SENSOR

SENSOR - coolant temperature

1шт.

7

1345488C2

PRESSURE SWITCH

SWITCH - coolant, lamp and alarm (Replaces switch 1345488C1)

1шт.

8

REF

INSTRUCTION

SOLENOID - ether injection, parts list page 2-14 or 2-15A

1шт.

9

91448C2

ALTERNATOR

ALTERNATOR ASSEMBLY - engine, 110 ampere, parts list page 4-38

1шт.

9

91448C2GV

ALTERNATOR

Value, 110 Amp

1шт.

10

1341330C2

TRANSMITTER

SENSOR - engine oil pressure

1шт.

11

1964960C1

PRESSURE SWITCH

SWITCH - oil pressure and hydraulic lock

1шт.

12

A145513

SENSOR

SENSOR - probe, coolant level

1шт.

13

221-1093

REDUCER,Hex, 3/4" x 1/2" NPT

REDUCER - pipe, 3/4 male x 1/2 inch female

1шт.

14

A39079

SOLENOID

SOLENOID - magnetic relay, starter, no longer used, order kit 178149A1 below

1шт.

15

225-14210

NUT,#10-32

NUT, #10-32

1шт.

16

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

17

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

BOLT - hex, 1/4 NC x 1 inch

2шт.

18

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

19

425-104

NUT,1/4"-20, Cl 5

NUT - hex, 1/4 inch NC

2шт.

20

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

21

425-105

NUT,5/16"-18, G5

NUT - hex, 5/16 inch NC

2шт.

22

A187728

STARTING MOTOR

STARTER ASSEMBLY - engine, parts list page 4-36

1шт.

22

AR187728

REMAN-STARTER

Remanufactured Starter

1шт.

22

AC187728

CORE-STARTER

Return Part Number

1шт.

22

A187728GV

STARTER MOTOR

Value

1шт.

25

306132C1

CABLE TIE,14.5" L

CABLE STRAP STRAP - tie, 14 inch

2шт.

26

370383R1

CLIP

CLAMP - harness, long

1шт.

27

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

NUT - hex, 8 mm - 1.25, class 10

1шт.

28

1252494C2

TRANSMITTER

SENSOR - engine RPM

1шт.

29

425-1512

JAM NUT,Jam, 3/4"-10, G5

NUT - hex, jam, 3/4 inch NF

2шт.

30

1546124C1

SUPPORT

BRACKET - RPM pickup

1шт.

31

413-1012

BOLT,Hex, 5/8" - 11 x 3/4", Gr 5

BOLT - hex, 5/8 NC x 3/4 inch

1шт.

32

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

33

269980R1

CLIP

CLIP - engine harness center

1шт.

34

REF

INSTRUCTION

COMPRESSOR ASSEMBLY - air conditioning, parts list page 9E-34

1шт.

35

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

BOLT, Hex, 1/2"-13 x 1 3/4", G5

1шт.

36

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , If used 1/2"

1шт.

37

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

NUT - hex, self-locking, special, 1/2 inch NC, grade 8

1шт.

178149A1

SOLENOID SWITCH

KIT - solenoid switch, with barrier and cover (Replaces solenoid A39079)

1шт.

38

178148A1

COVER

COVER - solenoid switch

1шт.

39

183038A1

SOLENOID

SWITCH - solenoid with barrier

1шт.

40

225-14210

NUT,#10-32

NUT, #10-32

1шт.

41

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

42

425-105

NUT,5/16"-18, G5

NUT - hex, 5/16 inch NC

2шт.

43

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

44

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP STRAP - tie, 15 inch, nylon

2шт.

Выбрано товаров: 46
