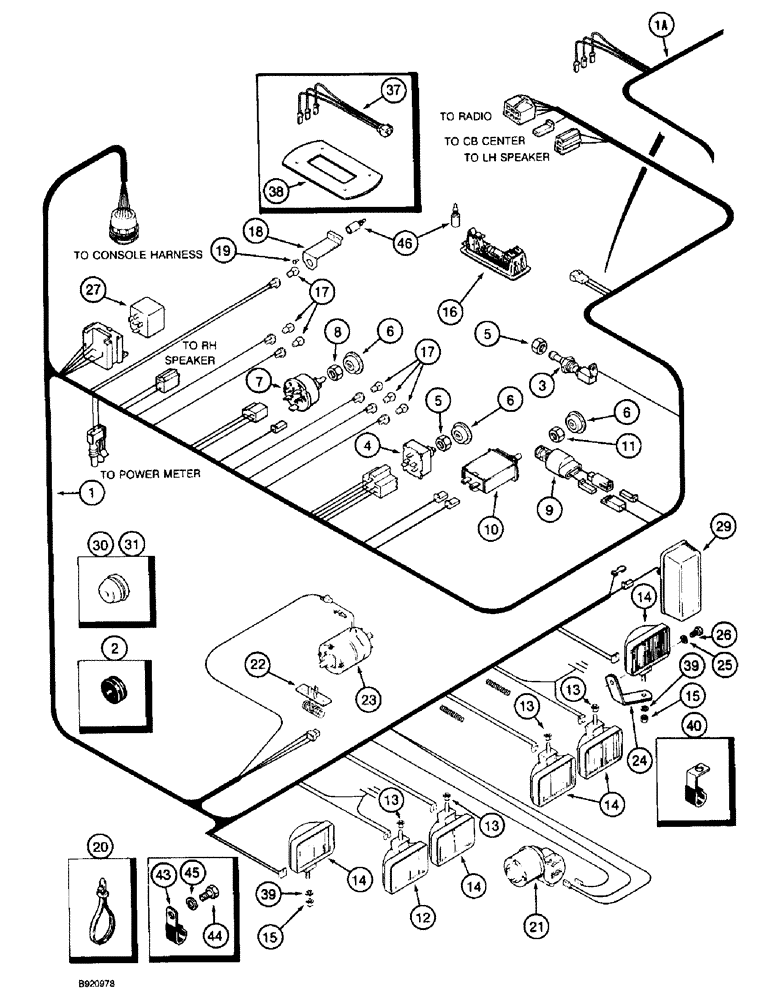

Запчасти Case IH 2055 (4-02) - CAB ROOF HARNESS (06) - ELECTRICAL SYSTEMS

1

84311C6

HARNESS

- cab roof, prior to P.I.N. JJC139015

1шт.

1a

1994715C1

HARNESS

- cab roof, P.I.N. JJC139015 and after

1шт.

2

3063674R1

GROMMET

- blower harness

1шт.

3

245175C1

SWITCH

- door dome lamp control

1шт.

4

168822C2

SWITCH

- blower

1шт.

5

109311H

JAM NUT

- hex, jam, 7/16 inch NF

1шт.

6

111282C1

KNOB

- blower, control, wiper and thermostat switch

3шт.

7

245734C1

SWITCH

- wiper control

1шт.

8

109311H

JAM NUT

- hex, jam, 7/16 inch NF

1шт.

9

111267C4

SWITCH, A/C LOW PRES

SWITCH - air conditioner, low pressure

1шт.

9

111267C4GV

SWITCH, A/C LOW PRES

SWITCH - air conditioner, low pressure

1шт.

10

109268C2

SWITCH

- cab thermostat

1шт.

11

109311H

JAM NUT

- hex, jam, 7/16 inch NF

2шт.

12

91666C91

INTERIOR LIGHT

LAMP - fog, 40 x 7 Halogen, used with 84311C6 cab roof harness, item 1

1шт.

12

245555C1

LAMP

- fog, 40 x 7 Halogen, used with 1994715C1 cab roof harness, item 1A

1шт.

13

325-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

4шт.

14

245897C91

LAMP, WORK

LAMP - 80 x 30 Halogen, work and outer flood

5шт.

15

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

16

1983391C1

LAMP,12V, 10W

ASSEMBLY - dome, parts list page 4-46

1шт.

17

A14553

BULB

- No. 57 (Replaces lamp 127934)

3-5шт.

18

1281975C1

BRACKET

SUPPORT - instrument panel bulb mounting

4-5шт.

19

260-5448

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

SCREW - self-tapping, pan Phillips, No. 8-18 x 1/2 inch

4-5шт.

20

111619C1

STRAP

- adjustable, tie

6шт.

21

1276130C92

WIPER MOTOR

MOTOR ASSEMBLY - wiper, includes bracket, parts list page 4-48

1шт.

22

1255876C1

RESISTOR

- blower motor

1шт.

23

142990C2

MOTOR, ELECTRIC

MOTOR - blower, 12 volt, see page 9E-26 for blower assembly parts list

1шт.

190333A1R

REMAN-ELECTRIC MOTOR,12V

2055, Reman For New P/N's 142990C2 & 190333A1,

1шт.

190333A1C

CORE-ELECTRIC MOTOR,12V

Return Number

1шт.

24

1283289C1

ANGLE

BRACKET - mounting

2шт.

25

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , If used 1/2"

2шт.

26

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

27

1983394C2

RELAY

- air conditioner compressor cutoff, 12 volt (Replaces relay 146461C1)

1шт.

29

REF

INSTRUCTION

LAMP ASSEMBLY - warning, see page 4-44 for correct assembly and parts list

1шт.

30

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

- lamp harness, right-hand

1шт.

31

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

- lamp harness, left-hand, 5/8 inch ID

1шт.

36

260-53424

SELF-TAP SCREW,Cross Pan Hd, #8 x 1 1/2"

SCREW - self-tapping, pan Phillips, No. 8-18 x 1-1/2 inch, dome lamp plate, not shown

4шт.

37

1983386C1

HARNESS

- dome lamp adapter, used with 84311C6 harness, item 1

1шт.

38

1979628C1

LARGE PLATE

PLATE - dome lamp

1шт.

39

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

40

370383R1

CLIP

CLAMP - retaining, rubber covered

4шт.

43

371036R1

CLIP

CLAMP - retaining, rubber covered

1шт.

44

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch

1шт.

45

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

46

117995C1

PACKAGE

KIT - trim fastener, includes 5 fasteners

1шт.
