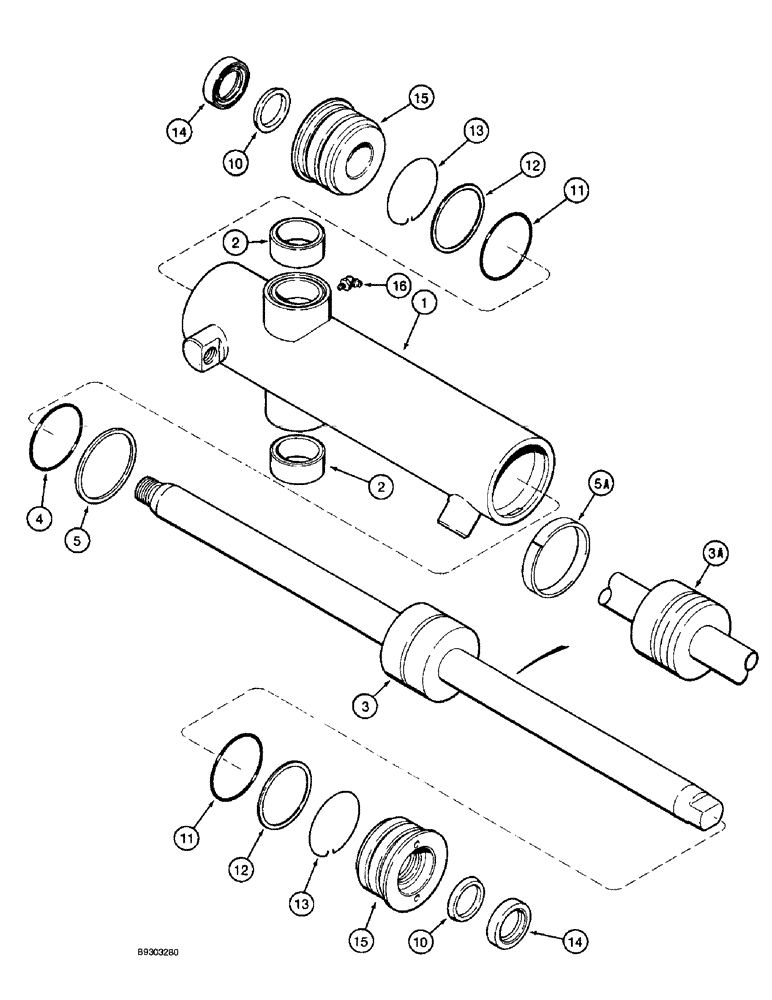

Запчасти Case IH 2055 (5-18) - STEERING CYLINDER ASSEMBLY (04) - STEERING

93194C8

STEERING CYLINDER

CYLINDER ASSEMBLY - steering, 2-5/8 (67) ID x 9-3/4 inch (245 mm) stroke (Replaces cylinder assemblies 93194C6 and 93194C7)

1шт.

93194C9R

REMAN-HYD CYLINDER

2055 CASE IH COTTON EXPRESS COTTON PICKER, CYLINDER ASSEMBLY - steering, 2-5/8 (67) ID x 9-3/4 inch (245 mm) stroke (4/93-), Reman For New PN 93194C8

1шт.

93194C9C

CORE-HYD CYLINDER

Return Number

1шт.

1

1954124C4

HYD CYL SLEEVE

TUBE ASSEMBLY - cylinder body (Replaces tubes 1954124C2 and 1954124C3)

1шт.

2

1255304C1

BUSHING

- pivot

2шт.

3

1255306C4

PISTON ROD

ROD - piston, cylinder, single groove, no longer available, order 1255306C5 rod and 80448C2 seal kit below

1шт.

3a

1255306C5

PISTON ROD

ROD - piston, cylinder, double groove (Replaces rod 1255306C4)

1шт.

80448C2

SEAL KIT

KIT - seal (Replaces kit 80448C1)

1шт.

4

238-5139

O-RING,0.103" Thk x 2.175" ID, -139, Cl 5, 75 Duro

1шт.

5

1255309C1

SEAL,61.19mm ID x 67.28mm OD x 2.92mm Thk

SEAL - piston, cylinder

1шт.

5a

111829A1

PISTON RING

RING - wear, piston, used with 1255306C5 rod only, item 3A

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - piston rod

2шт.

11

238-5143

O-RING,0.103" Thk x 2.425" ID, -143, Cl 5, 75 Duro

2шт.

12

1255311C1

WASHER

- backup

2шт.

13

1255312C1

RETAINING WIRE

WIRE - retaining, 8-1/16 inch (205 mm) long, cut from 140600C1 bulk wire, see below

2шт.

14

D95141

WIPER SEAL

SEAL - wiper, piston rod

2шт.

15

1255310C1

HEAD (CYLINDER)

GLAND - end, cylinder

2шт.

16

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING - grease, 65 degree, 3/16 drive type x 23/32 inch

2шт.

140600C1

RETAINING WIRE

WIRE - retaining, bulk, 12-1/2 inch (319 mm) long

1шт.
