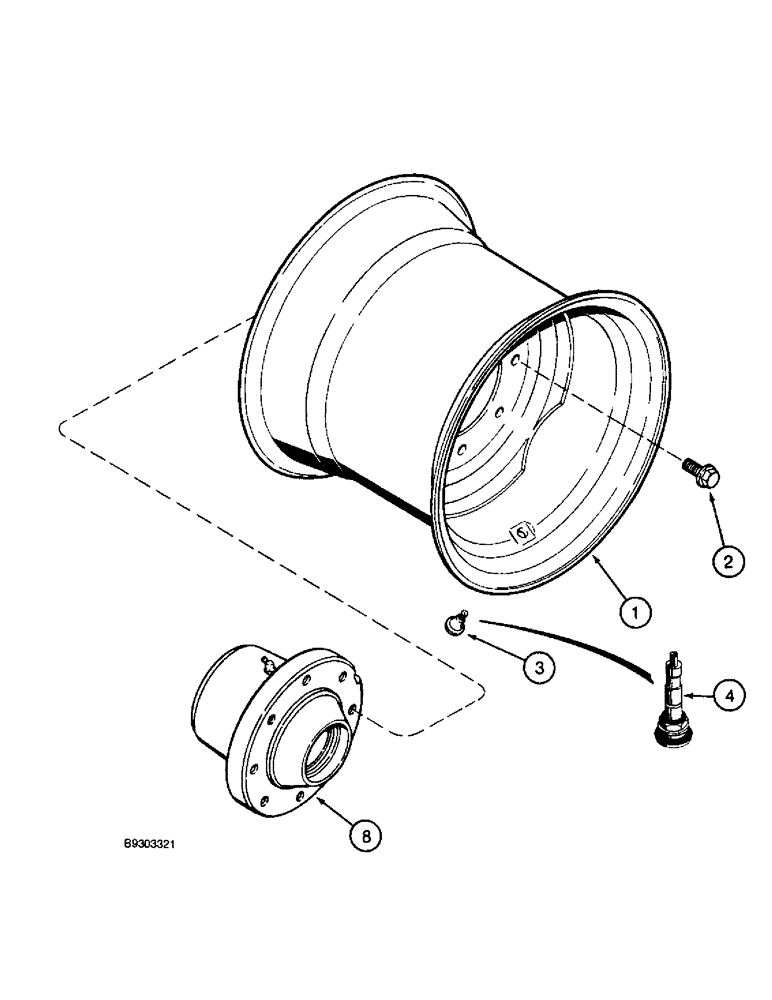

Запчасти Case IH 2055 (5-16) - REAR STEERING WHEEL AND HUB (04) - STEERING

1

188759C2

RIM

WHEEL - rear, 10 x 24 inch (for 11.25 x 24 inch tire)

2шт.

1

1541719C1

RIM

WHEEL - rear, 12 x 24 inch (for 14.9 x 24 tire) (See Note)

2шт.

All 5 row narrow and only 4 row wide machines ordered with 24.5-32 16 PR LS2 optional drive tires.

1шт.

2

414064C1

BOLT,Hex, 9/16" - 18 x 1 1/2"

- hex flange, special

16шт.

3

A38261

VALVE

- stem, tire inflation, for 5/8 inch hole, used with 1270628C1 wheel

2шт.

4

179482C1

VALVE STEM

VALVE - inflation, 7/16 inch diameter, for 5/8 inch hole, used with 1541719C1 wheel

2шт.

8

1259528C1

HUB

ASSEMBLY - wheel, rear, parts list page 5-12

2шт.
