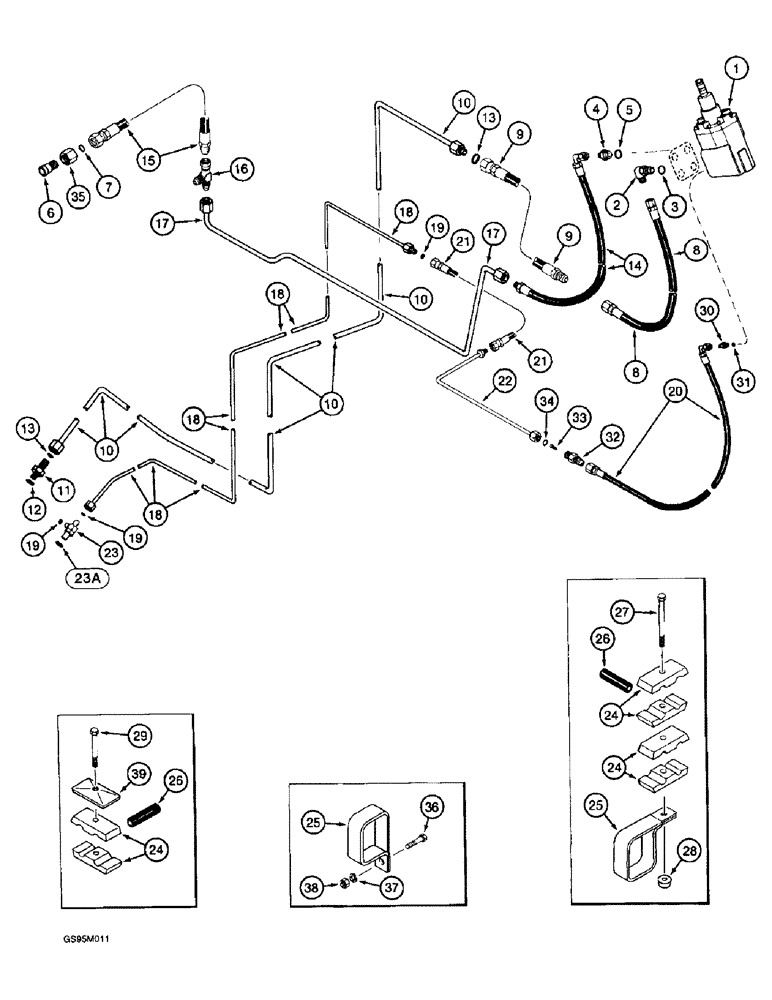

Запчасти Case IH 2055 (5-06) - STEERING SYSTEM, SUPPLY, RETURN AND SENSING SYSTEM (04) - STEERING

1

1978328C3

PUMP

ASSEMBLY - steering, parts list page 5-8

1шт.

2

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring boss

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

6

201-142

REDUCER,11/16"-16 Male x 1 3/16"-16 Fem, ORFS

ADAPTER - reducing, 11/16-16 face seal x 1-3/16-12 inch female face

1шт.

7

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

8

1979138C1

HOSE

- steering, pressure, front, 42 inch (1068 mm) long

1шт.

9

1988951C2

HOSE

- steering, supply, middle, 83-21/32 inch (2125 mm) long

1шт.

10

1546031C1

TUBE,980, 1305.9 mm Length

- steering, supply valve

1шт.

11

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Adapter - straight 11/16"-16 ORFS x 9/16"-18 ORB

1шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

13

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

14

1977123C1

HOSE

- steering, return, front, 46-11/32 inch (1177 mm) long

1шт.

15

1988952C1

HOSE

- steering, return, middle, 46-1/4 inch (1175 mm) long

1шт.

16

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

- 9/16-18 inch flare branch x flare x adj straight thread

1шт.

17

1285364C3

TUBE

- steering, tank, middle

1шт.

18

1546032C1

TUBE,617.8, 1254.9 mm Length

- steering, sensing valve

1шт.

19

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face end -011, 90 Duro, .301" ID x .070" Thk

3шт.

20

1977124C3

HOSE

- steering, front, 44-3/32 inch (1120 mm) long

1шт.

21

1988953C2

HOSE

- sensing, middle, 63 inch (1600 mm) long

1шт.

22

1980247C1

TUBE

- steering, sensing

1шт.

23

201-435

TEE,9/16"-18 x 7/16"-20 Run, ORFS

- 9/16-18 face seal branch x face seal x 7/16-20 inch adj O-ring boss

1шт.

23a

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

24

1546024C1

CLAMP

- double, 3/8 inch ID

3шт.

25

1301387C2

CLIP

CLAMP - square, 2 inch ID

2шт.

26

163489C1

STRIP

INSULATOR - rubber, 1/4 ID x 1-13/64 inch long

3шт.

27

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

- hex, 5/16 NC x 3 inch

1шт.

28

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

29

413-522

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

- hex, 5/16 NC x 1-3/8 inch

1шт.

30

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

CONNECTOR, HYD, 7/16"-20, 37º x 7/16"-20, O-Ring

1шт.

31

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

32

1980237C2

CHECK VALVE

VALVE ASSEMBLY - check

1шт.

33

NSS

NOT SOLD SEPARAT

SCREEN - flow

1шт.

34

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

35

203-904

TUBE NUT,1 3/16"-12 ORFS

NUT - hex, tube, 1-3/16-12 inch face seal, tube

1шт.

36

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

37

492-11038

LOCK WASHER,3/8"

1шт.

38

425-106

NUT,3/8"-16, Cl 5

1шт.

39

1347127C1

PLATE

- hose clamp

1шт.
