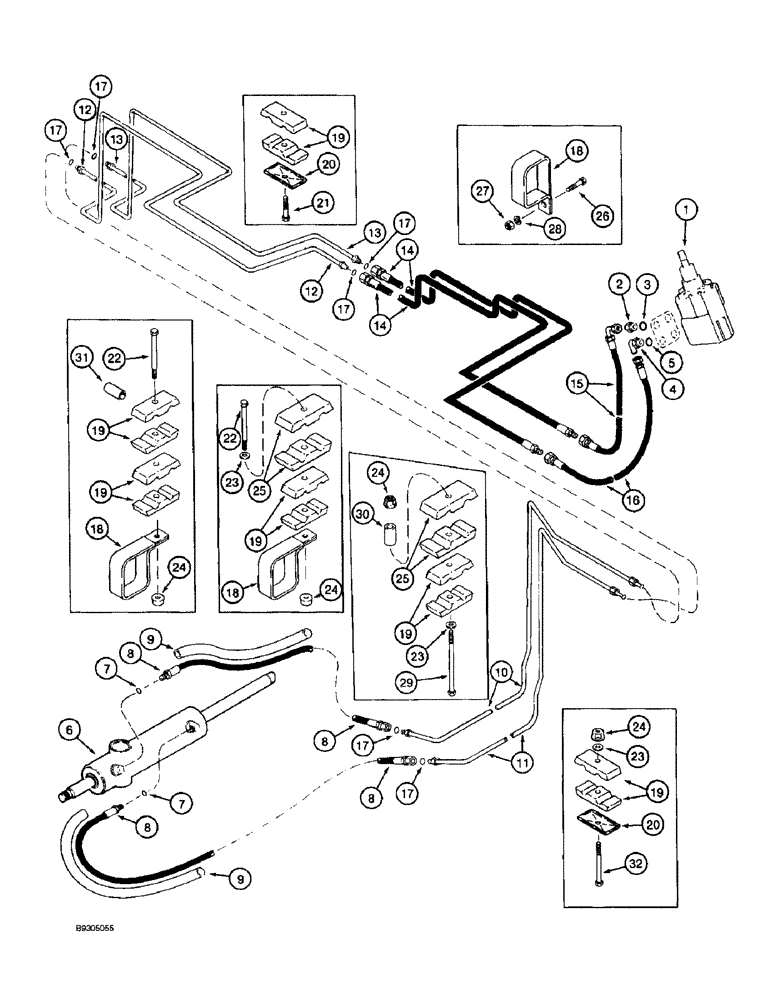

Запчасти Case IH 2055 (5-04) - STEERING SYSTEM, STEERING PUMP TO STEERING CYLINDER (04) - STEERING

1

1978328C3

PUMP

ASSEMBLY - steering, parts list page 5-8

1шт.

2

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

4

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring boss

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

6

93194C8

STEERING CYLINDER

CYLINDER ASSEMBLY - 2-5/8 (67) ID x 9-3/4 inch (246 mm) stroke, power steering, parts list page 5-18

1шт.

6

93194C9R

REMAN-HYD CYLINDER

2055 CASE IH COTTON EXPRESS COTTON PICKER, CYLINDER ASSEMBLY - 2-5/8 (67) ID x 9-3/4 inch (246 mm) stroke, power steering (4/93-), Reman For New PN 93194C8

1шт.

6

93194C9C

CORE-HYD CYLINDER

Return Number

1шт.

8

1984283C1

HOSE

- right-hand and left-hand turn, rear, 27-1/2 inch (700 mm) long

2шт.

9

1546059C1

HOSE

COVER - hose, 26 inch long, cut from 87283C2 bulk stock, see below

2шт.

10

1546401C1

TUBE

- left-hand turn, rear

1шт.

11

1546402C1

TUBE

- right-hand turn, rear

1шт.

12

1988923C1

TUBE

- left-hand turn, middle

1шт.

13

1988922C1

TUBE

- right-hand turn, middle

1шт.

14

1988954C2

HOSE

- right-hand and left-hand turn, middle, 79-3/4 inch (2025 mm) long

2шт.

15

1979139C1

HOSE

- left-hand turn, front 53-1/8 inch (1350 mm) long

1шт.

16

1977125C1

HOSE

- right-hand turn, front 52-3/8 inch (1330 mm) long

1шт.

17

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

6шт.

18

1301387C2

CLIP

CLAMP - square, 2 inch ID, coated

1-3шт.

19

1546024C1

CLAMP

- double, 3/8 inch ID

6шт.

20

1347127C1

PLATE

- hose clamp

2шт.

21

413-522

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

- hex, 5/16 NC x 1-3/8 inch

1шт.

22

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

- hex, 5/16 NC x 3 inch

2шт.

23

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

3шт.

24

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

25

1546026C1

CLAMP

- double, 5/8 inch ID

2шт.

26

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, if used

1шт.

27

425-106

NUT,3/8"-16, Cl 5

If used 3/8"-16, G5

1шт.

28

492-11038

LOCK WASHER,3/8"

if used 3/8"

1шт.

29

413-580

BOLT,Hex, 5/16" - 18 x 5", Gr 5

1шт.

30

11531N

SPACER,3/8" Pipe x 2"

- tubular, 3/8 x 2 inch long

1шт.

31

163489C1

STRIP

INSULATOR - rubber, 1/4 ID x 1-13/64 inch long

1шт.

32

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

87283C2

HOSE,26.194 mm ID x 15240 mm Bulk

Cover 26.194 mm ID x 15240 mm Bulk

1шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.
