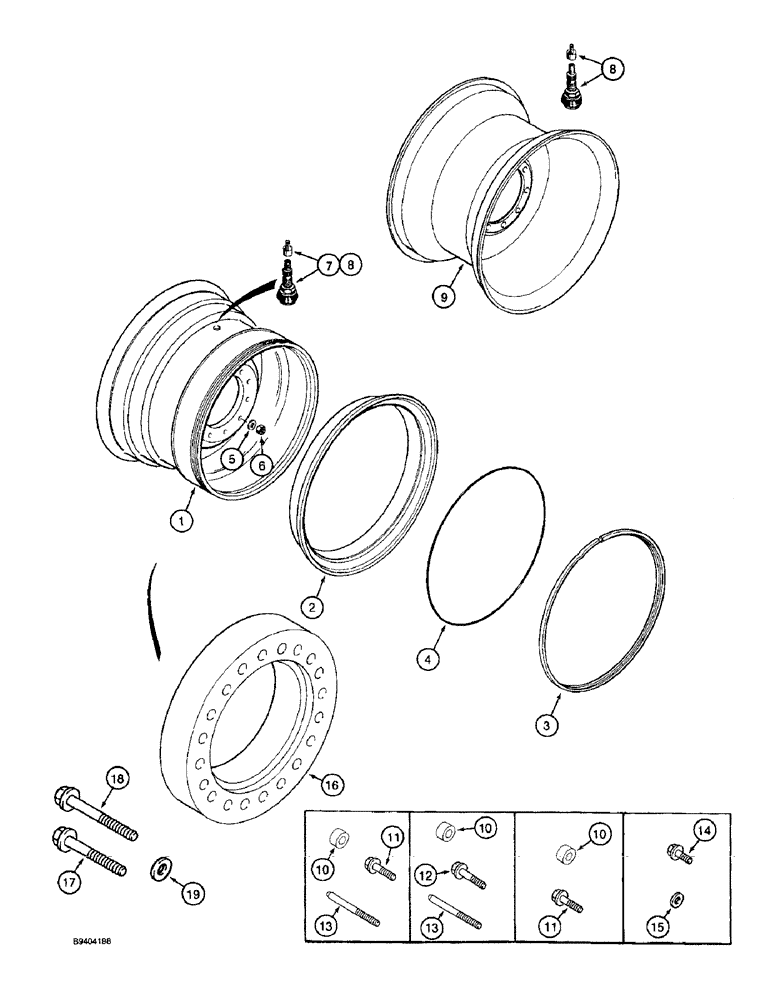

Запчасти Case IH 2055 (6-50) - DRIVE WHEELS AND SPACERS (03) - POWER TRAIN

111977A3

WHEEL ASSY.

WHEEL ASSEMBLY - drive, 13.00 x 32 inch tire (Replaces wheel assembly 111977A2)

2шт.

Includes (4) 111866A1 decal (multi-piece rims), item 16, shown on page 9F-34.

1шт.

135898A1

WHEEL ASSY.

WHEEL ASSEMBLY - drive, 13.00 x 32 inch tire, dual ready

2шт.

Includes (4) 111866A1 decal (multi-piece rims), item 16, shown on page 9F-34.

1шт.

1

NSS

NOT SOLD SEPARAT

RIM - drive wheel

1шт.

2

184471C1

WHEEL

- wheel, side

1шт.

3

184472C1

RING

- wheel, locking

1шт.

4

184473C1

O-RING,7mm Thk x 757mm ID, 65 Duro

M29.8 ID x .30 Thk, Wheel ring sealing

1шт.

5

496-31081

WASHER,13/16" x 1 1/2" x .219", HDN

- flat, 13/16 x 1-1/2 x 7/32 inch, hardened

20шт.

6

429-1112

NUT,3/4"-16, G5

- hex, 3/4 inch NF, grade 8

20шт.

7

1984006C2

VALVE STEM

VALVE - inflation, includes cap, for 13/16 inch hole, if used

2шт.

8

179482C1

VALVE STEM

VALVE - inflation, 7/16 inch diameter, includes cap, for 5/8 inch hole, if used

2шт.

9

124092A2

WHEEL ASSY.

WHEEL - drive, one piece, 24.5 x 32 inch, 16 PR tire, single drive, 4 Row Wide, replaces 124092A1 wheel

2шт.

9

129948A1

WHEEL

- drive, one piece, 20.8-38 14 PR tire, outer dual, 5 Row Wide

2шт.

Includes (2) 135786A1 decal (dual wheel bolt torque), item 27, shown on page 9F-32

1шт.

10

130871A1

SPACER

- wheel bolt, used with 111977A3, 135898A1 or 124092A1 wheels, if used

30шт.

11

130965A1

FLANGE BOLT,Hex, M20 x 1.5 x 70mm, Cl 10.9

BOLT - hex flange, 20 - 1.5 x 70 mm, class 10.9, used with 111977A3 or 124092A1 single wheels

30шт.

12

130934A1

FLANGE BOLT,Hex, M20 x 1.5 x 90mm, Cl 10.9

BOLT - hex flange, 20 - 1.5 x 90 mm, class 10.9, used with 135898A1 dual ready wheels

30шт.

13

131443A1

BOLT,M20 x 1.5 x 210mm, Cl 8.8

BOLT - special, drive wheel starter, used with 111977A3, 124092A1 or 135898A1 wheels

2шт.

14

514-1211

BOLT,Hex, M20 x 1.5 x 45mm, Cl 10.9

- hex, 20 - 1.5 x 45 mm, class 10.9, used with 129948A1 outer dual wheels

10шт.

15

137339A1

WASHER

- flat, special, 22 x 34 x 3.4 mm, used with 129948A1 outer dual wheels

10шт.

16

135171A1

SPACER

- wheel, 76 mm, 40 inch rows, 5 Row Wide

2шт.

17

514-1224

BOLT,Hex, M20 x 1.5 x 125mm, Cl 10.9

- hex, 20 - 1.5 x 125 mm, class 10.9, 40 inch rows, 5 Row Wide

10шт.

18

514-1225

BOLT,Hex, M20 x 1.5 x 140mm, Cl 10.9

- hex, 20 - 1.5 x 140 mm, class 10.9, 40 inch rows, 5 Row Wide

30шт.

19

137339A1

WASHER

- flat, special, 22 x 34 x 3.4 mm, 40 inch rows, 5 Row Wide

30шт.
