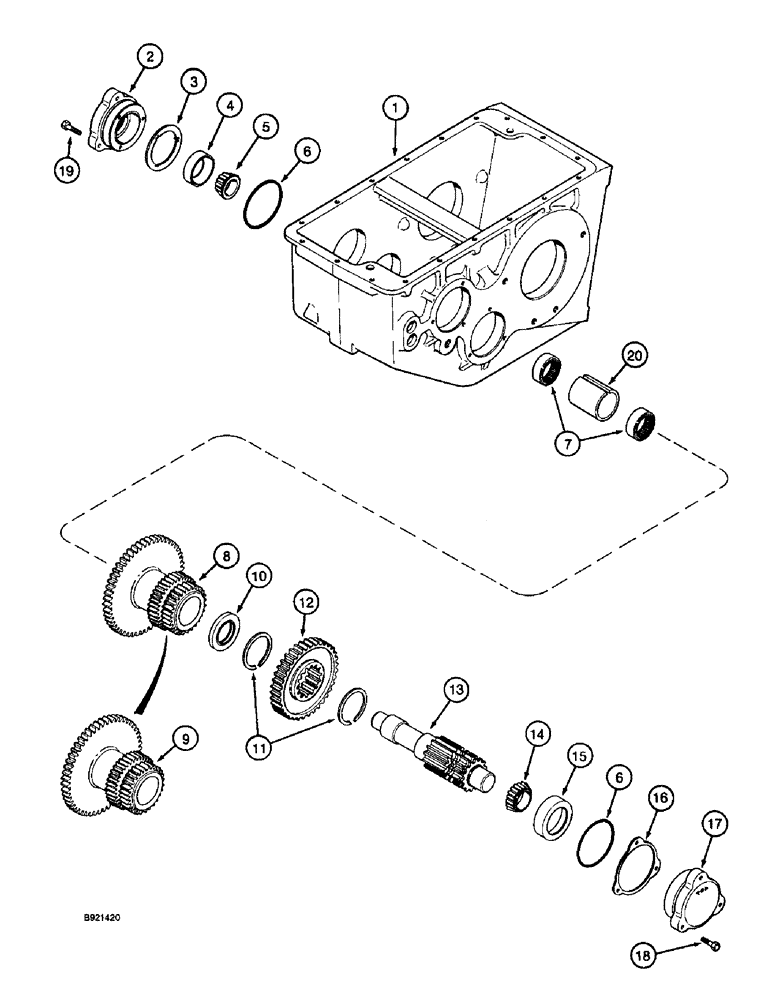

Запчасти Case IH 2055 (6-44) - TRANSMISSION PINION SHAFT AND GEARS (03) - POWER TRAIN

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - parts list page 6-42 - 6-46, see page 6-42 for correct transmission assembly

1шт.

1

REF

INSTRUCTION

HOUSING - transmission, see page 6-42 for correct transmission housing

1шт.

2

188893C1

BEARING COVER,59.75 mm ID x 101.51 mm OD x 47.5 mm

HOUSING - bearing, left-hand

1шт.

3

530704R2

THRUST WASHER,74.42mm ID x 99.06mm OD x 1.65mm Thk

- thrust

1шт.

4

131312C1

BEARING CUP

CUP - tapered roller bearing, 2-27/32 inch OD, left-hand pinion shaft

1шт.

5

871244R1

ROLLER BEARING

BEARING - tapered roller, left-hand pinion shaft

1шт.

6

238-5240

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

2шт.

7

A61415

NEEDLE BEARING,Needle, 53.96mm ID x 63.51mm OD x 25.4mm W

BEARING - needle, spool gear

2шт.

8

1342488C1

PINION

GEAR - spool, 59, 31, and 28 teeth, 59, 31, and 28 teeth, no longer available, order item 9, 1997591C1 gear, shown on this page and item 14, 1997592C1 gear, shown on page 6-46, prior to P.I.N. JJC139015

1шт.

9

1997591C1

PINION

GEAR - spool, 59, 28 and 28 teeth, 59, 28 and 28 teeth, P.I.N. JJC139015 and after

1шт.

10

401879R1

SPACER,54.1mm ID x 79.2mm OD x 6.28mm L

- spool gear

1шт.

11

196693H1

RING

- snap, change gear

2шт.

12

406606R1

GEAR

- change driven, 41 teeth

1шт.

13

401878R1

SHAFT

- pinion, 14 teeth

1шт.

14

ST791

TAPERED BEARING,1.6255" ID x 3.376" OD x 1.202"

BEARING - tapered roller, right-hand pinion shaft

1шт.

15

ST951

TAPERED BEARING,1.6255" ID x 3.376" OD x 1.202"

CUP - tapered roller bearing, right-hand pinion shaft

1шт.

16

401883R1

SHIM

- 0.003 inch thick, bearing

1шт.

16

401884R1

SHIM

- 0.005 inch thick, bearing

1шт.

16

401885R1

SHIM

- 0.007 inch thick, bearing

1шт.

16

184195C1

SHIM

- 0.030 inch thick, bearing

1шт.

17

403363R1

BEARING CAP,73.4 mm ID x 101.5 mm OD x 54.1 mm

CAGE - bearing, right-hand

1шт.

18

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

- hex, 3/8 NC x 1-3/8 inch

3шт.

19

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

3шт.

20

1981198C1

SPACER

- spool gear

1шт.
