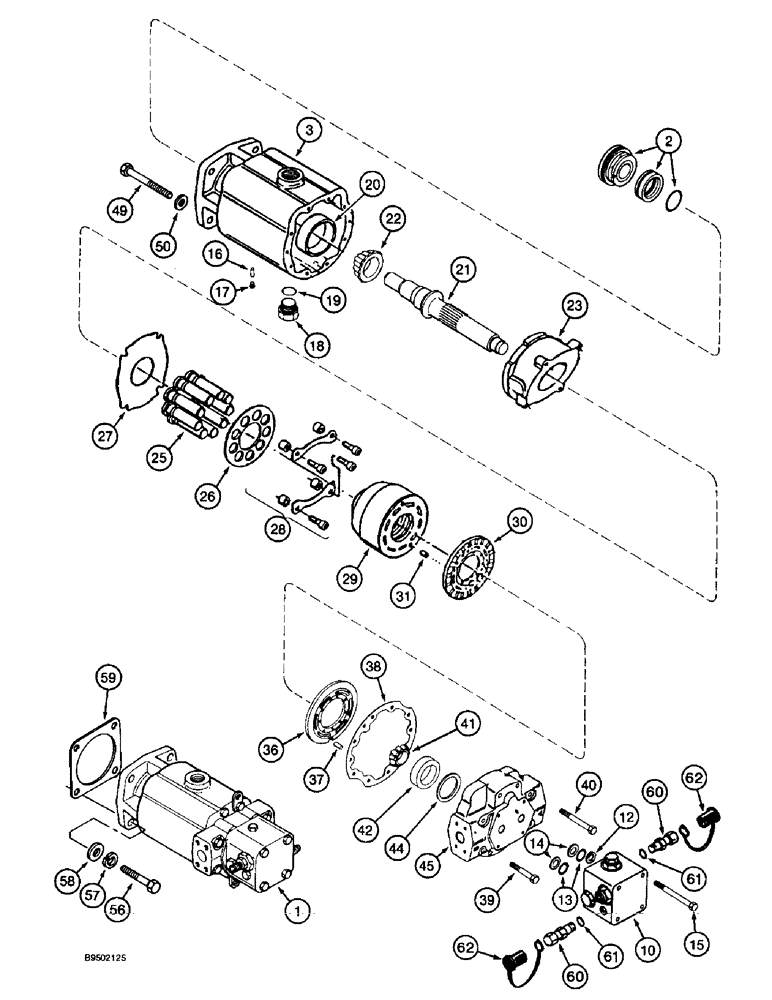

Запчасти Case IH 2055 (6-34) - HYDROSTATIC MOTOR, SINGLE SPEED (03) - POWER TRAIN

1

1343609C1

MOTOR

ASSEMBLY - hydrostatic, part number stamped on part, no longer used, order 1343609C2

1шт.

1

1343610C1

REMAN-HYDROSTAT MOTO

MOTOR ASSEMBLY - hydrostatic, remanufactured, North America only, component parts shown on ths page do not apply to the remanufactured assembly

1шт.

1

1343611C1

CORE-HYDROSTAT MOTOR

RETURN NUMBER - use this part number to return motor core for credit when using a remanufactured assembly

1шт.

1

1343609C2

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - hydrostatic, part number stamped on part, replaces 1343609C1, no longer used, order motor assembly 183296A2

1шт.

1

183296A2

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - hydrostatic, new, part number stamped on part (Replaces motor assembly 1343609C2)

1шт.

1

183296A2R

REMAN-HYD MOTOR

2055 CASE IH COTTON EXPRESS COTTON PICKER, MOTOR ASSEMBLY - hydrostatic (4/93-)

1шт.

1

183296A2C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

2

1346205C1

SEAL KIT

SEAL - shaft, three-piece

1шт.

3

NSS

NOT SOLD SEPARAT

HOUSING - pump

1шт.

10

1971432C2

VALVE

BLOCK ASSEMBLY - relief valve, parts list page 6-38, used with motor assembly 1343609C2

1шт.

10

193646A1

VALVE

BLOCK ASSEMBLY - relief valve, parts list page 6-38, used with motor assembly 183296A2

1шт.

140747C92

SEAL KIT

KIT - seal replacement (Replaces kit 140747C91)

1шт.

12

133753C1

O-RING,7/16" ID x 3/4" OD x 1/16"

- quad, 3/4 x 7/8 x 1/16 inch

1шт.

13

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

14

631458C1

RING

- backup

2шт.

15

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

4шт.

16

20020R1

DOWEL,5/16" x 1"

PIN, 5/16" x 1"

1шт.

17

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

- hex socket, 1/8 inch PT

1шт.

18

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

1шт.

19

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

20

ST863

BEARING CUP,93.22mm OD x 23.81mm W

CUP - tapered roller bearing, output shaft

1шт.

21

1980137C1

SHAFT

ASSEMBLY - output

1шт.

22

56694H

BEARING ASSY,50.8mm ID x 30.3mm W

BEARING - tapered roller, output shaft

1шт.

23

NSS

NOT SOLD SEPARAT

PLATE - swash, fixed

1шт.

1980138C1

KIT

- rotating, cylinder, used with 1343609C1 motor. Rotating cylinder kit is not available for 1343609C2 motor. For service of 1343609C2 motor, order 1343610C1 remanufactured motor assembly

1шт.

25

NSS

NOT SOLD SEPARAT

PISTON - cylinder block

9шт.

26

NSS

NOT SOLD SEPARAT

PLATE - retaining

1шт.

27

NSS

NOT SOLD SEPARAT

PLATE - retaining, clear

1шт.

28

NSS

NOT SOLD SEPARAT

KIT - hold down

1шт.

29

NSS

NOT SOLD SEPARAT

BARREL - cylinder

1шт.

30

NSS

NOT SOLD SEPARAT

PLATE - bearing

1шт.

31

140754C1

PIN

- dowel, 5/16 x 5/8 inch

2шт.

36

1980139C1

PLATE

- valve

1шт.

37

140754C1

PIN

- dowel, 5/16 x 5/8 inch

3-5шт.

38

1980140C1

GASKET,0.38mm Thk

- end cover

1шт.

39

413-732

BOLT,Hex, 7/16" - 14 x 2", Gr 5

2шт.

40

113-347

BOLT,Hex, 7/16" - 14 x 3", Gr 5

6шт.

41

400983R91

ROLLER BEARING,1.18775" ID x 2.5317" OD x 0.8478"

BEARING - tapered roller, 1-3/16 inch ID, output shaft

1шт.

42

530741R1

BEARING CUP

CUP - tapered roller bearing, 2-17/32 inch OD, output shaft

1шт.

142398C91

SHIM KIT

KIT - shim, bearing

1шт.

44

NSS

NOT SOLD SEPARAT

SHIM - 0.030 inch

1шт.

44

NSS

NOT SOLD SEPARAT

SHIM - 0.030 inch

1шт.

44

NSS

NOT SOLD SEPARAT

SHIM - 0.030 inch

1шт.

44

NSS

NOT SOLD SEPARAT

SHIM - 0.030 inch

1шт.

44

NSS

NOT SOLD SEPARAT

SHIM - 0.030 inch

1шт.

44

NSS

NOT SOLD SEPARAT

SHIM - 0.030 inch

1шт.

45

NSS

NOT SOLD SEPARAT

COVER - end

1шт.

49

61-33148

HEX SOC SCREW,5/16"-18 x 3"

SCREW, Hex Soc Hd, 5/16"-18 x 3"

2шт.

50

92734C1

SEALING WASHER

- sealing

2шт.

56

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

Used with motor assembly 1343609C2, if used Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

56

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

Used with motor assembly 1343609C2, if used Hex, 1/2"-13 x 1 3/4", G5

4шт.

56

628-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

Used with motor assembly 183296A2 Hex, M12 x 40, 10.9, Full Thd

4шт.

57

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Used with motor assembly 1343609C2 1/2"

4шт.

57

892-11012

LOCK WASHER,M12

WASHER, LOCK, , Used with Motor Assembly 183296A2 M12

4шт.

58

283856C1

WASHER

- flat, 17/32 x 1 x 3/16 inch, used with motor assembly 1343609C2, if used

4шт.

58

396-21053

WASHER,17/32" x 1 1/16" x .134"

Used with motor assembly 1343609C2, if used 17/32" x 1 1/16" x .134"

4шт.

58

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

Used with Motor Assembly 183296A2 M13.5 x 24.5 x 3, HT

4шт.

59

166506C1

GASKET,0.81mm Thk

- mounting

1шт.

60

R55912

NIPPLE

COUPLER - quick disconnect, used with motor assembly 183296A2

2шт.

61

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, Used with motor assembly 183296A2

2шт.

62

H434163

DUST CAP

CAP - dust, used with motor assembly 183296A2

2шт.
