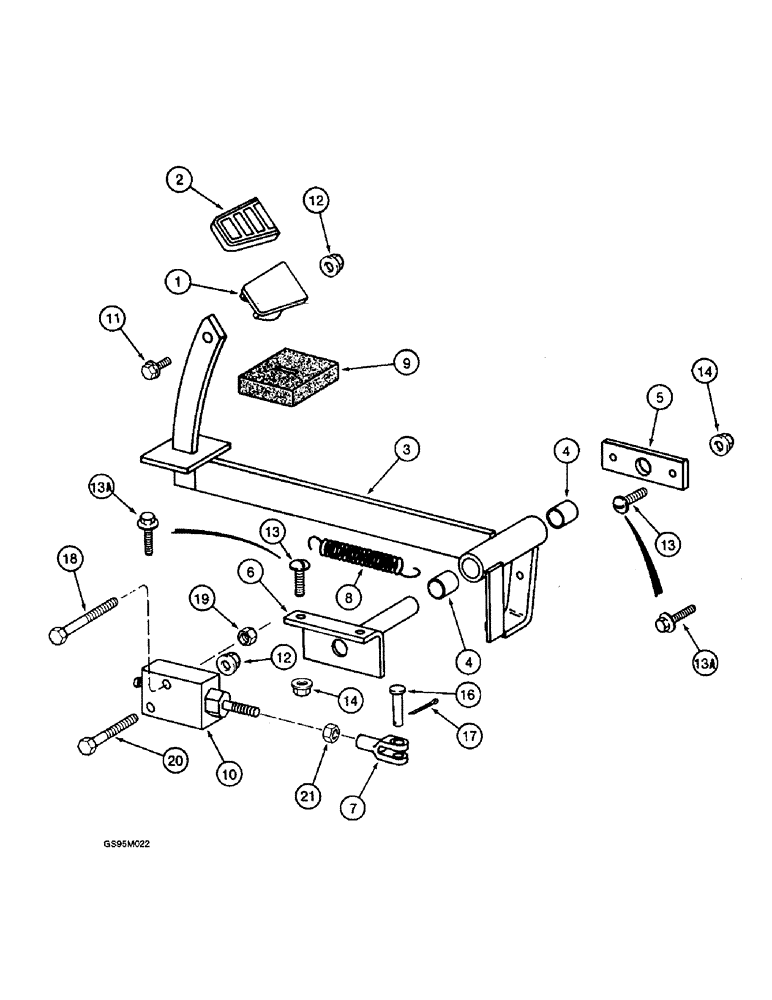

Запчасти Case IH 2055 (6-12) - FOOT-N-INCH PEDAL (03) - POWER TRAIN

1

163425C1

PEDAL

- Foot-N-Inch

1шт.

2

863426R1

PAD

- pedal

1шт.

3

1321960C93

SUPPORT

ASSEMBLY - pedal (Replaces pedal 1321960C92)

1шт.

4

1280291C1

BUSHING,19.13mm ID x 22.3mm OD x 19.05mm L

- 3/4 inch (19 mm) diameter

2шт.

5

1281794C1

PLATE

BAR - pivot shaft support

1шт.

6

1281816C3

SUPPORT

- pivot shaft

1шт.

7

213-125

ADJUSTABLE CLEVIS,5/16" - 32

CLEVIS - adjustable, 5/16 inch NF

1шт.

8

398763R2

SPRING

- pedal return

1шт.

9

1321935C1

SEAL

- pedal

1шт.

10

539750R92

VALVE

ASSEMBLY - Foot-N-Inch, parts list page 6-14

1шт.

11

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

12

231-5146

FLANGE NUT,3/8"-16

1шт.

13

1330152C1

SCREW,Sl Serr Truss Hd, 5/16" - 18 x 3/4"

If used Sltd Serr Truss Hd, 5/16"-18 x 3/4"

4шт.

13a

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch, self-locking, if used

4шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

16

327-5094

CLEVIS PIN,5/16" x .940"

PIN - clevis, 5/16 x 15/16 inch

1шт.

17

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

1шт.

18

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

19

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

1шт.

20

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

21

425-155

JAM NUT,Jam, 5/16"-24, G5

- hex, jam, 5/16 inch NF

1шт.
