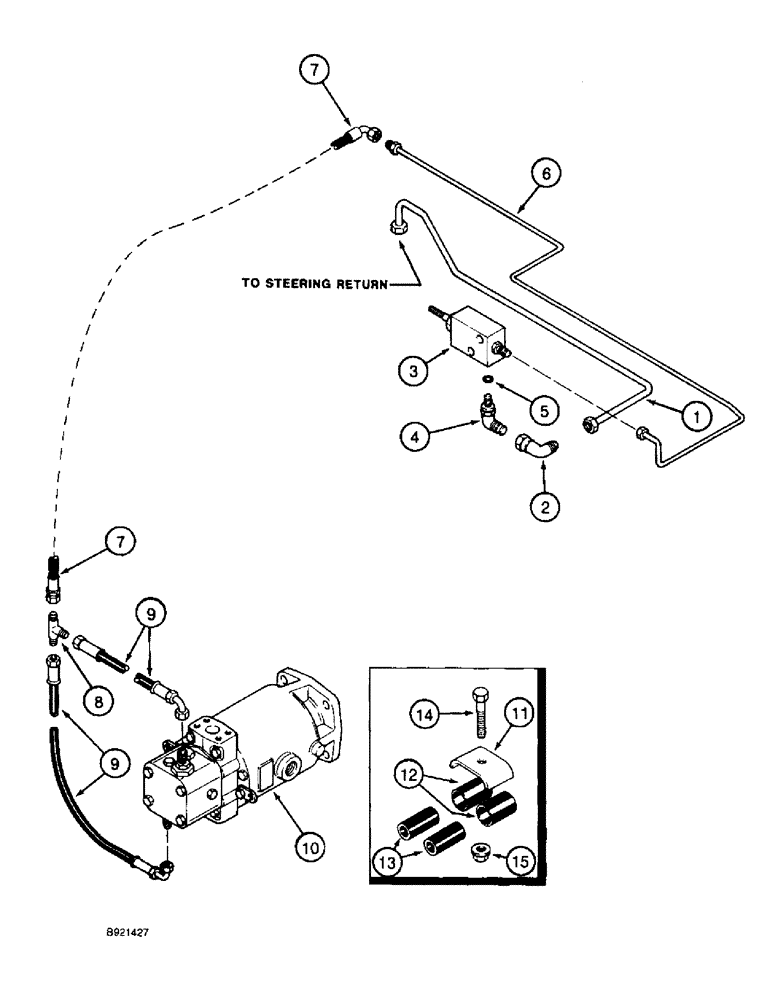

Запчасти Case IH 2055 (6-10) - FOOT-N-INCH VALVE SYSTEM (03) - POWER TRAIN

1

1285346C4

TUBE

- return

1шт.

2

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree, 9/16-18 inch flare x swivel flare

1шт.

3

539750R92

VALVE

ASSEMBLY - Foot-N-Inch, mounting hardware and parts list page 6-14

1шт.

4

218-5335

ELBOW,90 Degree, 9/16"-18, 37 Degree x 1/2"-20, O-Ring

- 90 degree, 9/16-18 flare x 1/2-20 inch adj O-ring boss

1шт.

6

1285386C5

TUBE

- supply

1шт.

7

1990184C2

HYDRAULIC HOSE,6.35 mm ID x 850.00 mm, Class 20

Foot-N-Inch Supply, Replaces hose 1990184C1 6.35 mm ID x 850.00 mm, Class 20

1шт.

8

218-591

TEE,7/16"-20, 37 Degree

- 7/16-20 inch flare branch x flare x flare

1шт.

9

175760C2

HYDRAULIC HOSE,6.35mm ID x 254mm L, SAE 100R2

HOSE - Foot-N-Inch, 10 inch (254 mm) long

2шт.

10

REF

INSTRUCTION

MOTOR ASSEMBLY - hydrostatic, see pages 6-34 for correct assembly and parts list

1шт.

11

165602C1

CLAMP

- tube

1шт.

12

163489C1

STRIP

INSULATOR - rubber, 1/4 ID x 1-13/64 inch long

1шт.

13

163490C1

RUBBER INSULATOR

INSULATOR - rubber, 3/8 ID x 1-13/64 inch long

1шт.

15

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

5

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk

1шт.

14

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.
