Запчасти Case IH 2055 (6-06) - FAN DRIVE HOUSING, PULLEY AND HYDROSTATIC PUMP DRIVE PLATE (03) - POWER TRAIN

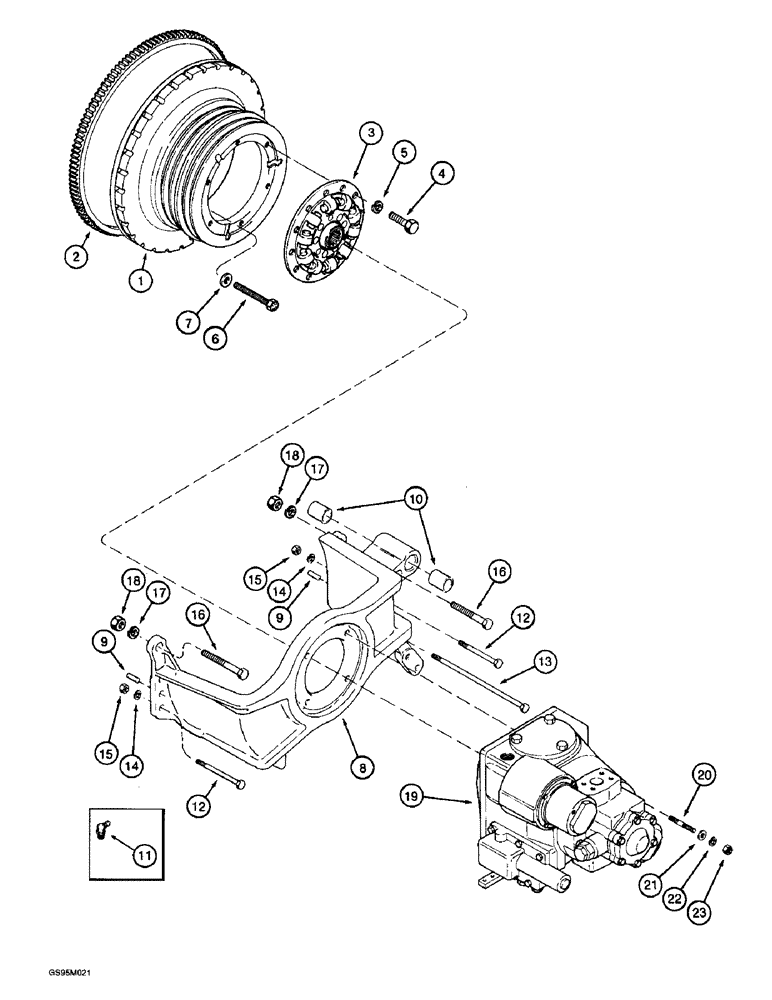

Схема запчастей Case IH 2055 - (6-06) - FAN DRIVE HOUSING, PULLEY AND HYDROSTATIC PUMP DRIVE PLATE (03) - POWER TRAIN
1
15
14
18
10
20
5
17
12
2
9
18
9
8
22
6
23
19
3
15
14
11
21
16
7
12
17
13
4
16

Артикул

Название

Примечание

Количество

1

1546119C2

PULLEY

ASSEMBLY - engine flywheel

1шт.

2

NSS

NOT SOLD SEPARAT

GEAR - ring, flywheel

1шт.

3

1546204C2

LARGE PLATE

PLATE - hydrostatic drive

1шт.

4

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

6шт.

5

492-11038

LOCK WASHER,3/8"

6шт.

6

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

BOLT - hex, special, 12 - 1.25 x 32 mm

8шт.

7

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

- flat, special, flywheel bolt

8шт.

1990144C3

HOUSING

ASSEMBLY - pulley

1шт.

8

NSS

NOT SOLD SEPARAT

HOUSING - pulley

1шт.

9

37-1816

DOWEL,1/2" x 1"

PIN - dowel, 1/2 x 1 inch, hardened

2шт.

10

87800C1

BUSHING,25.53mm ID x 31.81mm OD x 38.1mm L

- pulley housing

2шт.

11

21340R1

ADAPTER,90 Degree, 1/4"-1/8 NPTF

FITTING - grease, 90 degree, special

1шт.

12

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch

3шт.

13

113-2431

BOLT,Hex, 1/2" - 13 x 11", Gr 5

1шт.

14

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

15

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

16

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- hex, 3/4 NC x 2-3/4 inch

2шт.

17

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

18

425-1012

NUT,3/4"-10, G5

2шт.

19

REF

INSTRUCTION

PUMP ASSEMBLY - hydrostatic, see pages 6-18 - 6-32 for correct pump assembly and parts list

1шт.

20

1338122C2

STUD

- pump retaining

4шт.

21

396-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened 17/32" x 1 1/16" x .134"

4шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

23

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

Выбрано товаров: 24
