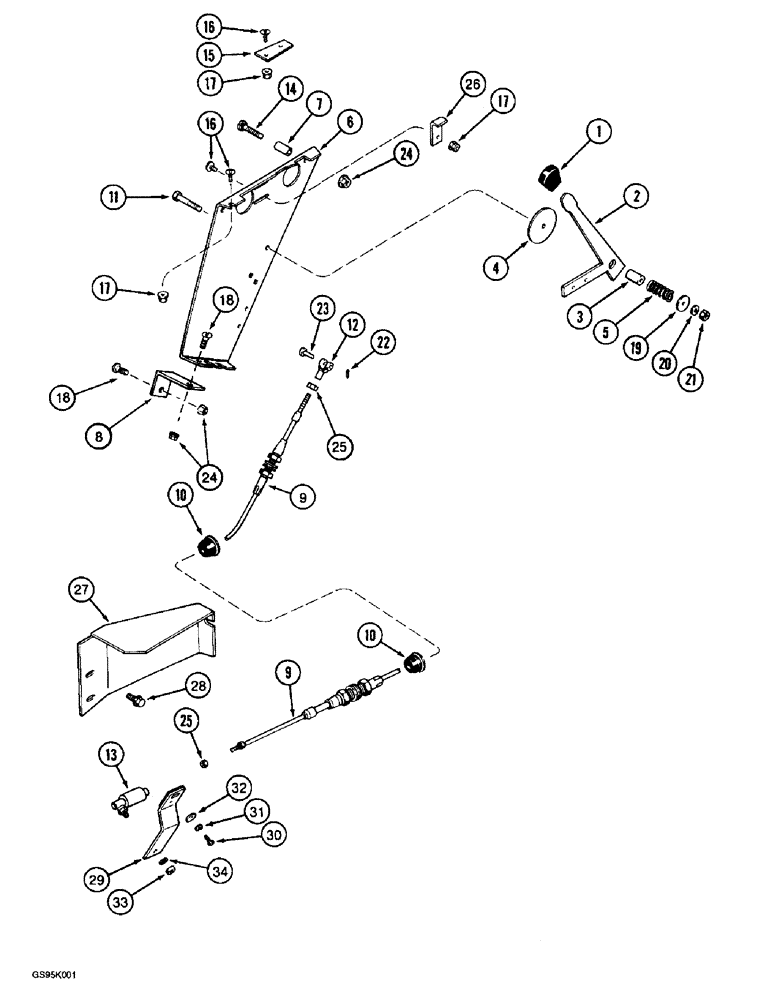

Запчасти Case IH 2055 (3-12) - THROTTLE CONTROLS (02) - FUEL SYSTEM

1

120197C2

KNOB

- throttle lever

1шт.

2

1301183C96

LEVER ASSY.

LEVER - control, throttle (Replaces lever 1301183C95)

1шт.

3

154397C1

SPACER,5/8" Tube x 1 1/4"

- tubular, 5/8 OD x 1-1/4 inch long

1шт.

4

941133C1

WASHER

- throttle lever

1шт.

5

PO22

SPRING

- throttle control lever

1шт.

6

1977092C4

SUPPORT

- throttle control

1шт.

7

SA10227

SPACER,3/8" Pipe x 1 1/8"

- 3/8 x 1-1/8 inch

2шт.

8

1301242C1

BRACKET

ANGLE - throttle support

1шт.

9

1329389C1

CABLE

- throttle

1шт.

10

198823C1

GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk

- rubber, throttle cable

2шт.

11

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

12

213-113

ADJUSTABLE CLEVIS,#10-32

CLEVIS - adjustable, No. 10 NF

1шт.

13

1977009C4

BALL JOINT

JOINT - ball, No. 10, type AL (Replaces 1977009C3 ball joint)

1шт.

14

12-632

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 2", Gr 2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 2", G2

2шт.

15

1329861C2

PLATE

- throttle control

1шт.

16

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

- slotted truss head, 1/4 NC x 1/2 inch

2-4шт.

17

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2-4шт.

18

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, special, 3/8 NC x 3/4 inch

1шт.

19

495-71041

WASHER,10.31mm ID x 31.75mm OD x 2.54mm Thk

- flat, 13/32 x 1-1/4 x 3/32 inch

1шт.

20

492-11038

LOCK WASHER,3/8"

1шт.

21

425-106

NUT,3/8"-16, Cl 5

1шт.

22

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

23

427-3071

CLEVIS PIN,3/16" x .719"

PIN - clevis, 3/16 x 23/32 inch, hardened

1шт.

24

231-5146

FLANGE NUT,3/8"-16

3шт.

25

225-14210

NUT,#10-32

2шт.

26

1338891C4

ANGLE

- throttle stop

1шт.

27

1977034C2

SUPPORT

- throttle cable, rear

1шт.

28

854-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

- heavy hex flange, 10 - 1.5 x 20 mm, class 10.9, If used

2шт.

28

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Full Thd, If used Hex, M10 x 30, 8.8

2шт.

29

1977046C4

LEVER

- pump throttle, pump

1шт.

30

615-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 6 - 1.0 x 16 mm

2шт.

31

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

32

495-81006

WASHER,6.76mm ID x 19.05mm OD x 1.7mm Thk

- flat, 17/64 x 3/4 x 1/16 inch

2шт.

33

425-114

NUT,1/4"-28, G5

1шт.

34

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.
