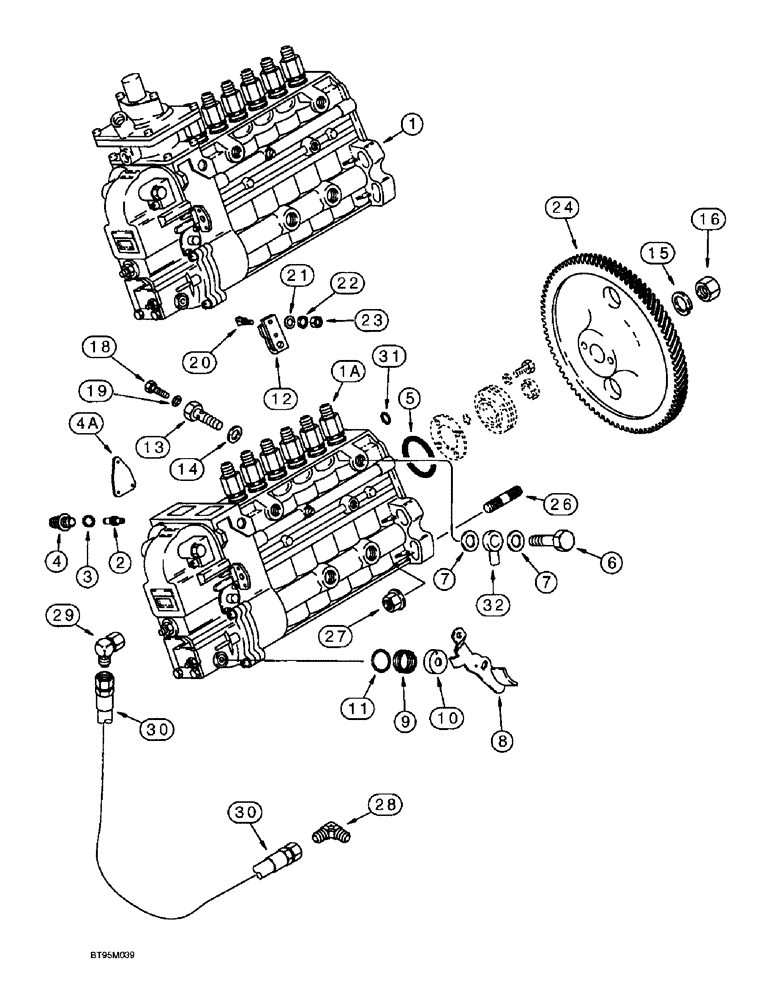

Запчасти Case IH 2055 (3-06) - FUEL INJECTION PUMP AND DRIVE, 6TA-830 ENGINE (02) - FUEL SYSTEM

1a

J925549

PUMP, FUEL INJECTION

PUMP, INJECTION PUMP ASSEMBLY - fuel injection, without aneroid

1шт.

1a

JR925549

REMAN-INJECTION PUMP

Pump Assembly fuel injection, remanufactured, component parts shown on this page do not apply to the remanufactured assembly

1шт.

1a

JC925549

CORE-INJECTION PUMP

Return Part Number

1шт.

1a

JC913338

PUMP

Return Part Number use this part number to return pump core for credit when using a remanufactured assembly

1шт.

1

J911657

PUMP, FUEL INJECTION

PUMP, INJECTION PUMP ASSEMBLY - fuel injection, new, with aneroid, no longer available, order J925549 pump assembly, item 1A

1шт.

2

A77720

PIN

PIN - timing

1шт.

3

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

SEALING WASHER, , Replaces 933222R1 washer M18 x 24 x 1.5

1шт.

4

J912888

PLUG

PLUG - timing

1шт.

4a

A71110

GASKET

GASKET - mounting, replaces A46322 gasket

1шт.

5

A41856

O-RING,3mm Thk x 75mm ID

O-RING - sealing

1шт.

6

J912886

VALVE

VALVE - overflow

1шт.

7

933697R1

SEALING RING,M10 x 13.5 x 1

WASHER - valve sealing

1шт.

8

J910979

LEVER

LEVER - pump shutoff

1шт.

9

J912890

SPRING

SPRING - lever shutoff

1шт.

10

691292C1

RETAINER

HOUSING - spring return

1шт.

11

680187C1

O-RING,2.5mm Thk x 9mm ID

O-RING - sealing, special

1шт.

12

1808728C1

LEVER

LEVER - throttle control

1шт.

13

J913320

SCREW

SCREW - vent

1шт.

Items 13, 14, 18, 19 and 32 are not used with item 1, J911657 pump assembly with aneroid.

1шт.

14

691273C1

GASKET,14.2mm ID x 19.9mm OD x 1.5mm Thk

GASKET - vent screw

1шт.

Items 13, 14, 18, 19 and 32 are not used with item 1, J911657 pump assembly with aneroid.

1шт.

15

J912897

LOCK WASHER

WASHER - lock, used on J925549 pump assembly

1шт.

15

A77775

LOCK WASHER

WASHER - lock, used on J911657 pump assembly

1шт.

16

J912896

LOCK NUT

NUT - hex, self-locking, special, used on J925549 pump assembly

1шт.

16

A41852

LOCK NUT

NUT - hex, self-locking, used on J911657 pump assembly

1шт.

18

B41211

SCREW

SCREW - vent

1шт.

Items 13, 14, 18, 19 and 32 are not used with item 1, J911657 pump assembly with aneroid.

1шт.

19

933696R1

SEALING RING,M6 x 10 x 1

RING - 6 x 10 mm, replaces 757760R1 ring

1шт.

Items 13, 14, 18, 19 and 32 are not used with item 1, J911657 pump assembly with aneroid.

1шт.

20

1808822C1

THUMB SCREW,M6 x 26mm

BOLT - throttle lever

1шт.

21

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

WASHER, M6

1шт.

22

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

23

829-1306

NUT,M6, Cl 10

NUT - hex, 6 mm - 1.0, class 10, Replaces 1806312C1 nut

1шт.

24

J912615

GEAR

GEAR - fuel pump

1шт.

26

J915036

STUD

STUD - pump mounting, 55 mm (2-5/32 in)

4шт.

27

J902662

FLANGE NUT

NUT - hex flange, 10 mm

4шт.

28

J915172

FITTING

ELBOW - 90 degree, 7/16-20 straight thread x 1/8 inch PT

1шт.

29

222-762

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT

ELBOW, 90º, 7/16-20 45 degree flare x 1/8 inch PT

1шт.

30

J906747

HOSE,6.35mm ID x 508mm L

Pump Lubrication

1шт.

31

J916284

O-RING

O-RING - sealing, fuel injection pump, sealing

1шт.

32

J911447

CONNECTOR, ELEC

CONNECTOR CONNECTOR - banjo, fuel return

1шт.

Items 13, 14, 18, 19 and 32 are not used with item 1, J911657 pump assembly with aneroid.

1шт.
