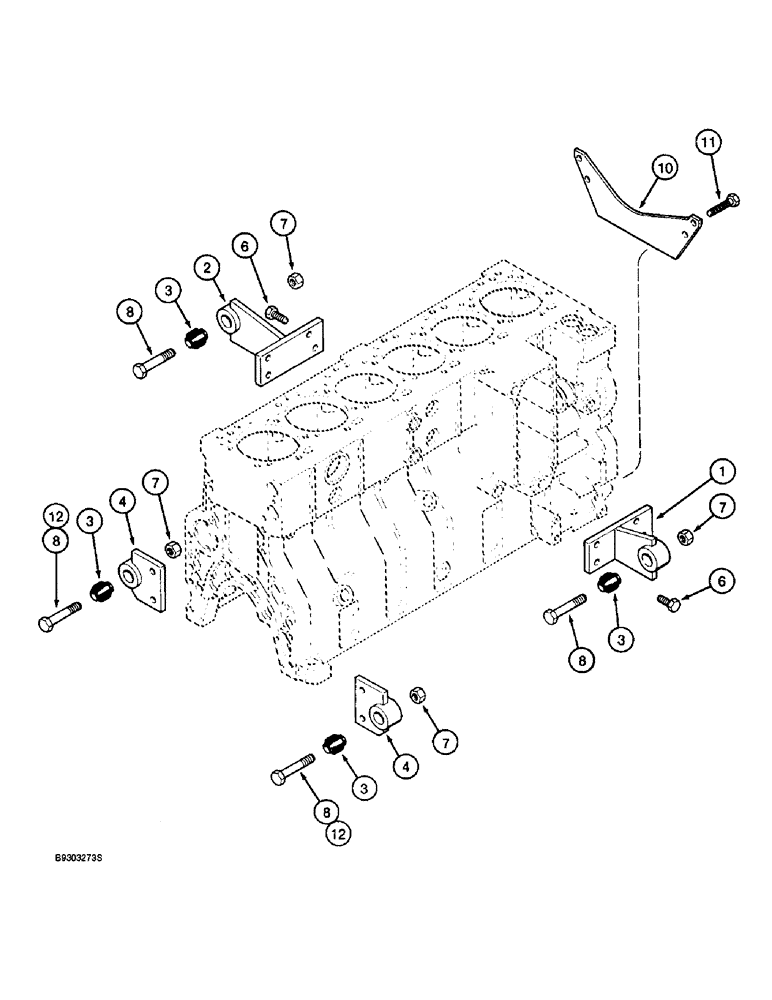

Запчасти Case IH 2055 (2-50) - ENGINE SUPPORTS (01) - ENGINE

1

1315688C3

SUPPORT

- engine, left-hand, fan end

1шт.

2

1315687C3

SUPPORT

- engine, right-hand, fan end

1шт.

3

672870R1

BUSHING

- engine support, rubber

4шт.

4

1260140C3

SUPPORT

- engine, flywheel end, for mounting hardware see items 12, 13, 14 and 15, page 6-6

2шт.

6

854-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 30 mm, class 10.9

8шт.

7

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

4шт.

8

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

If used Hex, 5/8"-11 x 3 1/2", G5

2-4шт.

8

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

- hex, 5/8 NC x 3-3/4 inch, if used

2-4шт.

10

1315696C1

SUPPORT

- engine cross, fan end

1шт.

11

30951R1

BOLT,Hex, M12 x 60mm, Cl 10.9

BOLT - hex, self-locking, 12 - 1.75 x 60 mm

4шт.

12

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

- hex, 5/8 NC x 3-3/4 inch, if used

4шт.
