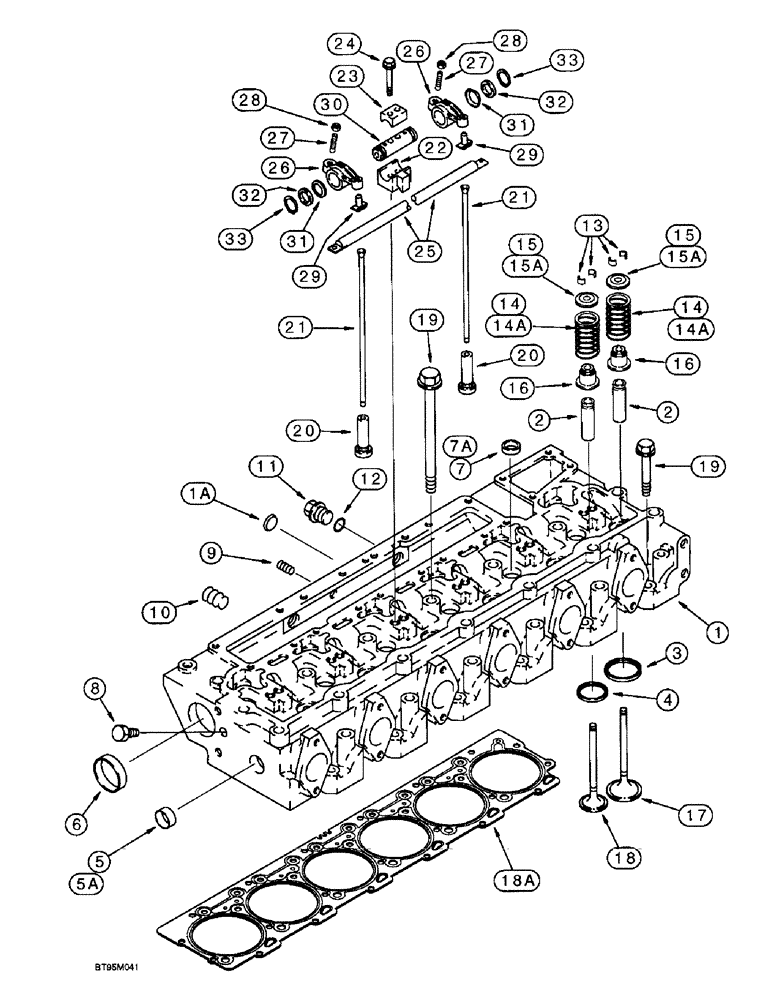

Запчасти Case IH 2055 (2-32) - CYLINDER HEAD AND VALVE MECHANISM (01) - ENGINE

JR928669

REMAN-CYLINDER HEAD

HEAD ASSEMBLY - cylinder, with valves, remanufactured, North America only, component parts shown on this page do not apply to the remanufactured assembly, replaces JR916464 and JR922052 head assembly

1шт.

JC928669

CORE-CYLINDER HEAD

RETURN NUMBER - use this part number to return head core for credit when using a remanufactured assembly, replaces JC916464 and JC922052

1шт.

J922052

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, new, with valves

1шт.

1

J922587

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, new, without valves, no longer available, order J922052 head assembly for service

1шт.

1a

J912900

PLUG

expansion, plug is for 19.18 mm hole, outer flange measures 24 mm

1шт.

2

J923564

VALVE GUIDE

GUIDE - valve stem, replaces J901187 guide

12шт.

3

J924582

INSERT

- seat, intake valve, replaces J908830 insert

6шт.

3

J925468

SEAT, VALVE

INSERT - seat, intake valve, 0.254 mm oversize, replaces J914839 insert, service repair only

6шт.

The oversize valve insert is not part of the head assembly and must be ordered separately.

1шт.

3

J925470

SEAT, VALVE

INSERT - seat, intake valve, 0.508 mm oversize, service repair only

6шт.

The oversize valve insert is not part of the head assembly and must be ordered separately.

1шт.

4

J929005

INSERT

- seat, exhaust valve, replaces J904716 and J924583 insert

6шт.

4

J929006

INSERT

- seat, exhaust valve, 0.254 mm oversize, replaces J914836 and J925469 insert, service repair only

6шт.

The oversize valve insert is not part of the head assembly and must be ordered separately.

1шт.

4

J929007

INSERT

- seat, exhaust valve, 0.508 mm oversize, replaces J925471 insert, service repair only

6шт.

The oversize valve insert is not part of the head assembly and must be ordered separately.

1шт.

5

A77530

PLUG

- expansion, 30 mm OD, used with J922587 head assembly

1шт.

5a

J920443

PLUG

- expansion, 30 mm OD

1шт.

6

A77782

PLUG

- expansion, 58 mm OD

2шт.

7

A77590

PLUG

- expansion, 28,7 mm

5шт.

7a

41-1616

PLUG,Cup, 1", Stainless

5шт.

8

A77534

PLUG

- hex, 1/16 inch PT

1шт.

9

A77428

PLUG

- hex socket, 1/4 inch PT

1шт.

10

A77429

PLUG

- hex socket, 1/2 inch PT

2шт.

11

J924148

PLUG,M22 x 1.5

- hex magnetic, special, replaces J904386 plug

2шт.

12

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

- sealing, plug

2шт.

13

J901177

VALVE

KEEPER - valve

24шт.

14

J906412

VALVE SPRING

SPRING, VALVE, 12 used prior to Engine Serial Number 44823528, 6 used Engine Serial Number 44823528 and after (Qty. 6-12)

1шт.

14a

J925272

VALVE SPRING

SPRING - exhaust valve, Engine Serial Number 44823528 and after

12шт.

Item 15A, J925273 rotator, must be used with item 14A, J925272 exhaust valve spring.

1шт.

15

J912976

RETAINER

- valve spring, prior to Engine Serial Number 44823528

12шт.

15a

J925273

ROTATOR

- valve

6шт.

Item 15A, J925273 rotator, must be used with item 14A, J925272 exhaust valve spring.

1шт.

16

J915707

SEAL

- intake and exhaust valve stem and guide

12шт.

17

J924492

STD INLET VALVE

VALVE - intake, replaces J915506 valve

6шт.

18

J921444

STD EXHAUST VALVE

VALVE - exhaust

6шт.

18a

J928168

GASKET

- cylinder head, standard, replaces J921850 gasket

1шт.

19

J917728

BOLT

- cylinder head, 160 mm long

14шт.

19

J917729

BOLT,Flng, M14 x 80mm

BOLT - cylinder head, 80 mm long

12шт.

20

J925031

TAPPET

- valve, push rod, replaces J907240 tappet

12шт.

21

J905194

PUSH ROD

ROD - push, rocker arm

12шт.

22

J905870

SUPPORT

- shaft, rocker arm

6шт.

23

J901693

CLAMP

- retaining, shaft

6шт.

24

868-10065

12 PT SCREW,M10 x 65mm, Cl 12.9

SCREW - 12 point flange, 10 - 1.5 x 65 mm, class 12.9

12шт.

25

J919677

TUBE

- oil, rocker arm, replaces J910911 manifold

1шт.

26

J901717

ROCKER

ARM ASSEMBLY - rocker

12шт.

27

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

SCREW - slotted set, adjusting, special

1шт.

28

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

1шт.

29

NSS

NOT SOLD SEPARAT

INSERT - rocker

1шт.

30

J919435

SHAFT

- rocker

6шт.

31

J906100

SPRING CUP

WASHER - spring

12шт.

32

J907206

WASHER,22.5mm ID x 30mm OD x 1mm Thk

- flat, special, shaft end

12шт.

33

100-1187

SNAP RING,#87, Ext

Ring, Snap, #87, Ext

12шт.
