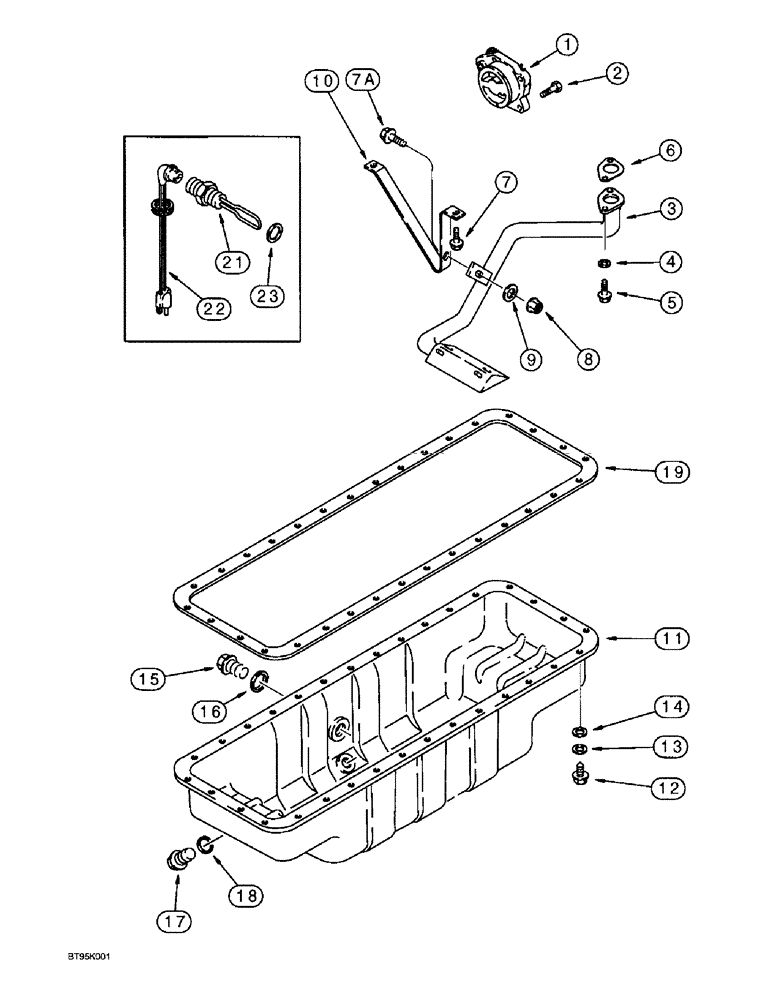

Запчасти Case IH 2055 (2-26) - OIL PUMP & OIL PAN 6TA-830 ENGINE (01) - ENGINE

JR926201

REMAN-ENG OIL PUMP

PUMP ASSEMBLY - oil, remanufactured, North America only, 24 teeth drive gear, replaces JR921067 and JR924644 pump assembly

1шт.

JC926201

CORE-ENGINE OIL PUMP

RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly, replaces JC921067 and JC924644

1шт.

1

J926201

PUMP, ENGINE OIL

PUMP ASSEMBLY - oil, 24 teeth drive gear, replaces J921067 and J924644 pump assembly

1шт.

2

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

HH, CL 8.8, M8 x 1.25 x 30

4шт.

3

J921719

TUBE

- with screen, oil suction

1шт.

4

J908738

SPACER

- mounting

2шт.

5

845-6030

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

- heavy hex flange, 6 - 1.0 x 30 mm

2шт.

6

J914302

GASKET

- mounting, oil suction tube

1шт.

Part of Gasket Oil Pan Kit P/N A77679

1шт.

7

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

2шт.

7a

845-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

- heavy hex flange, 6 - 1.0 x 20 mm, replaces J901865 bolt

1шт.

8

J906216

FLANGE NUT

- hex flange, special, 6 mm - 1.0

1шт.

9

J910960

WASHER

- flat, special

1шт.

10

J913427

BRACE

- suction tube

1шт.

11

J914015

ENGINE OIL PAN

PAN - oil, engine

1шт.

12

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

SCREW - hex flange cap, special, 8 - 1.25 x 25 mm, Oil pan to block, Replaces J907860 bolt

32шт.

13

J910266

LOCK WASHER

- spring, Belleville

32шт.

14

J908316

WASHER

- flat, special, 9 x 16 x 1 mm

32шт.

15

J924148

PLUG,M22 x 1.5

- hex magnetic, special, heater hole, replaces J904386 plug

1шт.

16

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

- sealing, plug

1шт.

Part of Gasket Oil Pan Kit P/N A77679

1шт.

17

J924147

PLUG,M18 x 1.5

- hex magnetic, special, drain, replaces J911638 plug

1шт.

18

J920773

SEALING WASHER

WASHER - sealing, drain plug, replaces J900216 washer

1шт.

Part of Gasket Oil Pan Kit P/N A77679

1шт.

19

NSS

NOT SOLD SEPARAT

GASKET - pan, oil, order A77679 gasket kit shown below

1шт.

Part of Gasket Oil Pan Kit P/N A77679

1шт.

A77679

GASKET KIT

KIT - gasket, oil pan, Includes Ref. 6, 16, 18 and 19

1шт.

A77580

SERVICE KIT

KIT - oil pan heater, engine oil. Includes: Ref. 6, 13, 18 and 19

1шт.

When engine oil heater kit is ordered, item 23, J902425 washer must be ordered also.

1шт.

21

NSS

NOT SOLD SEPARAT

ELEMENT - heater, 12 volt OIL PAN

1шт.

22

J905113

CABLE

- engine block heater OIL PAN

1шт.

23

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

- sealing, plug OIL PAN HEATER

1шт.

When engine oil heater kit is ordered, item 23, J902425 washer must be ordered also.

1шт.
