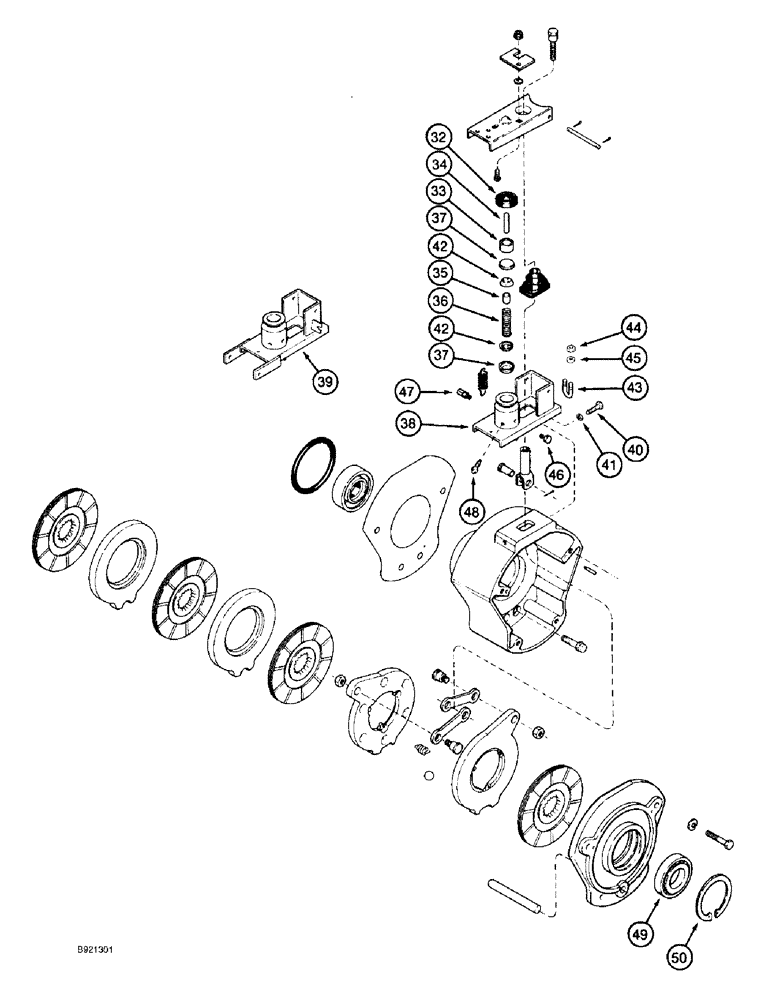

Запчасти Case IH 2055 (7-08) - MASTER BRAKES (5.1) - BRAKES

1329740C2

SUPPORT ASSY.

ACTUATOR ASSEMBLY - brake, right-hand

1шт.

1329739C2

SUPPORT ASSY.

ACTUATOR ASSEMBLY - brake, left-hand

1шт.

32

662620R1

COVER

BOOT - wheel cylinder

1шт.

Part of Wheel Cylinder Repair Kit P/N 1288942C92

1шт.

33

662616R1

PISTON

- wheel cylinder

1шт.

Part of Wheel Cylinder Repair Kit P/N 1288942C92

1шт.

34

1281779C1

LARGE PIN

PIN - brake piston spacer

1шт.

35

184325C2

PLUNGER

- wheel cylinder

1шт.

36

84940C1

SPRING

- wheel cylinder

1шт.

Part of Wheel Cylinder Repair Kit P/N 1288942C92

1шт.

37

51906H

CUP

- wheel cylinder, 1-1/4 inch diameter

2шт.

Part of Wheel Cylinder Repair Kit P/N 1288942C92

1шт.

38

NSS

NOT SOLD SEPARAT

SUPPORT - actuator, right-hand (Order 1329740C2)

1шт.

39

NSS

NOT SOLD SEPARAT

SUPPORT - actuator, left-hand (Order 1329739C2)

1шт.

40

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

41

495-81129

WASHER,13/32" x 3/4" x .120"

- flat, 13/32 x 3/4 x 7/64 inch

2шт.

42

85105C1

EXPANDER

CUP - wheel cylinder

2шт.

Part of Wheel Cylinder Repair Kit P/N 1288942C92

1шт.

43

1327797C1

CLAMP

U-BOLT - 1/4 NC x 1-1/4 inch

1шт.

44

232-4114

LOCK NUT,1/4"-20, GC

NUT, LOCK, 1/4"-20, GC

2шт.

45

95-51028

WASHER,0.28" ID x 0.5" OD x 0.06" Thk

- flat, 9/32 x 1/2 x 1/16 inch

2шт.

46

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

- hex socket, 1/8 inch PT

1шт.

47

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

ADAPTER - straight, 7/16-20 flare x 1/8 inch PT

1шт.

48

660901R1

VALVE

- brake cylinder bleeder

1шт.

49

D37968

BALL BEARING

BEARING - ball, housing cover (Replaces bearing 574273R91)

2шт.

50

101-21393

SNAP RING,#393, 4.234", Int

RING - snap (Replaces snap ring 184131C1)

2шт.

1288942C92

KIT

- repair, wheel cylinder, Includes: Ref. 32, 33, 36, 37 and 42.

1шт.
