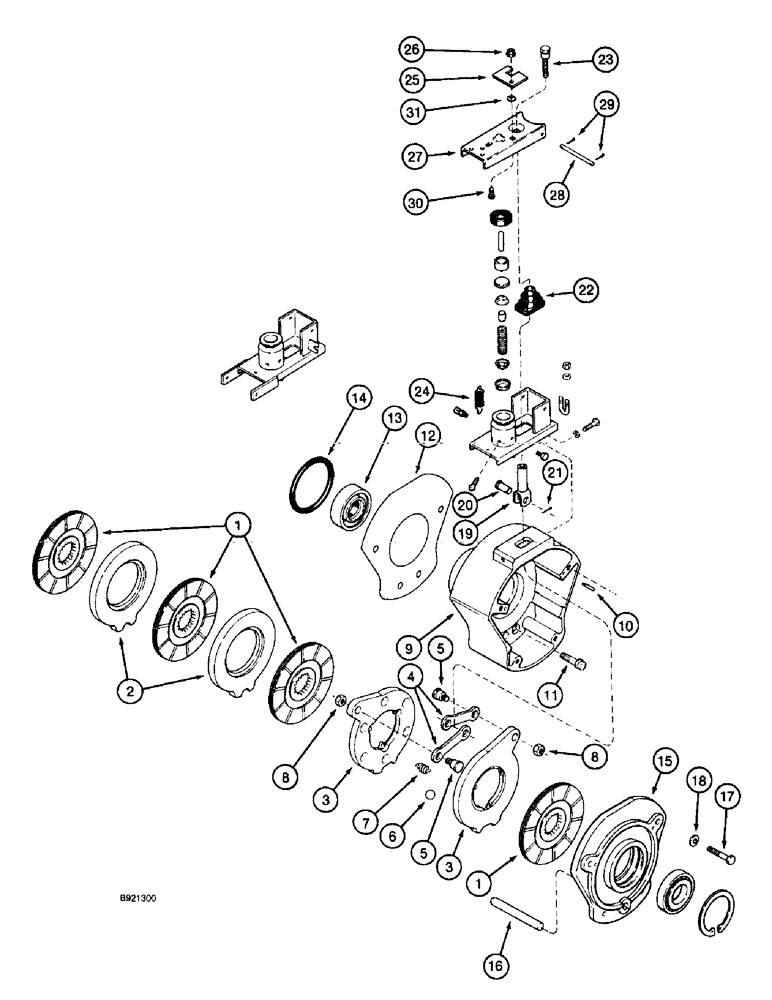

Запчасти Case IH 2055 (7-06) - MASTER BRAKES (5.1) - BRAKES

1

1349008C2

BRAKE DISC

DISC - brake

8шт.

2

1349009C2

BRAKE DISC

DISC - brake (Replaces brake disc 1349009C1)

4шт.

184202C93

DISC

ASSEMBLY - brake actuating

2шт.

3

NSS

NOT SOLD SEPARAT

DISC - actuating

2шт.

4

1276923C2

LINK

- actuating

2шт.

5

A41865

BOLT

- link (Replaces stud 1276924C1)

2шт.

6

211-1028

BALL,7/8" Dia

- chrome alloy steel, 7/8 inch, grade 24

5шт.

7

359859R2

SPRING

- extension

3шт.

8

425-158

JAM NUT,Jam, 1/2"-20, G5

2шт.

9

1342950C1

HOUSING ASSY.

HOUSING ASSEMBLY - brake

2шт.

10

20020R1

DOWEL,5/16" x 1"

PIN - dowel, 5/16 inch

2шт.

11

26145R1

12 PT SCREW,Flg, 5/8" - 11 x 1 3/4"

BOLT - 12 point flange, 5/8 NC x 1-3/4 inch

8шт.

12

401898R1

SHIM

- brake housing, 0.003 inch thick

1шт.

12

401899R1

SHIM

- brake housing, 0.005 inch thick

1шт.

12

401900R1

SHIM

- brake housing, 0.007 inch thick

1шт.

13

184072C1

OIL SEAL,55.88mm ID x 76.2mm OD x 9.5mm Thk

- oil

2шт.

14

238-5427

O-RING,0.275" Thk x 4.725" ID, -427, Cl 5, 75 Duro

2шт.

15

1981196C2

COVER

ASSEMBLY - brake housing

2шт.

16

37-11496

DOWEL,7/8" x 6"

PIN - dowel, 7/8 x 6 inch (Replaces pin 28333R1)

1шт.

17

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

8шт.

18

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

19

1321923C1

CLEVIS

YOKE - 1/2-20 NF ID x 7/8 inch OD, brake pull, if used

2шт.

19

184283C2

YOKE

- 7/16 NF ID x 3/4 inch OD, brake pull, if used

2шт.

20

27-10137

CLEVIS PIN,5/8" x 1 3/8"

PIN - clevis, 5/8 x 1-3/4 inch (Replaces pin 40545V)

2шт.

21

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

2шт.

22

184321C1

COVER

BOOT - brake housing

2шт.

23

1321973C1

ROD

- brake pull

2шт.

24

312824R1

SPRING

- brake lever return

2шт.

25

184282C2

BAR

- brake adjustment

2шт.

26

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

27

1277201C3

LEVER

- brake

2шт.

28

1308992C1

PIN,9.53mm OD x 102mm L

- brake lever

21шт.

29

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

4шт.

30

412-412

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 3/4", Gr 2

BOLT - carriage, 1/4 NC x 3/4 inch, grade 2

2шт.

31

136969C1

FASTENER

NUT - push-on type, 1/4 inch

2шт.
