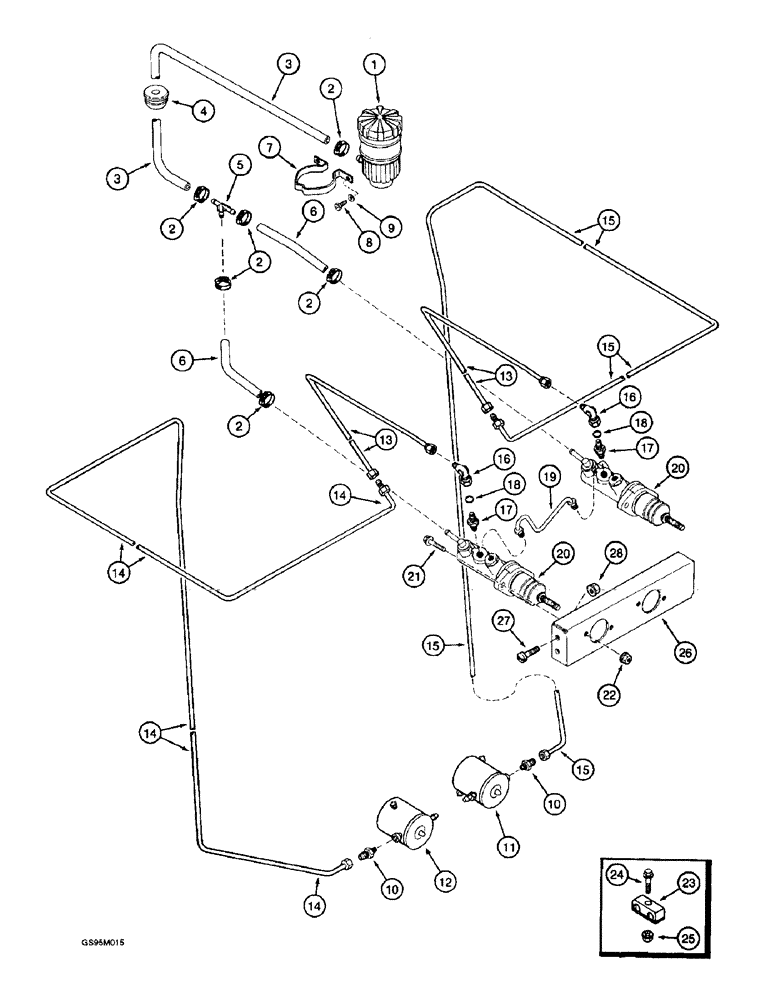

Запчасти Case IH 2055 (7-04) - MASTER BRAKE CYLINDERS RESERVOIR, CONNECTIONS AND MOUNTING (5.1) - BRAKES

1

1281890C2

RESERVOIR

- brake fluid

1шт.

Ref no. 1 - cap no. is k964488. ph-cam 9-22-98

1шт.

2

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

CLAMP, HOSE, , Adjustable #4, 0.25/0.62 Type M Worm

6шт.

3

1281889C1

HYDRAULIC HOSE,6.35 mm ID x 610.00 mm

- Return 6.35 mm ID x 610.00 mm

1шт.

4

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

- brake hose, 1/2 inch ID

1шт.

5

1285312C1

TEE

FITTING - stem, Y-type

1шт.

6

1281888C1

HYDRAULIC HOSE,6.35 mm ID x 150.00 mm

- Return 6.35 mm ID x 150.00 mm

2шт.

7

1281891C1

CLAMP

- reservoir mounting

1шт.

8

280-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self-tapping, hex washer head, No. 10-16 x 1/2 inch

2шт.

9

495-81101

WASHER,5.56mm ID x 19.05mm OD x 1.7mm Thk

Flat 7/32" x 3/4" x .060"

2шт.

10

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

ADAPTER - straight, 7/16-20 flare x 1/8 inch PT

2шт.

11

1329739C2

SUPPORT ASSY.

ACTUATOR ASSEMBLY - brake, left-hand, parts list page 7-10

1шт.

12

1329740C2

SUPPORT ASSY.

ACTUATOR ASSEMBLY - brake, right-hand, parts list page 7-10

1шт.

13

1988967C2

TUBE,0.25" OD

- right-hand and left-hand brake, front

2шт.

14

1988969C2

TUBE

- right-hand brake, intermediate

1шт.

15

1988968C2

TUBE

- left-hand brake, intermediate

1шт.

16

218-5228

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

- 90 degree, 7/16-20 inch flare x swivel

2шт.

17

1546436C1

FITTING

ADAPTER - straight, 7/16-20 inch flare x O-ring boss

2шт.

18

237-3004

O-RING,0.351" ID x 0.072" Width

4-1, Cl 3, .351" ID x .072" Thk

1шт.

19

1281885C1

PIPE

TUBE - equalizer

1шт.

20

1281884C91

MASTER CYLINDER,37mm Stroke

ASSEMBLY - master, 1 (25) ID x 1-1/2 inch (37 mm) stroke, parts list page 7-12

2шт.

21

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

4шт.

22

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

23

183820C1

CLAMP

- tube

6шт.

24

409-7416

BOLT,Hex Flg, 1/4" - 20 x 1", Spcl

6шт.

25

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

6шт.

26

1327561C2

SUPPORT

- master brake cylinder

1шт.

27

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, special, 3/8 NC x 3/4 inch

4шт.

28

231-5146

FLANGE NUT,3/8"-16

4шт.
