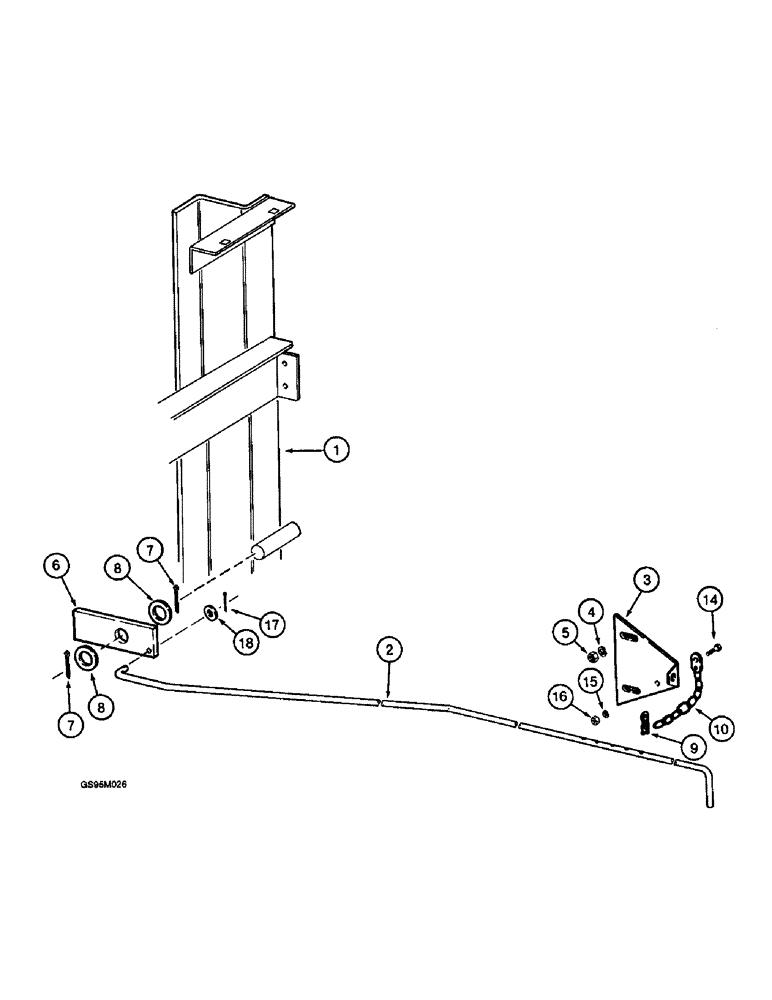

Запчасти Case IH 2055 (9D-36) - FRONT BASKET LOCK (16) - BASKET

1

1349869C1

FRAME

- basket, see page 9D-32

1шт.

2

1988855C3

ROD

- basket lock front (replaces rods 1988855C2 and 1988855C1)

1шт.

3

87264C3

SUPPORT

BRACKET - basket lock front

1шт.

4

492-11038

LOCK WASHER,3/8"

2шт.

5

425-106

NUT,3/8"-16, Cl 5

2шт.

6

1270025C2

LARGE PLATE

BAR - basket lock

1шт.

7

432-1228

COTTER PIN,3/16" x 1 3/4"

3/16" x 1 3/4"

2шт.

8

495-81190

WASHER,1.16" ID x 1.75" OD x 0.12" Thk

- flat, 1-5/32 x 1-3/4 x 1/8 inch

2шт.

9

586591R1

COTTER PIN

PIN - hair, 1/8 inch

1шт.

10

87509C2

CHAIN (AG)

CHAIN - basket lock pin

1шт.

14

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

1шт.

15

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

16

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

17

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

1шт.

18

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.
