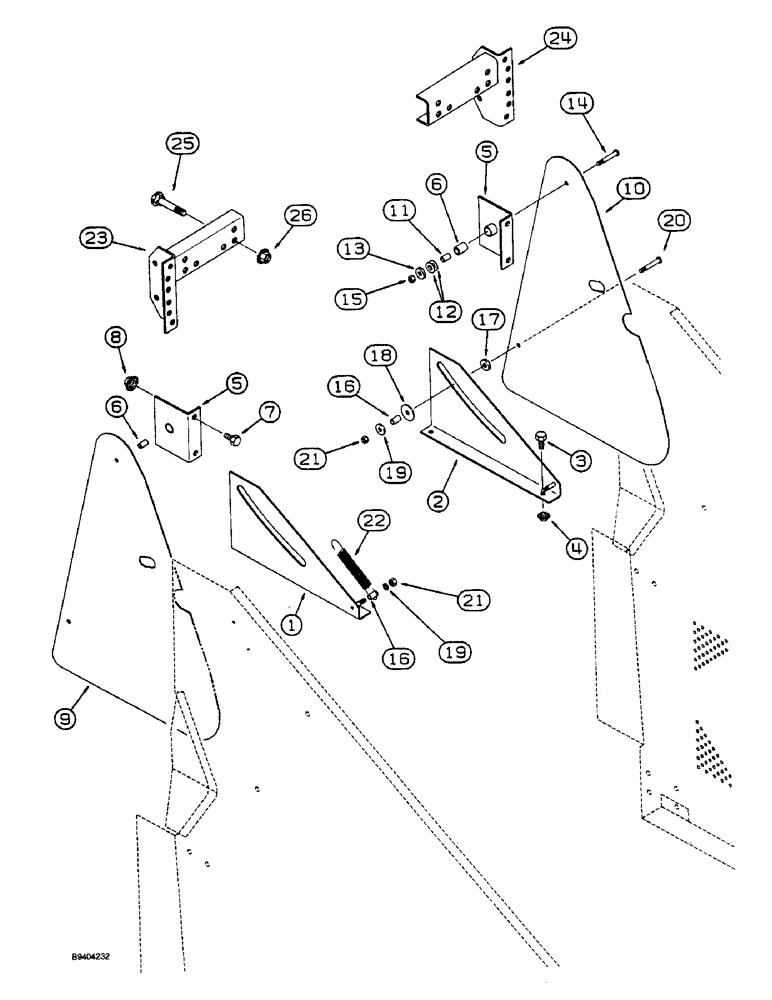

Запчасти Case IH 2055 (9D-25C) - BASKET DOOR, FILLER PANEL, 5 ROW WIDE (16) - BASKET

1

126077A1

SUPPORT

ANGLE - guide, front

1шт.

2

126078A1

SUPPORT

ANGLE - guide, rear

1шт.

3

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

5

127165A1

SUPPORT

BRACKET ASSEMBLY - guide

2шт.

6

216552C1

SPACER

BUSHING - bracket

1шт.

7

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

8

231-5146

FLANGE NUT,3/8"-16

4шт.

9

126088A2

LARGE PLATE

PLATE - guide, front

1шт.

10

140034A2

LARGE PLATE

PLATE - guide, rear

1шт.

11

1994765C2

SPACER

- 53/64 inch long, angle

2шт.

12

495-81020

WASHER,17/32" x 1" x .030"

- flat, 17/32 x 1 x 1/32 inch

4шт.

13

495-81117

WASHER,.344" x 1" x .120"

- flat, 11/32 x 1 x 7/64 inch

2шт.

14

164191C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1 1/2"

- slotted truss head, 5/16 NC x 1-1/2 inch

2шт.

15

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

16

618631R1

SPACER

- 1/4 x 11/16 inch

4шт.

17

495-81113

WASHER,0.34" ID x 0.75" OD x 0.18" Thk

- flat, 11/32 x 3/4 x 3/16 inch

2шт.

18

495-81119

WASHER,8.74mm ID x 31.75mm OD x 1.7mm Thk

- flat, 11/32 x 1-1/4 x 1/16 inch

2шт.

19

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

20

164191C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1 1/2"

- slotted truss head, 5/16 NC x 1-1/2 inch

2шт.

21

231-4144

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

4шт.

22

126557A1

SPRING

- guide sheet

2шт.

23

126072A1

SUPPORT

- front

1шт.

24

126073A1

SUPPORT

- rear

1шт.

25

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

10шт.

26

231-5146

FLANGE NUT,3/8"-16

10шт.
