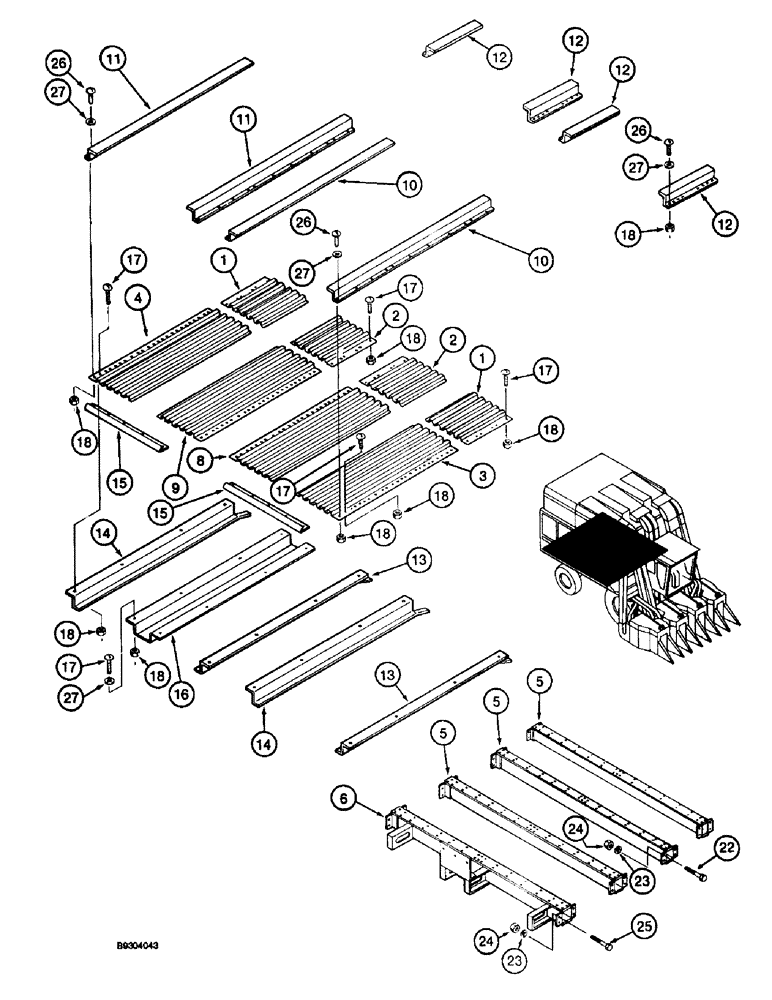

Запчасти Case IH 2055 (9D-20) - BASKET FLOOR (16) - BASKET

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

BASKET ASSEMBLY - cotton picker, complete

1шт.

See page 9D-2 for complete assembly. See pages 9D-4 - 9D-26 for additional components of basket assembly. The basket assembly does not include hydraulic components, basket door or basket unloading parts.

1шт.

1

1260260C1

PANEL

- floor, outer, short

2шт.

2

1260274C1

PANEL

- floor, inner, short

2шт.

3

1260269C2

PANEL

- floor, inner, front

1шт.

4

1260270C2

PANEL

- floor, inner, rear

1шт.

5

1260275C3

SUPPORT

STRUT - floor, center (replaces struts 1260275C1 and 1260275C2)

3шт.

6

1260290C3

SUPPORT

STRUT - floor, right-hand (replaces strut 1260290C2)

1шт.

8

1262484C2

PANEL

- floor, inner, center, front

1шт.

9

1262485C2

PANEL

- floor, inner, center, rear

1шт.

10

1270076C1

GUIDE

- bracket, basket chain, front

2шт.

11

1270077C1

GUIDE

- bracket, basket chain, rear

2шт.

12

1270078C1

GUIDE

- bracket, basket chain, short

4шт.

13

1339112C1

ANGLE

BAR - support, lower front

2шт.

14

1339113C1

ANGLE

BAR - support, lower rear

2шт.

15

1278298C1

GUIDE

- chain

2шт.

16

1278058C1

SUPPORT

- center

1шт.

17

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted truss head, 5/16 NC x 1 inch

1шт.

18

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

22

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

23

492-11038

LOCK WASHER,3/8"

1шт.

24

425-106

NUT,3/8"-16, Cl 5

1шт.

25

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

26

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

1шт.

27

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

Выбрано товаров: 25
