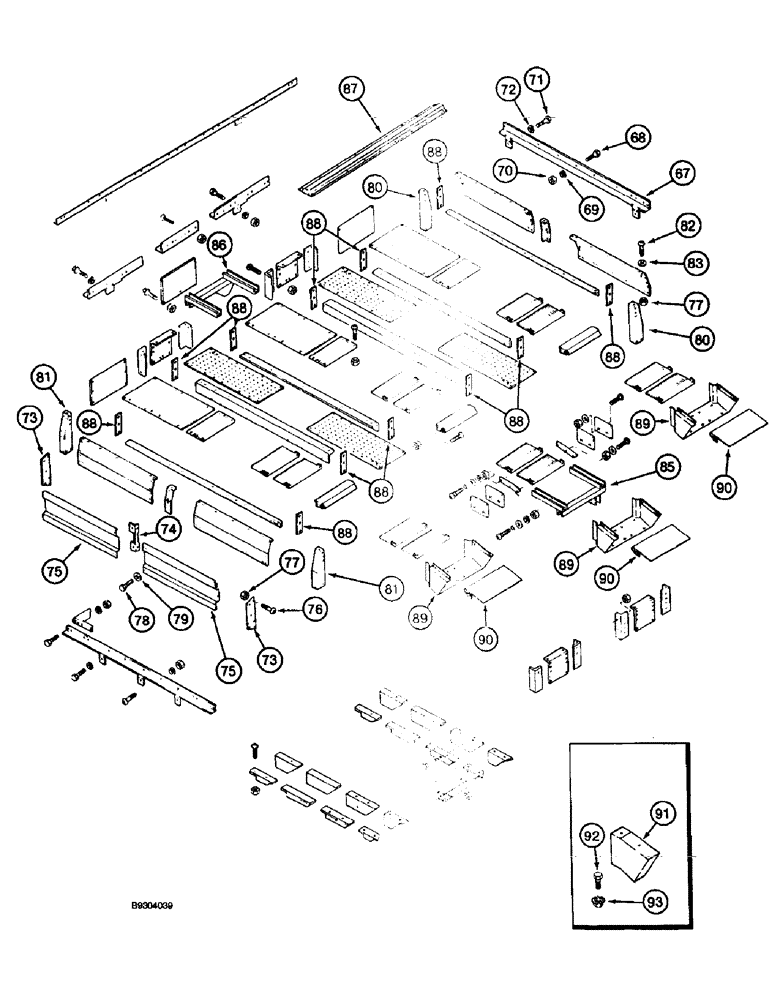

Запчасти Case IH 2055 (9D-10) - BASKET TOP (16) - BASKET

67

1288785C3

SUPPORT

BRACKET - side, left-hand

1шт.

68

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

69

492-11038

LOCK WASHER,3/8"

1шт.

70

425-106

NUT,3/8"-16, Cl 5

1шт.

71

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

72

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

73

1278767C1

LARGE PLATE

END - channel

2шт.

74

1278768C1

SUPPORT

- center

1шт.

75

1278766C2

CONDUIT

CHANNEL - side

2шт.

REF#75 CASE INTERNATIONAL 2055 DECAL ATTACHES TO THIS CHANNEL. 3/12/96

1шт.

76

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch

1шт.

77

231-5146

FLANGE NUT,3/8"-16

1шт.

78

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

1шт.

79

495-81119

WASHER,8.74mm ID x 31.75mm OD x 1.7mm Thk

- flat, 11/32 x 1-1/4 x 1/16 inch

1шт.

80

1260278C3

LARGE PLATE

PLATE - end, left-hand (replaces plate 1260278C2)

2шт.

81

1260279C3

LARGE PLATE

PLATE - end, right-hand (replaces plate 1260279C2)

2шт.

82

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, special, 3/8 NC x 3/4 inch

1шт.

83

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

85

1982680C1

SUPPORT

CHANNEL - cylinder mount, front

1шт.

86

1982681C1

SUPPORT

CHANNEL - mount, rear

1шт.

87

87530C1

SUPPORT

- top

1шт.

88

1270282C1

LARGE PLATE

BAR - spacer

12шт.

89

1545999C2

HOUSING

HOOD - basket

3шт.

90

1546376C1

LARGE PLATE

PLATE - grate filler

3шт.

91

1546380C2

FUNNEL

FILLER - hood, 4 row only

1-2шт.

92

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

2-4шт.

93

231-5146

FLANGE NUT,3/8"-16

2-4шт.
