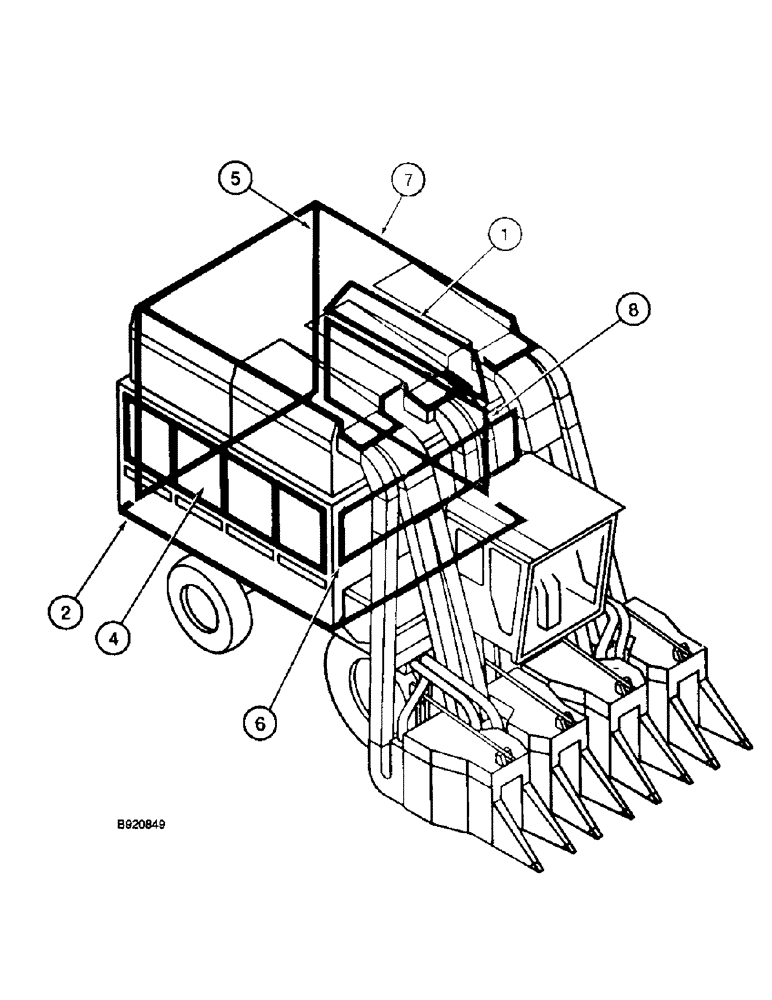

Запчасти Case IH 2055 (9D-02) - MAJOR BASKET ASSEMBLIES (16) - BASKET

NSS

NOT SOLD SEPARAT

BASKET ASSEMBLY - cotton picker

1шт.

The basket assembly does not include the door or top assemblies. These assemblies must be ordered as required. The hydraulic valves, cylinders, conveyor motor, etc., are not included. These parts must also be ordered as required.

1шт.

1

NSS

NOT SOLD SEPARAT

BASKET ASSEMBLY - left-hand side, see page 9D-18

1шт.

2

NSS

NOT SOLD SEPARAT

BASKET ASSEMBLY - floor, see page 9D-20

1шт.

4

NSS

NOT SOLD SEPARAT

BASKET ASSEMBLY - right-hand side, see page 9D-12

1шт.

5

NSS

NOT SOLD SEPARAT

BASKET ASSEMBLY - rear, see page 9D-14

1шт.

6

NSS

NOT SOLD SEPARAT

BASKET ASSEMBLY - front, see page 9D-16

1шт.

7

NSS

NOT SOLD SEPARAT

BASKET ASSEMBLY - top, see pages 9D-4 - 9D-10

1шт.

8

NSS

NOT SOLD SEPARAT

DOOR ASSEMBLY - basket, see page 9D-22 - 9D-26

1шт.
